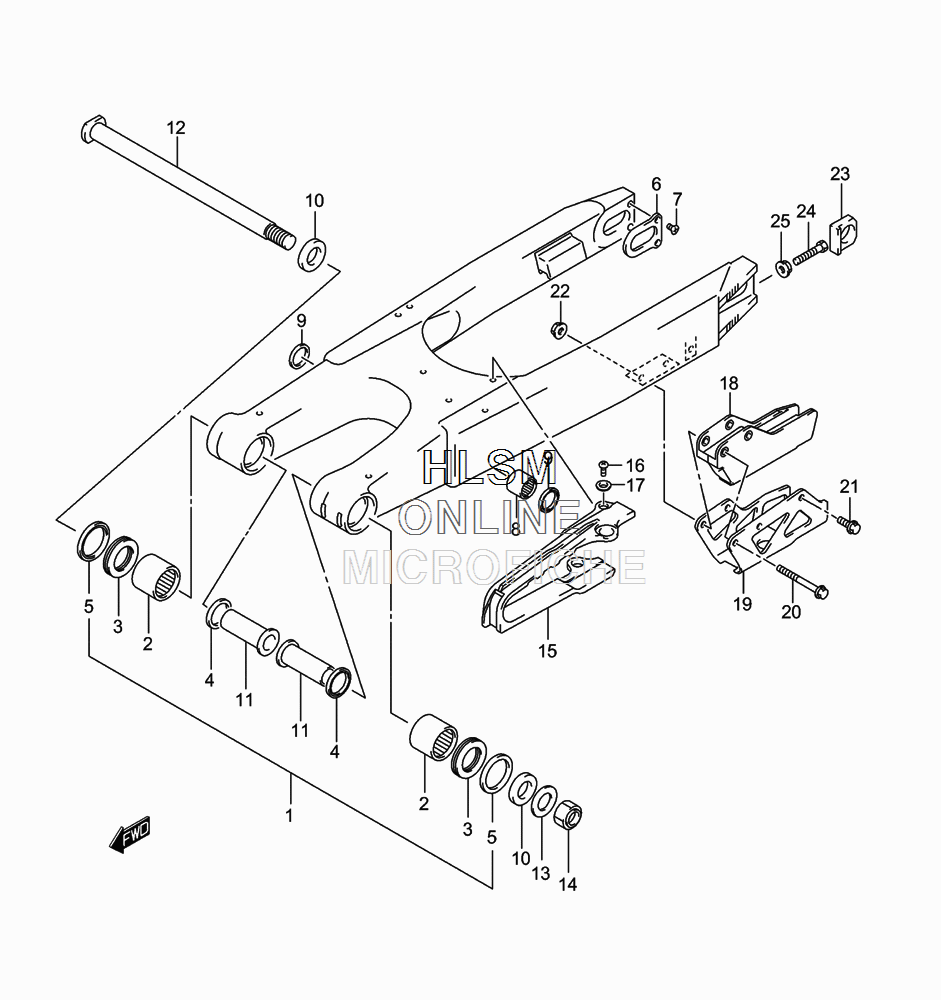

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM250K3 - 2003 года выпуска
-
№АртикулНазвание
-
161000-37F10 SWINGING ARM ASSY, REAR (INCL. 2-8)SWINGING ARM ASSY, REAR (INCL. 2-8)
-
209263-22017 BEARING, PIVOT (22X29X30)BEARING, PIVOT (22X29X30)
-
309263-22064 BEARING, OUTER (22X35X2)BEARING, OUTER (22X35X2)
-
409285-22001 SEAL, INNER (22X29X4)SEAL, INNER (22X29X4)
-
561262-36E00 SEAL, OUTER (29.2X37X4)SEAL, OUTER (29.2X37X4)
-
661128-37E20 PLATE, PR SWINGINGARM, REARPLATE, PR SWINGINGARM, REAR
-
702122-04103 SCREW (4X10)SCREW (4X10)
-
809263-20086 BEARING, ROD (20X27X15)BEARING, ROD (20X27X15)
-
962624-14500 SEAL, REAR (19X27X4)SEAL, REAR (19X27X4)
-
1061251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
1161252-37F00 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
1261211-28C00 SHAFT, PIVOTSHAFT, PIVOT
-
1308322-01163 WASHERWASHER
-
1409159-16007 NUTNUT
-
1561273-37F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1602112-05083 SCREWSCREW
-
1709169-05022 WASHERWASHER
-
1861341-36E30 GUIDE, CHAINGUIDE, CHAIN
-
1961342-37F00 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
2009103-06242 BOLT, UPPERBOLT, UPPER
-
2109103-06233 BOLT, REARBOLT, REAR
-
2208316-10063 NUTNUT
-
2361445-37F10 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2409100-08287 BOLT (8X50)BOLT (8X50)
-
2509159-08034 NUTNUT
