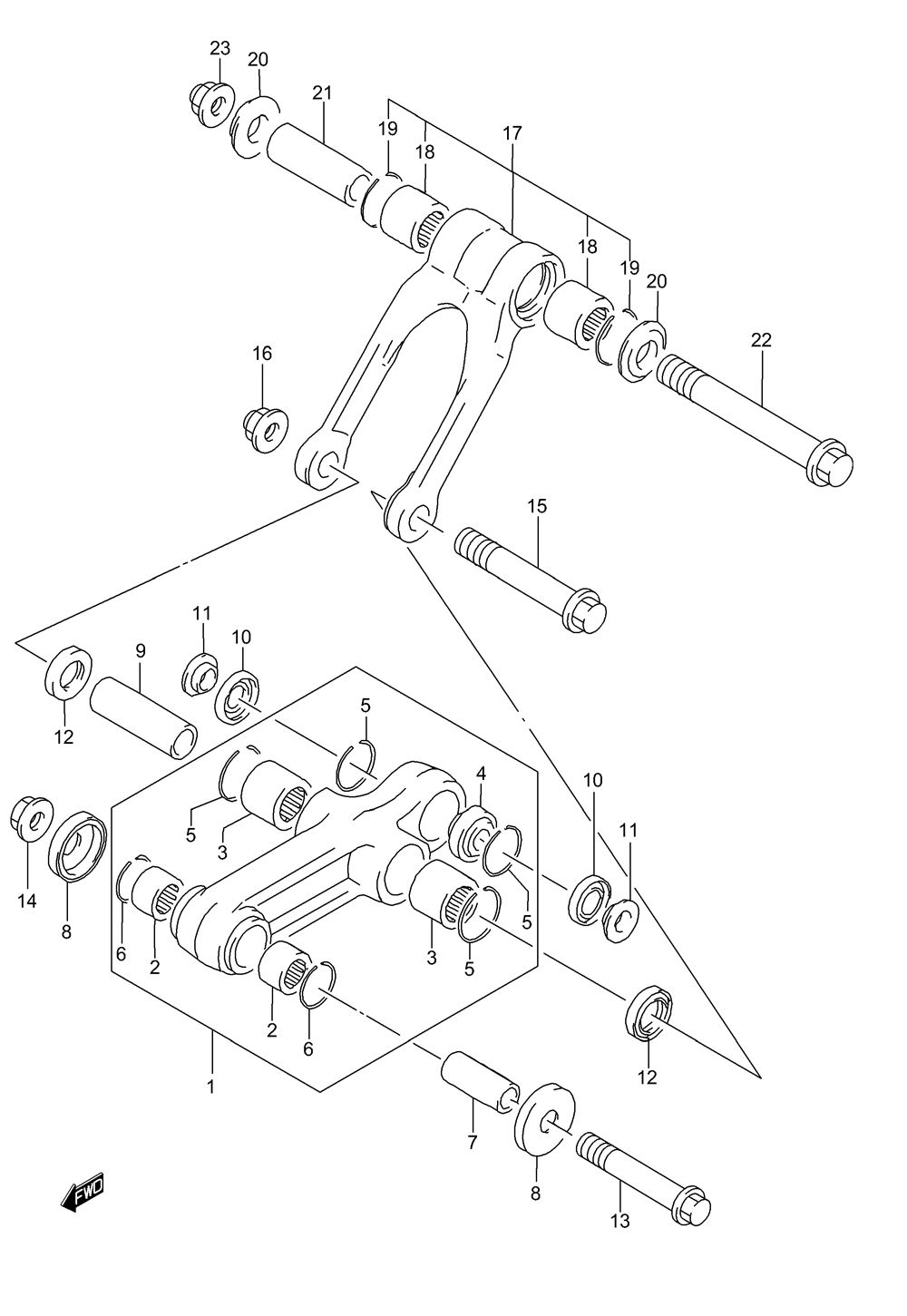

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM85LK3 - 2003 года выпуска
-
№АртикулНазвание
-
162600-02840 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-14027 BEARING, FRONT (14X20X12)BEARING, FRONT (14X20X12)
-
309263-17039 BEARING, CENTER (17X24X20)BEARING, CENTER (17X24X20)
-
462175-00B00 BEARING, REAR (10X24X14.5)BEARING, REAR (10X24X14.5)
-
562657-34A01 RING, STOPPERRING, STOPPER
-
609381-20004 RING, STOPPER FRONTRING, STOPPER FRONT
-
762317-02B40 SPACER, FRONT (10X14X37)SPACER, FRONT (10X14X37)
-
862162-03B00 DUST SEAL, FRONTDUST SEAL, FRONT
-
962626-02B40 SPACER, CENTER (12X17X54)SPACER, CENTER (12X17X54)
-
1062226-28C00 DUST SEAL, REARDUST SEAL, REAR
-
1162684-28C10 SPACER, REAR (10X20X5.75)SPACER, REAR (10X20X5.75)
-
1209285-17001 SEAL, CENTER (17X24X3)SEAL, CENTER (17X24X3)
-
1362658-02B40 BOLT, FRONT (10X64)BOLT, FRONT (10X64)
-
1409159-10058 NUTNUT
-
1562621-02B40 SHAFT, CENTER (12X87)SHAFT, CENTER (12X87)
-
1608319-31128 NUTNUT
-
1762600-03850 ROD SET, CUSHION LEVERROD SET, CUSHION LEVER
-
1809263-17039 BEARING (17X24X20)BEARING (17X24X20)
-
1962657-34A01 RING, STOPPERRING, STOPPER
-
2062647-02B40 SPACER, ROD (12X31X4)SPACER, ROD (12X31X4)
-
2162646-02B40 SPACER, ROD (12X17X50)SPACER, ROD (12X17X50)
-
2262622-02B40 BOLT (12X115)BOLT (12X115)
-
2308319-31128 NUTNUT
