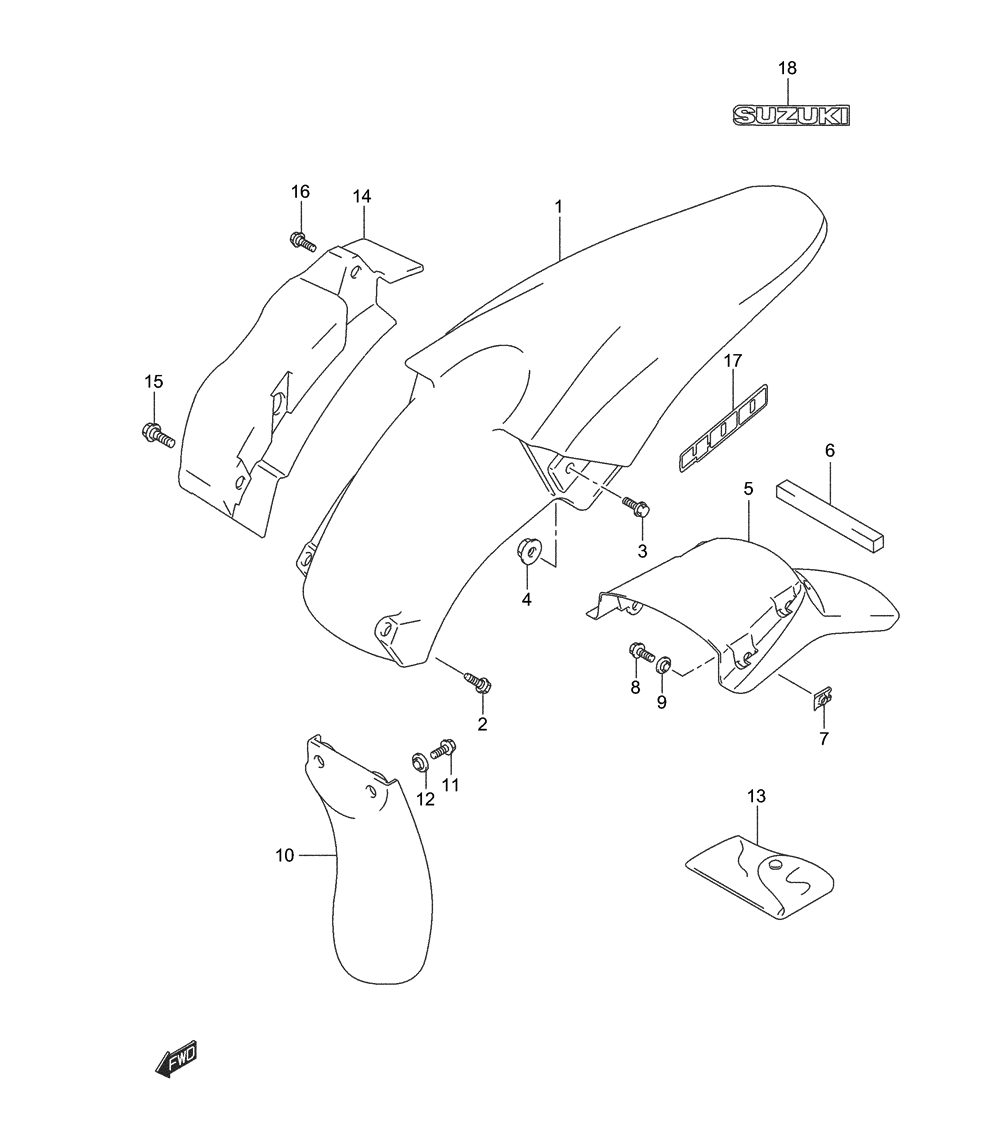

FENDER - REAR для Suzuki DR-Z400EK4 - 2004 года выпуска
-
№АртикулНазвание
-
163113-29F10-YU1 FENDER, REAR (YELLOW, YU1) (EXCEPT CALIF)FENDER, REAR (YELLOW, YU1) (EXCEPT CALIF)
-
163113-29F30-YU1 FENDER, REAR (YELLOW, YU1) (CALIF ONLY)FENDER, REAR (YELLOW, YU1) (CALIF ONLY)
-
209111-06066 BOLT, FRONTBOLT, FRONT
-
309111-06081 BOLT, CENTERBOLT, CENTER
-
408319-31063 NUT, CENTERNUT, CENTER
-
563311-29F00 EXTENSION, REAR FENDER (EXCEPT CALIF)EXTENSION, REAR FENDER (EXCEPT CALIF)
-
563311-29F10 EXTENSION, REAR FENDER (CALIF ONLY)EXTENSION, REAR FENDER (CALIF ONLY)
-
663312-29F00 CUSHIONCUSHION
-
709148-05021 NUT, FITTINGNUT, FITTING
-
801550-05103 BOLTBOLT
-
909169-05021 WASHERWASHER
-
1063411-29F00 MUDGUARD, FRONTMUDGUARD, FRONT
-
1101547-06163 BOLTBOLT
-
1209169-06045 WASHERWASHER
-
1309813-00039 OPEN SPANNEROPEN SPANNER
-
1463114-29F00 MUDGUARD, REAR FENDER RIGHT HANDMUDGUARD, REAR FENDER RIGHT HAND
-
1509111-06081 BOLT, LOWERBOLT, LOWER
-
1663161-43E00 BOLT, UPPERBOLT, UPPER
-
1768171-29F00-GY8 EMBLEM, REAR FENDER ''400''EMBLEM, REAR FENDER ''400''
-
1868721-13A00-GY8 EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
