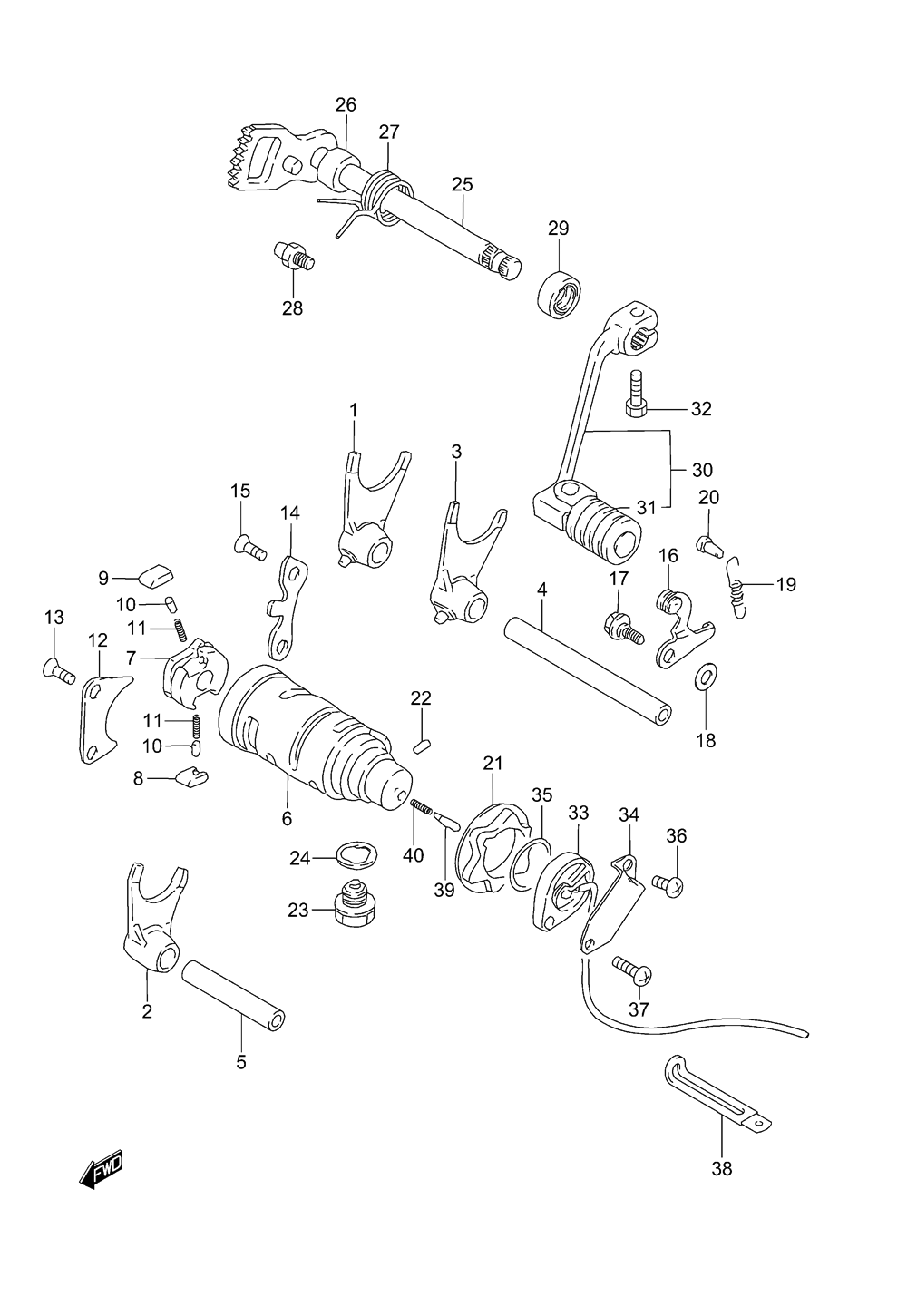

GEAR SHIFTING для Suzuki DR200SEK4 - 2004 года выпуска
-
№АртикулНазвание
-
125211-42A02 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-42A02 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-42A02 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-16701 SHAFT, GEAR SHIFT FORK, NO.1SHAFT, GEAR SHIFT FORK, NO.1
-
525421-35410 SHAFT, GEAR SHIFT FORK, NO.2SHAFT, GEAR SHIFT FORK, NO.2
-
625310-42A00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
725322-31310 GEAR, GEAR SHIFT CAM DRIVENGEAR, GEAR SHIFT CAM DRIVEN
-
825323-34201 POLE, GEAR SHIFT NO.1POLE, GEAR SHIFT NO.1
-
925324-34201 POLE, GEAR SHIFT NO.2POLE, GEAR SHIFT NO.2
-
1009261-05003 ROLLER (5X8)ROLLER (5X8)
-
1109440-04003 SPRINGSPRING
-
1225331-30001 LIFTER, GEAR SHIFT POLELIFTER, GEAR SHIFT POLE
-
1302122-06123 SCREWSCREW
-
1425341-05200 GUIDE, GEAR SHIFT CAMGUIDE, GEAR SHIFT CAM
-
1502122-06123 SCREWSCREW
-
1625350-42A01 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1709111-06054 BOLTBOLT
-
1808211-06141 WASHERWASHER
-
1909443-10036 SPRINGSPRING
-
2009223-04001 HOOKHOOK
-
2125381-04700 PLATE, GEAR SHIFT CAM STOPPERPLATE, GEAR SHIFT CAM STOPPER
-
2204221-04069 PINPIN
-
2309247-14012 PLUGPLUG
-
2409168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2525510-05201 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
2609180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
2709444-26023 SPRINGSPRING
-
2825671-01011 STOPPER, RETURN SPRINGSTOPPER, RETURN SPRING
-
2909285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
3025600-42A00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3125652-03D00 RUBBER, GEAR SHIFT PEDALRUBBER, GEAR SHIFT PEDAL
-
3201500-06203 BOLTBOLT
-
3337720-42A30 BASE ASSY, NEUTRAL SWITCHBASE ASSY, NEUTRAL SWITCH
-
3437721-42A00 PROTECTOR, GEAR SHIFT SWITCHPROTECTOR, GEAR SHIFT SWITCH
-
3509280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
3602112-05083 SCREWSCREW
-
3702112-05163 SCREWSCREW
-
3809404-06429 CLAMP (L:45)CLAMP (L:45)
-
3909209-05011 CONTACTCONTACT
-
4009440-04010 SPRINGSPRING
