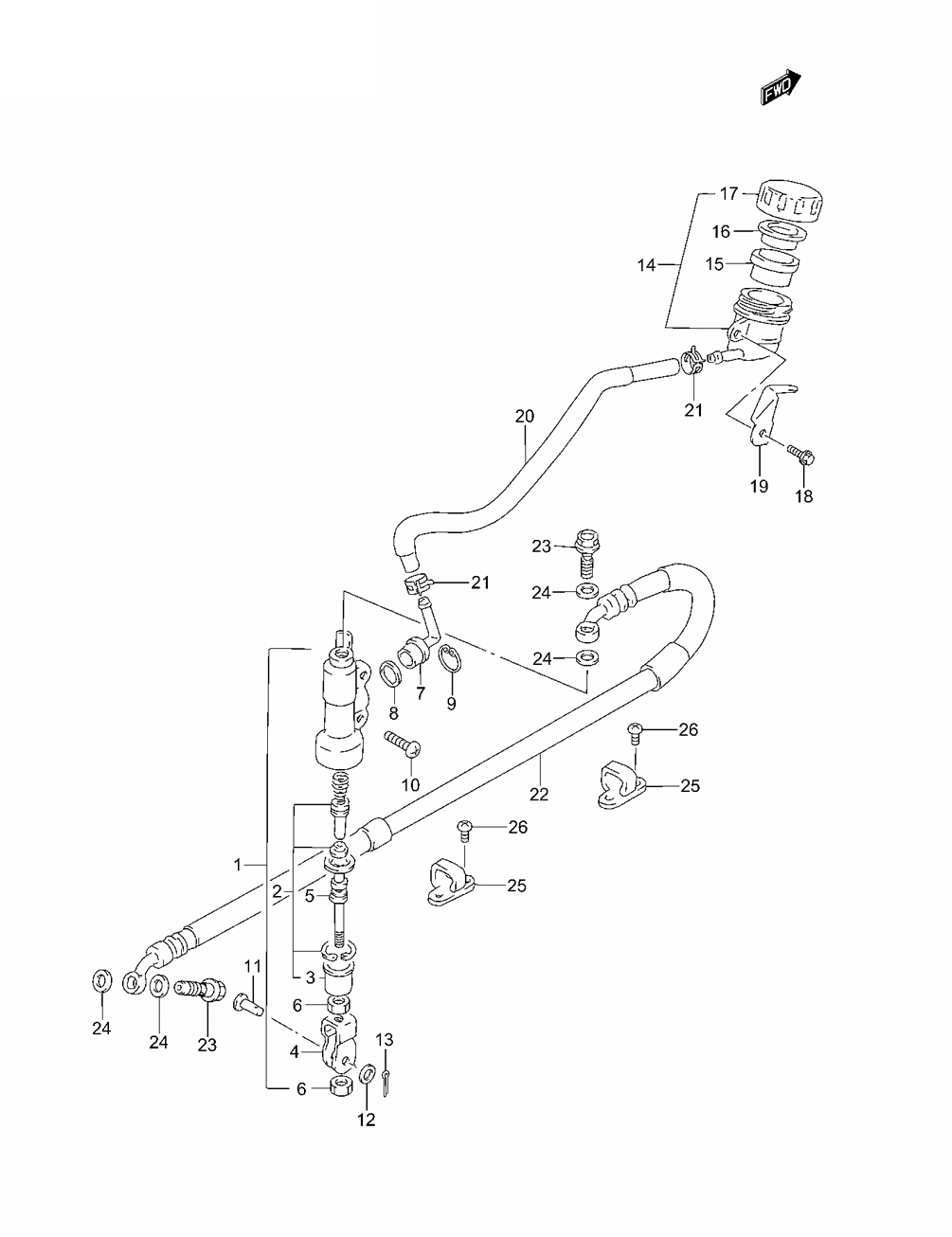

BRAKE - REAR MASTER CYLINDER для Suzuki DR650SEK4 - 2004 года выпуска
-
№АртикулНазвание
-
169600-32E00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-04820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-13E00 YOKEYOKE
-
569670-27A30 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769672-00B20 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
969674-00B20 CIRCLIPCIRCLIP
-
1009139-06067 BOLT (6X16)BOLT (6X16)
-
1109200-08048 PINPIN
-
1209160-08119 WASHERWASHER
-
1304111-20158 COTTER PINCOTTER PIN
-
1469740-03D00 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1569667-00B20 DIAPHRAGMDIAPHRAGM
-
1669668-00B20 PLATEPLATE
-
1769669-03D00 CAPCAP
-
1801550-06163 BOLTBOLT
-
1969743-14D10 GUARD, TANK CAPGUARD, TANK CAP
-
2069730-32E00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2109401-12404 CLAMP, HOSECLAMP, HOSE
-
2269480-32E00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2309360-10042 BOLT, UNION (10X1.25X22)BOLT, UNION (10X1.25X22)
-
2409161-10009 WASHERWASHER
-
2561196-27C30 GUIDE, BRAKE HOSE (HOLE 1-5.5)GUIDE, BRAKE HOSE (HOLE 1-5.5)
-
2602142-05103 SCREWSCREW
