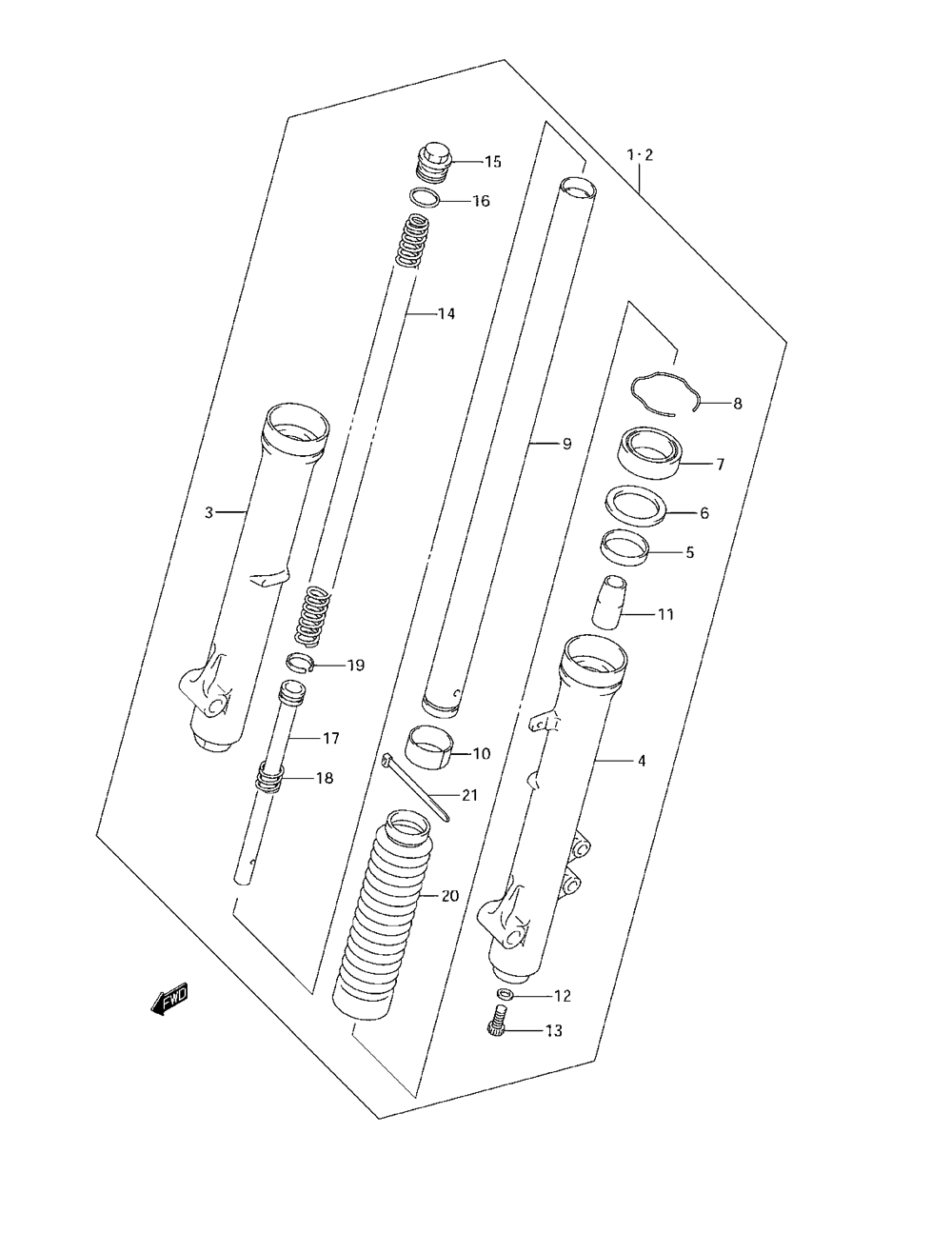

SUSPENSION - FRONT FORK для Suzuki DR-Z125LK5 - 2005 года выпуска
-
№АртикулНазвание
-
151103-08G20 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251104-08G20 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
351130-08G10 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
451140-08G10 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
551152-43EC0 BUSH, GUIDEBUSH, GUIDE
-
651168-43EC0 SPACER, SEALSPACER, SEAL
-
751153-48420 SEAL, OILSEAL, OIL
-
851156-48730 RING, STOPPERRING, STOPPER
-
951110-08G00 TUBE, INNERTUBE, INNER
-
1051121-08G00 BUSH, SLIDEBUSH, SLIDE
-
1151195-48000 PIECE, OIL LOCKPIECE, OIL LOCK
-
1251148-36011 GASKETGASKET
-
1351147-48130 BOLT, CENTERBOLT, CENTER
-
1451171-08G00 SPRING, FRONTSPRING, FRONT
-
1551351-48000 BOLT, FORKBOLT, FORK
-
1651181-25030 O RINGO RING
-
1751146-08G00 CYLINDERCYLINDER
-
1851177-08G00 SPRING, REBOUNDSPRING, REBOUND
-
1951196-48000 RINGRING
-
2051571-08G00 BOOTBOOT
-
2151575-08G00 BANDBAND
