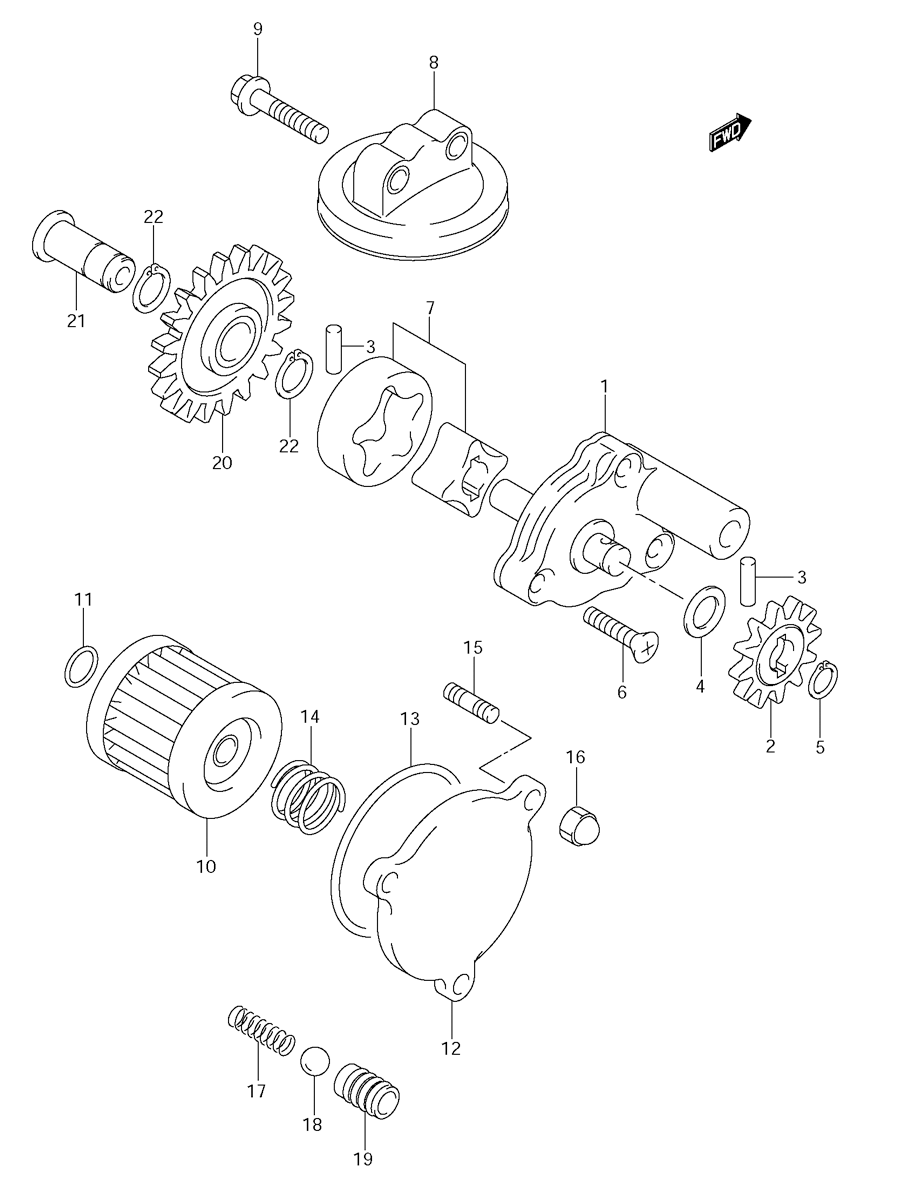

OIL PUMP для Suzuki DR-Z400SMK5 - 2005 года выпуска
-
№АртикулНазвание
-
116400-29F00 PUMP ASSEMBLY, ENGINE OIL NO.1PUMP ASSEMBLY, ENGINE OIL NO.1
-
216331-29F01 GEAR, DRIVENGEAR, DRIVEN
-
309261-04009 PINPIN
-
409181-10158 WASHERWASHER
-
508331-31106 CIRCLIPCIRCLIP
-
602122-0625B SCREWSCREW
-
716410-29F00 ROTOR SET, OIL PUMP NO.2ROTOR SET, OIL PUMP NO.2
-
816520-29F00 STRAINER, OIL PUMPSTRAINER, OIL PUMP
-
901550-0625B BOLTBOLT
-
1016510-29F00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1109280-13004 O RING (DIAMETER: 1.9,INSIDE DIAMETER: 13.0)O RING (DIAMETER: 1.9,INSIDE DIAMETER: 13.0)
-
1216512-47E00 CAP, OIL FILTERCAP, OIL FILTER
-
1309280-54001 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 52.6)O RING (DIAMETER: 2.4,INSIDE DIAMETER: 52.6)
-
1409440-18002 SPRINGSPRING
-
1509108-06123 BOLTBOLT
-
1608313-1006B NUTNUT
-
1709440-07073 SPRINGSPRING
-
1806111-12004 BALLBALL
-
1916442-29F00 SEAT, OIL CHECK VALVESEAT, OIL CHECK VALVE
-
2016321-29F00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
2116322-29F00 SHAFTSHAFT
-
2208331-31126 CIRCLIPCIRCLIP
