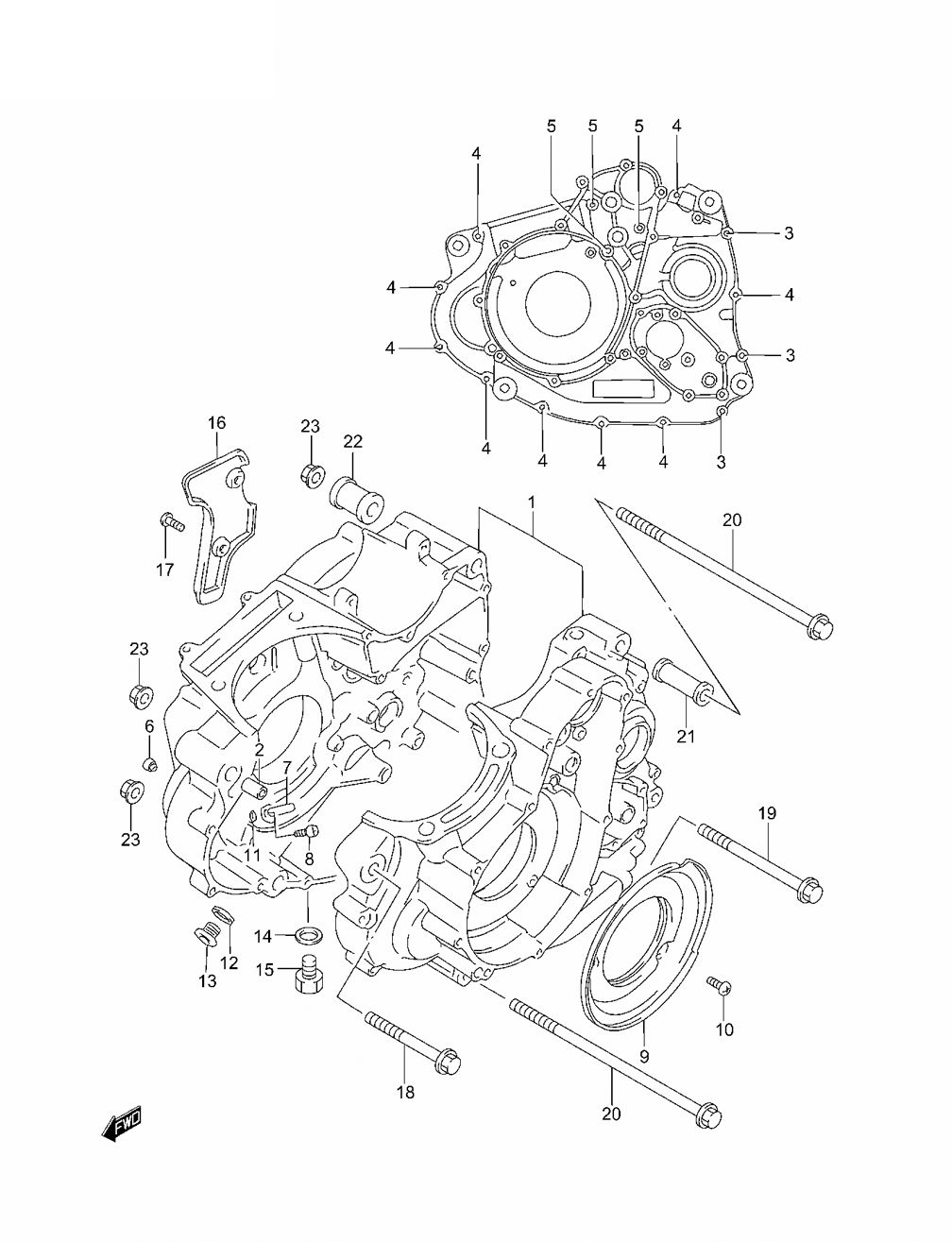

CRANKCASE для Suzuki DR650SEK5 - 2005 года выпуска
-
№АртикулНазвание
-
111300-32880 CRANKCASE SETCRANKCASE SET
-
209202-10006 PINPIN
-
309103-06261 BOLT (L:60)BOLT (L:60)
-
409103-06215 BOLT (L:40)BOLT (L:40)
-
501547-06803 BOLT (6X80)BOLT (6X80)
-
611180-43410 JET, OIL GALLERYJET, OIL GALLERY
-
711390-04F00 JET, PISTON COOLINGJET, PISTON COOLING
-
809106-06075 BOLT (6X12)BOLT (6X12)
-
911323-32E00 SEPARATOR, OIL BREATHERSEPARATOR, OIL BREATHER
-
1002112-06123 SCREWSCREW
-
1109280-04004 O RING (D:1.2 ID:4.0)O RING (D:1.2 ID:4.0)
-
1209168-14002 GASKET, OIL GALLERY PLUGGASKET, OIL GALLERY PLUG
-
1309248-14011 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1409168-14002 GASKET, OIL DRAIN PLUGGASKET, OIL DRAIN PLUG
-
1509247-14026 PLUG, OIL DRAINPLUG, OIL DRAIN
-
1611317-32E00 COVER, BREATHERCOVER, BREATHER
-
1702112-06123 SCREW, BREATHER COVERSCREW, BREATHER COVER
-
1809103-10110 BOLT (10X100)BOLT (10X100)
-
1909103-10237 BOLT (10X130)BOLT (10X130)
-
2009103-10239 BOLT (10X235)BOLT (10X235)
-
2111610-45410 SPACER (L:65)SPACER (L:65)
-
2211610-20C00 SPACER (L:27)SPACER (L:27)
-
2309159-10058 NUTNUT
