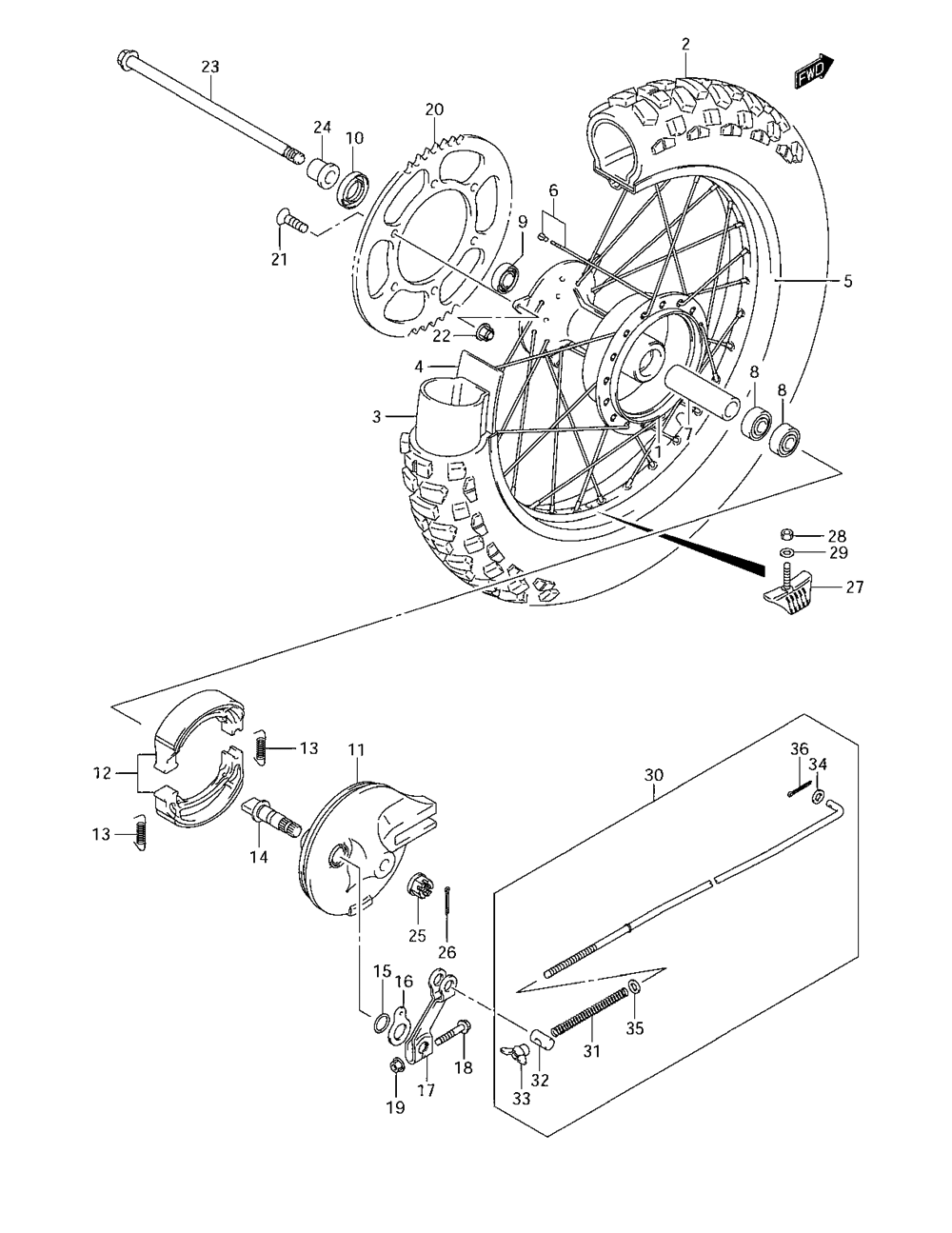

WHEEL - REAR для Suzuki DR-Z125K6 - 2006 года выпуска
-
№АртикулНазвание
-
164110-08G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265110-08G00 TIRE, REAR, 90/100-14 IRCTIRE, REAR, 90/100-14 IRC
-
365200-08G00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
465261-08G00 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
565311-08G20 RIM, REAR WHEEL (14X1.60)RIM, REAR WHEEL (14X1.60)
-
665320-08G20 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
709180-12151 SPACER (12.5X19X95.5)SPACER (12.5X19X95.5)
-
808143-62017 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
908123-63017 BEARING, LEFT HANDBEARING, LEFT HAND
-
1009283-20025 SEAL, REAR HUB BEARINGSEAL, REAR HUB BEARING
-
1164210-08G00 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1254401-43840 SHOE SET, BRAKESHOE SET, BRAKE
-
1309443-07044 SPRINGSPRING
-
1464441-13G00 CAM, BRAKECAM, BRAKE
-
1509280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
1654492-13G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1764451-08G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1801550-06353 BOLTBOLT
-
1908316-10063 NUTNUT
-
2064511-08G00 SPROCKET, REAR (NT:51)SPROCKET, REAR (NT:51)
-
2109120-08010 SCREWSCREW
-
2208319-31088 NUTNUT
-
2364711-08G10 AXLE, REARAXLE, REAR
-
2464751-08G00 SPACER, AXLESPACER, AXLE
-
2509159-12027 NUTNUT
-
2604111-25308 PIN, COTTERPIN, COTTER
-
2765270-08G00 STOPPER, BEADSTOPPER, BEAD
-
2808310-00083 NUT, BEAD STOPPERNUT, BEAD STOPPER
-
2908322-01083 WASHERWASHER
-
3043300-08G00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
3109440-09004 SPRINGSPRING
-
3209209-11002 PINPIN
-
3309144-06005 NUTNUT
-
3408322-01053 WASHER, FRONTWASHER, FRONT
-
3508322-01063 WASHER, REARWASHER, REAR
-
3604111-20208 COTTER PINCOTTER PIN
