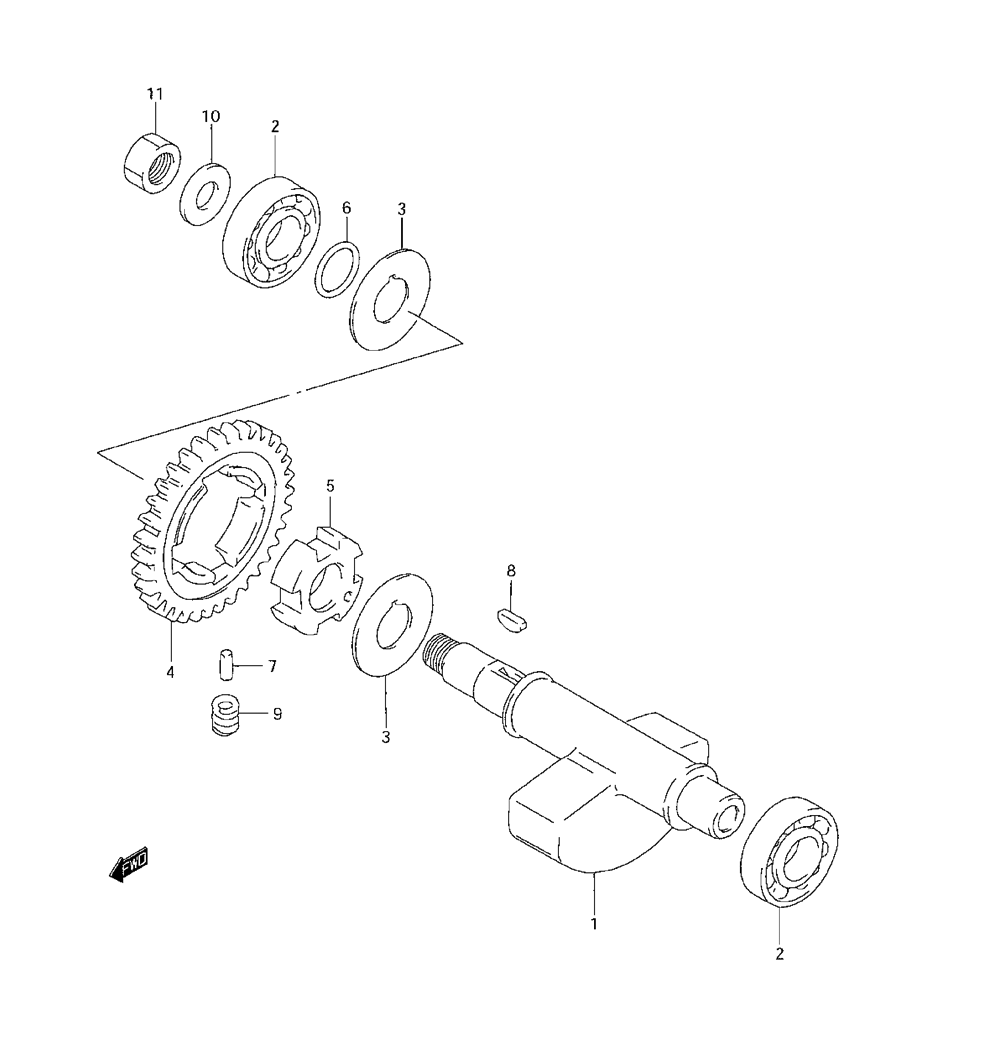

CRANK BALANCER для Suzuki DR-Z250K6 - 2006 года выпуска
-
№АртикулНазвание
-
112651-13E01 BALANCER, CRANKBALANCER, CRANK
-
209262-15027 BEARING (15X42X13)BEARING (15X42X13)
-
309166-16019 WASHER (16X38X2)WASHER (16X38X2)
-
412666-13E00 GEAR, CRANK BALANCER DRIVEN (NT:34)GEAR, CRANK BALANCER DRIVEN (NT:34)
-
512666-12E01 RACE, CRANK BALANCER DRIVEN GEAR INNERRACE, CRANK BALANCER DRIVEN GEAR INNER
-
609181-16130 SHIM (16X22X0.5)SHIM (16X22X0.5)
-
709202-04017 PIN (D:4.5,L:9.5)PIN (D:4.5,L:9.5)
-
808341-31039 KEYKEY
-
909440-09031 SPRINGSPRING
-
1008211-12255 WASHERWASHER
-
1109159-12048 NUTNUT
