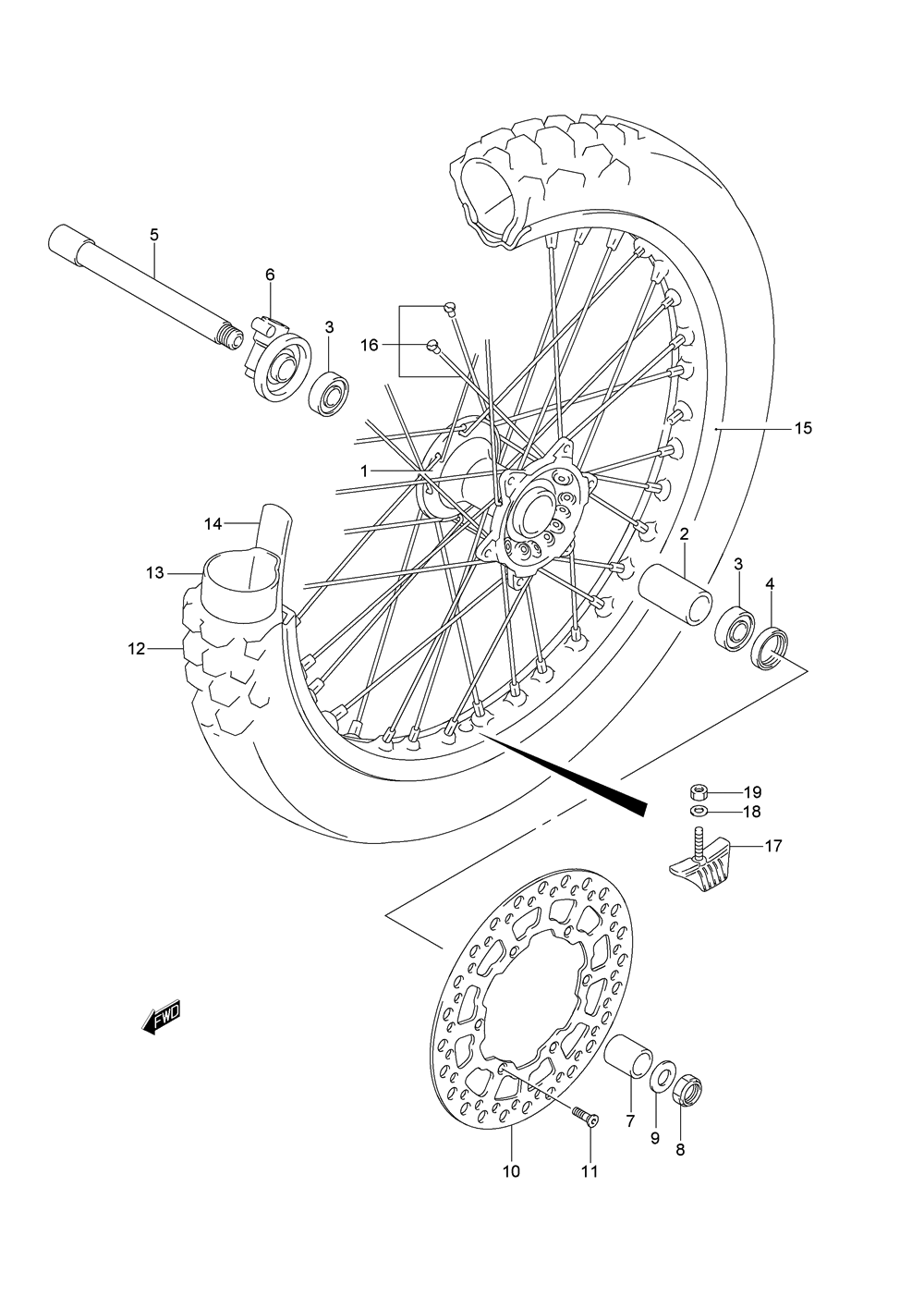

WHEEL - FRONT для Suzuki DR-Z400EK6 - 2006 года выпуска
-
№АртикулНазвание
-
154111-29F00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254731-36E10 SPACER, FRONT HUB (20.5X27.3X70)SPACER, FRONT HUB (20.5X27.3X70)
-
308130-69047 BEARINGBEARING
-
409283-25083 SEAL, LEFT HAND (25X37X6)SEAL, LEFT HAND (25X37X6)
-
554711-29F00 AXLE, FRONTAXLE, FRONT
-
654600-29F00 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
754751-36E10 SPACER, AXLE LEFT HAND (L:31)SPACER, AXLE LEFT HAND (L:31)
-
809159-18018 NUTNUT
-
909160-18034 WASHERWASHER
-
1059221-29F00 DISC, FRONT BRAKE LEFT HANDDISC, FRONT BRAKE LEFT HAND
-
1109120-06011 SCREW (6X17.5)SCREW (6X17.5)
-
1255110-29F00 TIRE, FRONT (80/100-21 51M) (DUNLOP)TIRE, FRONT (80/100-21 51M) (DUNLOP)
-
1355200-29F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1455261-44AF0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1555311-36E00 RIM, FRONT WHEEL (1.60X21)RIM, FRONT WHEEL (1.60X21)
-
1655320-36E00 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
1765270-08G00 STOPPER, BEADSTOPPER, BEAD
-
1808322-01083 WASHERWASHER
-
1908310-00083 NUTNUT
