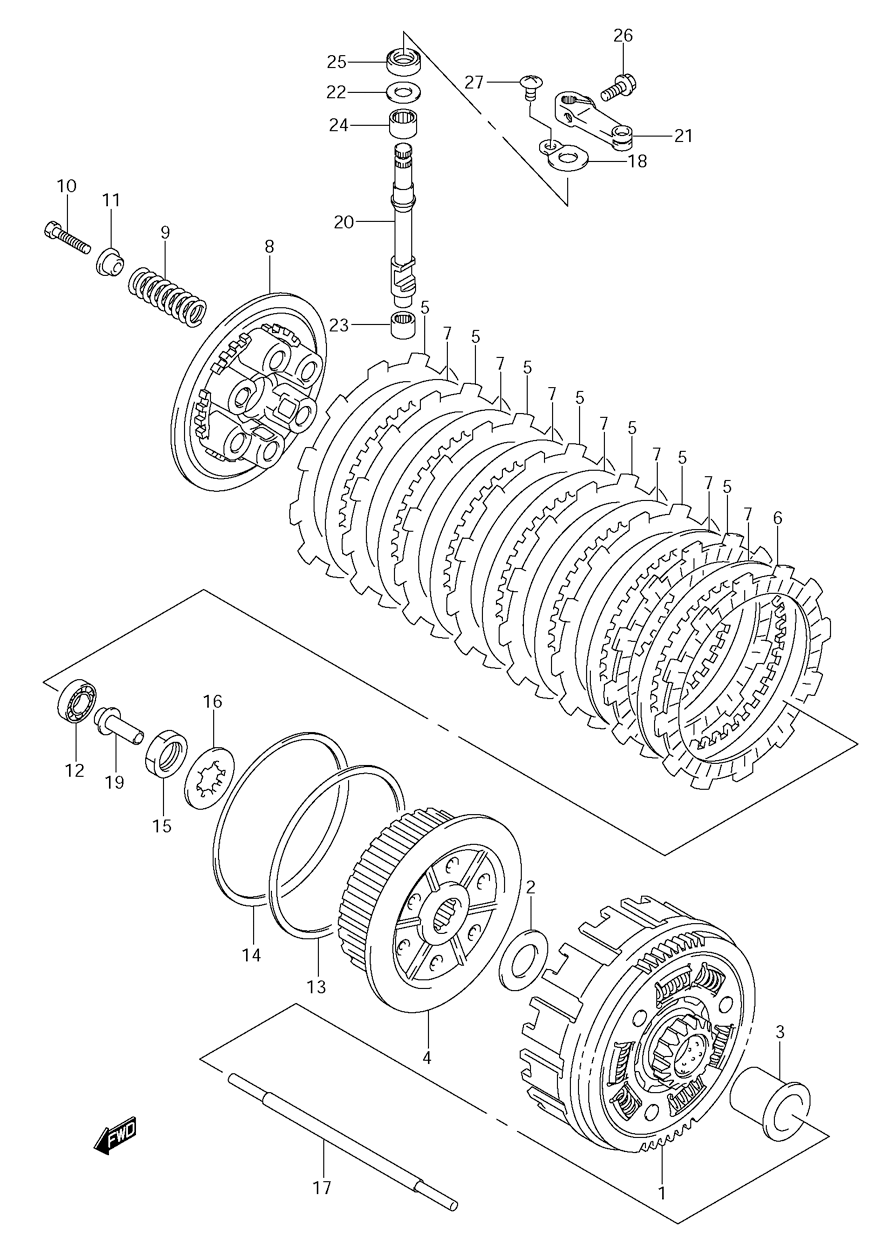

CLUTCH для Suzuki DR-Z400SMK6 - 2006 года выпуска
-
№АртикулНазвание
-
121200-29F10 GEAR ASSEMBLY, PRIMARY DRIVEN (74/16 TEETH)GEAR ASSEMBLY, PRIMARY DRIVEN (74/16 TEETH)
-
208211-22425 WASHERWASHER
-
321251-29F00 SPACER, PRIMARY DRIVENSPACER, PRIMARY DRIVEN
-
421410-29F00 HUB, SLEEVEHUB, SLEEVE
-
521441-29F00 PLATE, DRIVE NO.1PLATE, DRIVE NO.1
-
621442-29F00 PLATE, DRIVE NO.2PLATE, DRIVE NO.2
-
721451-44D00 PLATE, DRIVENPLATE, DRIVEN
-
821462-29F00 DISC, PRESSUREDISC, PRESSURE
-
921413-29F00 SPRINGSPRING
-
1007130-0630A BOLTBOLT
-
1121414-29F00 WASHERWASHER
-
1209262-12001 BEARING, PRESSURE DISKBEARING, PRESSURE DISK
-
1309160-00003 WASHERWASHER
-
1409164-00008 WASHER, WAVEWASHER, WAVE
-
1509140-20001 NUTNUT
-
1609167-22021 LOCK WASHERLOCK WASHER
-
1723110-29F00 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1823117-05200 RETAINER, CL RLSE OIL SEALRETAINER, CL RLSE OIL SEAL
-
1923121-29F00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2023122-29F00 CAM SHAFT, CLUTCH RELEASECAM SHAFT, CLUTCH RELEASE
-
2123271-20902 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2209181-10195 WASHER, CLUTCH RELEASEWASHER, CLUTCH RELEASE
-
2309263-10014 BEARING, CLUTCH RELEASE LOWBEARING, CLUTCH RELEASE LOW
-
2409263-12024 BEARING, CLUTCH RELEASE UPBEARING, CLUTCH RELEASE UP
-
2509282-10012 SEAL, CLUTCH RELEASE ARMSEAL, CLUTCH RELEASE ARM
-
2601547-0616A BOLT, CLUTCH RELEASE ARMBOLT, CLUTCH RELEASE ARM
-
2702142-0610A STOPPER, CL RLSE CAM SHAFTSTOPPER, CL RLSE CAM SHAFT
