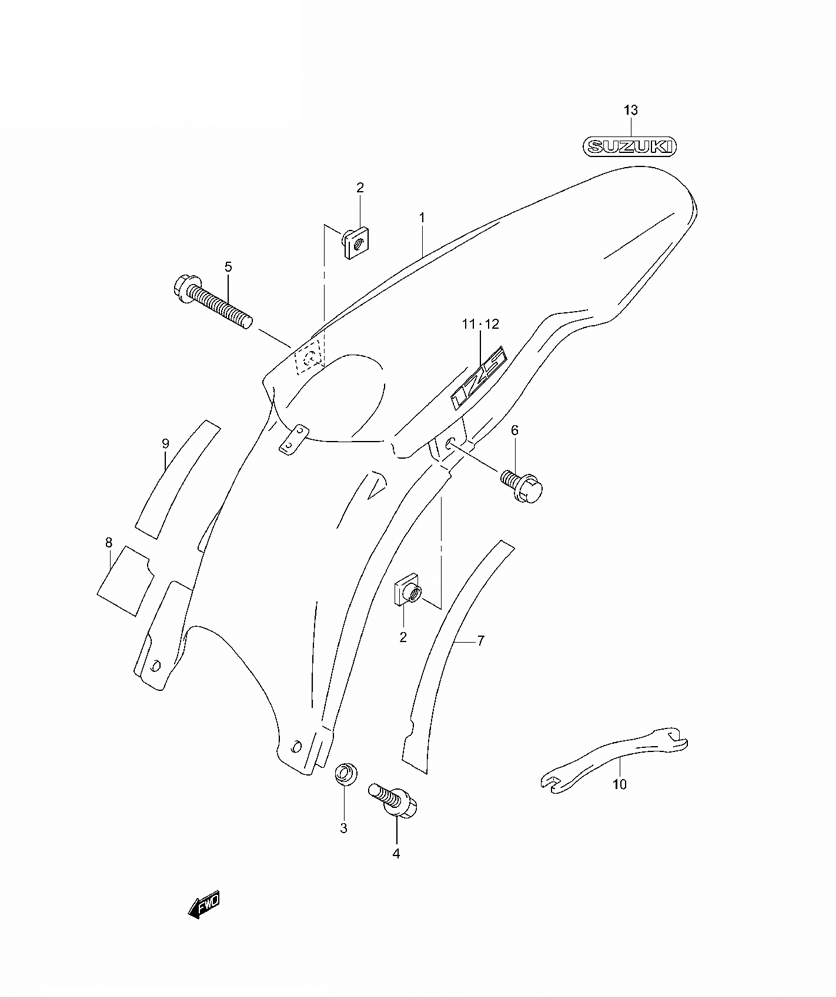

FENDER - REAR для Suzuki RM-125K6 - 2006 года выпуска
-
№АртикулНазвание
-
163111-37F00-YU1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
209152-06024 NUT, REAR FENDERNUT, REAR FENDER
-
369232-37F00 WASHERWASHER
-
409103-06235 BOLT, FRONTBOLT, FRONT
-
509103-06235 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
509103-06252 BOLT, RIGHT HAND (CANADA ONLY)BOLT, RIGHT HAND (CANADA ONLY)
-
609103-06234 BOLT, LEFT HANDBOLT, LEFT HAND
-
763114-37F00 CUSHION, NO.1CUSHION, NO.1
-
863114-37F10 CUSHION, NO.2CUSHION, NO.2
-
963114-37F20 CUSHION, NO.3CUSHION, NO.3
-
1009813-00134 OPEN SPANNER (6.4X6.8)OPEN SPANNER (6.4X6.8)
-
1168175-36F10-CFL TAPE, RIGHT HANDTAPE, RIGHT HAND
-
1268176-36F10-GY8 TAPE, LEFT HANDTAPE, LEFT HAND
-
1268176-36F10-CFL TAPE, LEFT HANDTAPE, LEFT HAND
-
1368721-13A00-CFL EMBLEMEMBLEM
