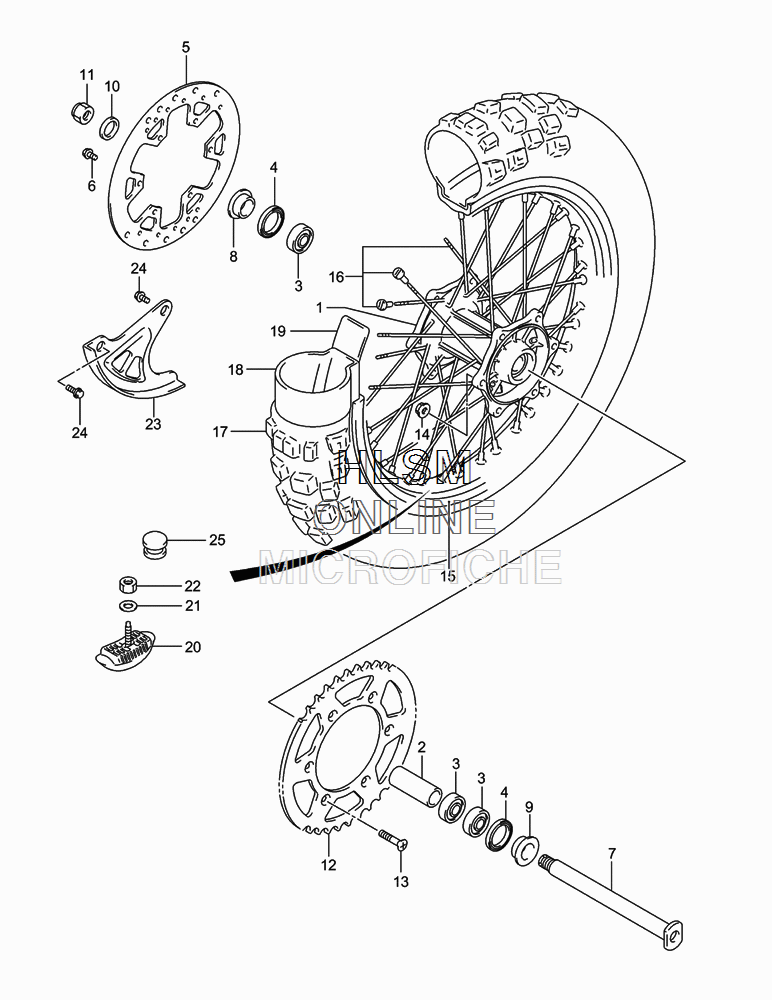

WHEEL - REAR для Suzuki RM-250K6 - 2006 года выпуска
-
№АртикулНазвание
-
164111-36E00 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-36E00 SPACER, BEARING (22.5X30X102)SPACER, BEARING (22.5X30X102)
-
309262-22033 BEARING (22X44X12)BEARING (22X44X12)
-
409283-30023 SEAL, DUST (30X44X7)SEAL, DUST (30X44X7)
-
569211-37F20 DISC, REAR BRAKEDISC, REAR BRAKE
-
609103-06280 BOLTBOLT
-
764711-37F00 AXLE, REARAXLE, REAR
-
864751-36E00 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
964751-36E00 SPACER, LEFT HANDSPACER, LEFT HAND
-
1009160-19022 WASHERWASHER
-
1109159-18007 NUTNUT
-
1264511-36E00 SPROCKET, REAR (NT:50)SPROCKET, REAR (NT:50)
-
1264511-28E00 SPROCKET, REAR (NT:49) (OPT)SPROCKET, REAR (NT:49) (OPT)
-
1264511-37E00 SPROCKET, REAR (NT:48) (OPT)SPROCKET, REAR (NT:48) (OPT)
-
1264511-40261 SPROCKET, REAR (NT:51) (OPT)SPROCKET, REAR (NT:51) (OPT)
-
1309120-08017 SCREW (8X30.5)SCREW (8X30.5)
-
1409159-08067 NUTNUT
-
1565311-37E00 RIM, REAR WHEEL (2.15X19)RIM, REAR WHEEL (2.15X19)
-
1665320-37F10 SPOKE SET, WHEELSPOKE SET, WHEEL
-
1765110-37F60 TIRE, REAR (110/90-19) (BRIDGESTONE) (US ONLY)TIRE, REAR (110/90-19) (BRIDGESTONE) (US ONLY)
-
1765110-37F40 TIRE, REAR (110/90-19) (BRIDGESTONE) (CANADA ONLY)TIRE, REAR (110/90-19) (BRIDGESTONE) (CANADA ONLY)
-
1865200-28C20 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1965261-28C20 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2065270-28E00 STOPPER, BEADSTOPPER, BEAD
-
2108322-01083 WASHERWASHER
-
2208310-00083 NUTNUT
-
2369231-37F10 COVER, REAR DISCCOVER, REAR DISC
-
2409116-06197 BOLTBOLT
-
2509250-08013 CAPCAP
