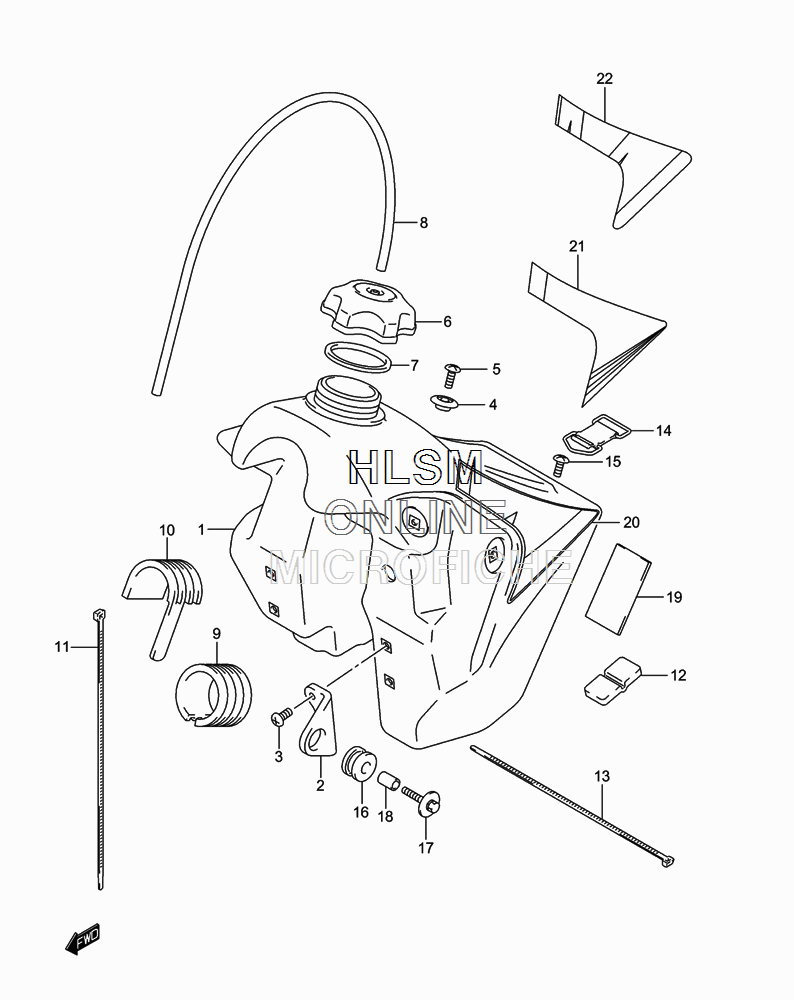

FUEL TANK для Suzuki RM-250ZK6 - 2006 года выпуска
-
№АртикулНазвание
-
144110-37F20-YU1 TANK, FUEL (YELLOW) (INCL. 2-5)TANK, FUEL (YELLOW) (INCL. 2-5)
-
244131-27C01 BRACKET, FRONTBRACKET, FRONT
-
302142-06123 SCREW, FRONTSCREW, FRONT
-
444132-37F10 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
502122-06203 SCREW, HOOKSCREW, HOOK
-
644210-37F00 CAP, FUEL TANKCAP, FUEL TANK
-
744248-27C00 GASKETGASKET
-
809352-50823-600 HOSE, BREATHER (L:600!350)HOSE, BREATHER (L:600!350)
-
944541-26C00 CUSHIONCUSHION
-
1044541-37F00 CUSHIONCUSHION
-
1109407-30402 CLAMPCLAMP
-
1244542-37F00 CUSHION, REARCUSHION, REAR
-
1309407-25402 CLAMP, REARCLAMP, REAR
-
1444560-27C00 BAND, REARBAND, REAR
-
1509139-06134 SCREWSCREW
-
1614762-01B01 CUSHION, FRONTCUSHION, FRONT
-
1709116-06195 BOLT, FRONTBOLT, FRONT
-
1809180-06268 SPACERSPACER
-
1933652-19F00 CUSHION, SIDECUSHION, SIDE
-
2268110-37F50-CFK TAPE SET, FUEL TANKTAPE SET, FUEL TANK
