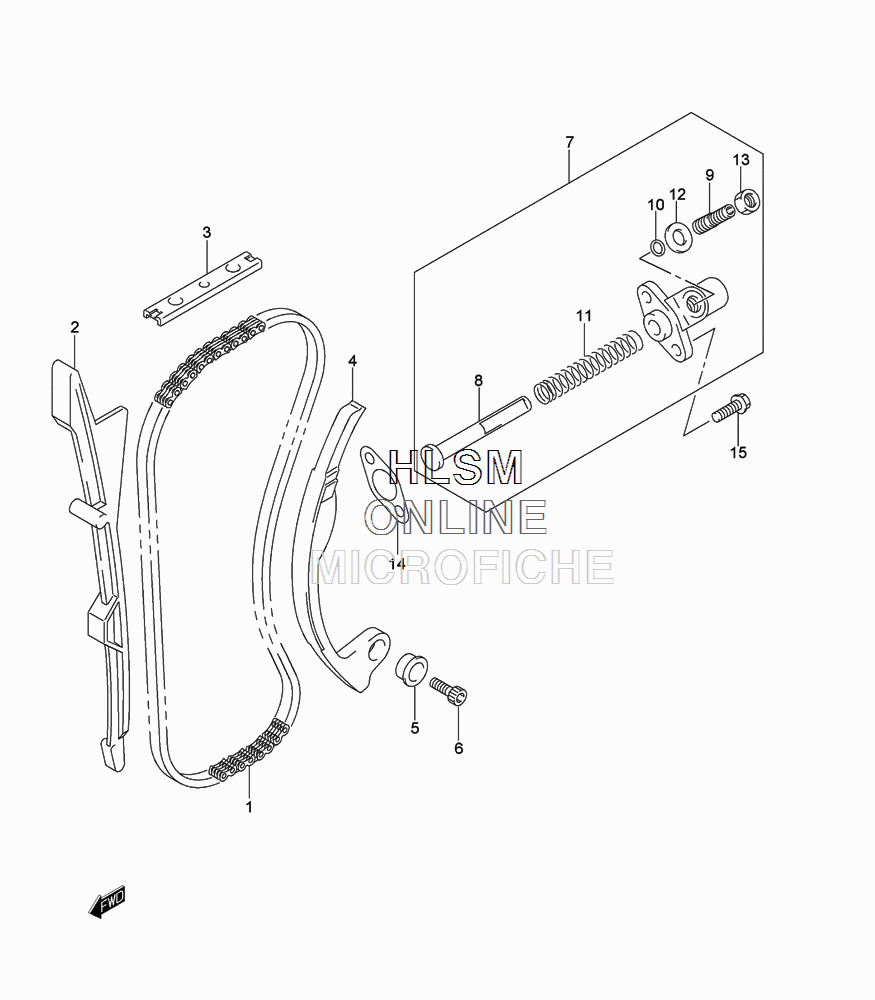

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-Z450K6 - 2006 года выпуска
-
№АртикулНазвание
-
112760-11D00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-35G00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-35G00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412811-35G10 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
512812-35G00 SPACERSPACER
-
607130-06163 BOLTBOLT
-
712830-35G00 ADJUSTER ASSY, TENSIONER (INCL. 8-13)ADJUSTER ASSY, TENSIONER (INCL. 8-13)
-
812832-35G00 ROD, PUSHROD, PUSH
-
912838-35G00 BOLT, ADJUSTBOLT, ADJUST
-
1009280-06005 O RING (D:1.9,ID:5.7)O RING (D:1.9,ID:5.7)
-
1109440-11015 SPRINGSPRING
-
1208212-08162 WASHERWASHER
-
1308310-00083 NUTNUT
-
1412837-32410 GASKET, ADJUSTERGASKET, ADJUSTER
-
1509103-06235 BOLT (6X20)BOLT (6X20)
