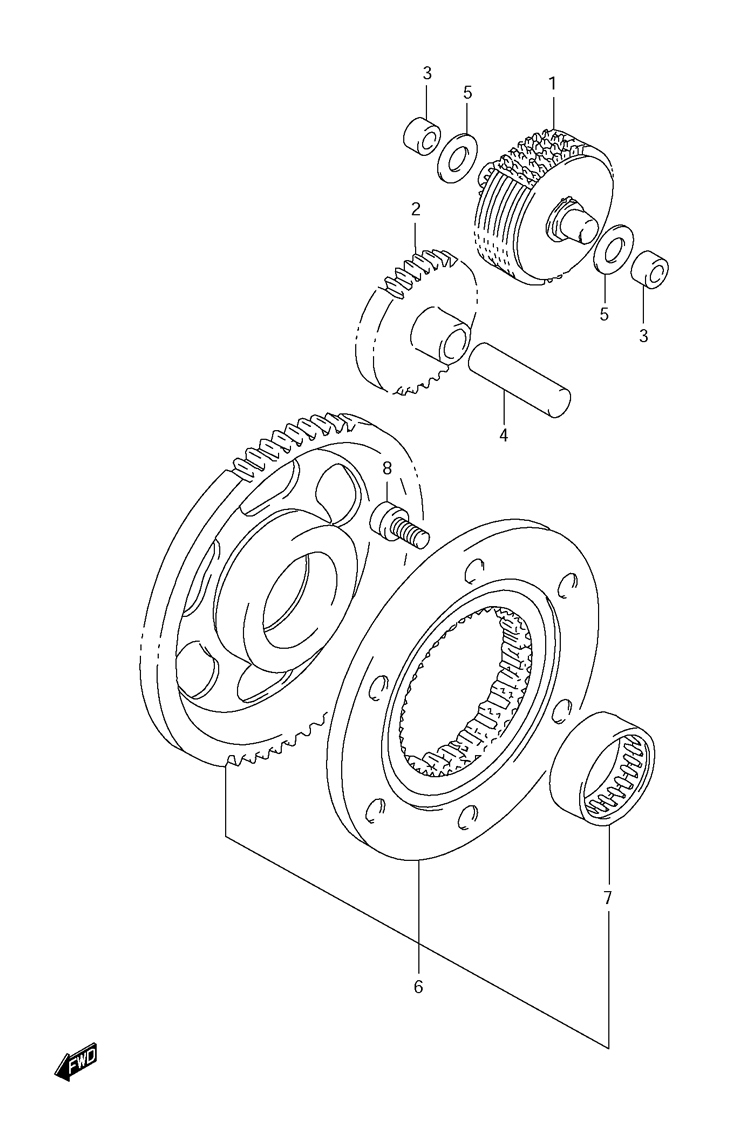

STARTER CLUTCH для Suzuki DR-650SMK7 - 2007 года выпуска
-
№АртикулНазвание
-
112600-12D00 LIMITER ASSEMBLY, STARTER IDLE GEARLIMITER ASSEMBLY, STARTER IDLE GEAR
-
212612-12D01 GEAR, STARTER IDLE NO.2 (NO. OF TEETH: 27)GEAR, STARTER IDLE NO.2 (NO. OF TEETH: 27)
-
312618-31D01 BUSH, LIMITER SHAFTBUSH, LIMITER SHAFT
-
409202-12002 PIN, IDLE GEAR NO.2PIN, IDLE GEAR NO.2
-
508211-10221 WASHERWASHER
-
612600-09860 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
709263-31009 ...BEARING (31X39X17.8)...BEARING (31X39X17.8)
-
809106-08106 BOLTBOLT
