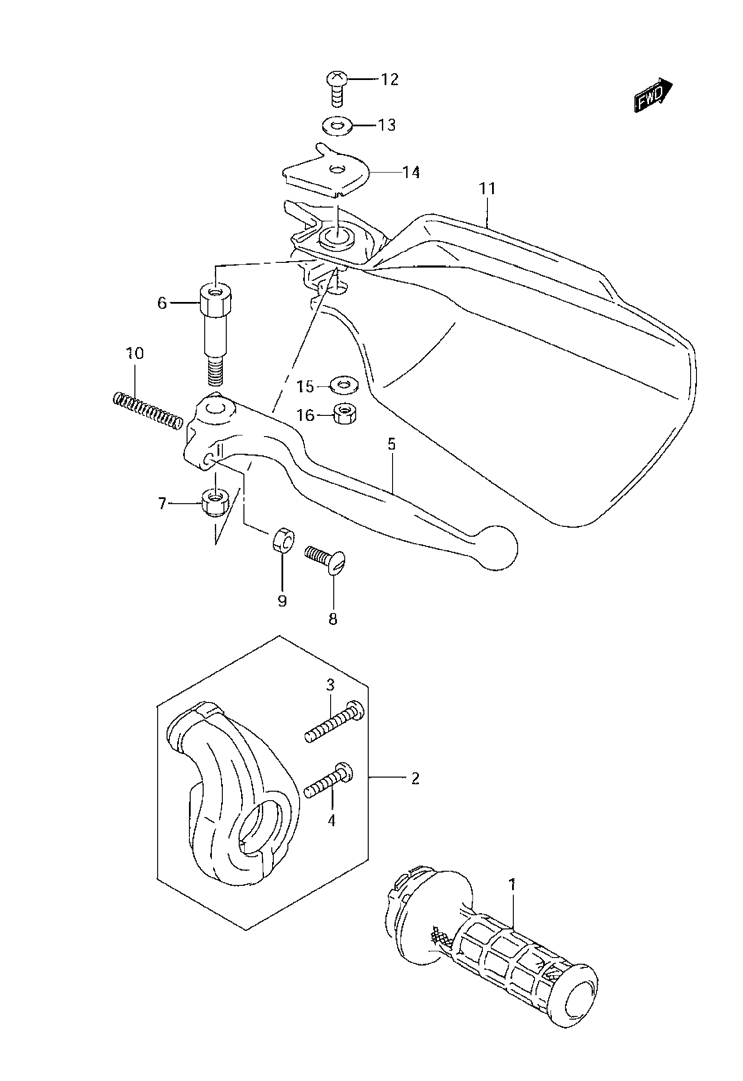

RIGHT HANDLE LEVER для Suzuki DR-Z250K7 - 2007 года выпуска
-
№АртикулНазвание
-
157110-14D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
309125-05066 SCREW (5X25)SCREW (5X25)
-
402112-05203 SCREWSCREW
-
557421-27C00 LEVER, BRAKELEVER, BRAKE
-
657431-05D00 BOLT, BRAKE LEVER PIVOTBOLT, BRAKE LEVER PIVOT
-
708319-21068 NUTNUT
-
857431-14511 BOLTBOLT
-
908310-00053 NUTNUT
-
1057318-14502 SPRING, RETURNSPRING, RETURN
-
1157341-05D10-YU1 COVER, KNUCKLE RIGHT HAND (YELLOW, YU1)COVER, KNUCKLE RIGHT HAND (YELLOW, YU1)
-
1202142-05107 SCREWSCREW
-
1309160-05043 WASHERWASHER
-
1457355-14D00 PLATE, UPPERPLATE, UPPER
-
1509160-06130 WASHERWASHER
-
1608319-21068 NUTNUT
