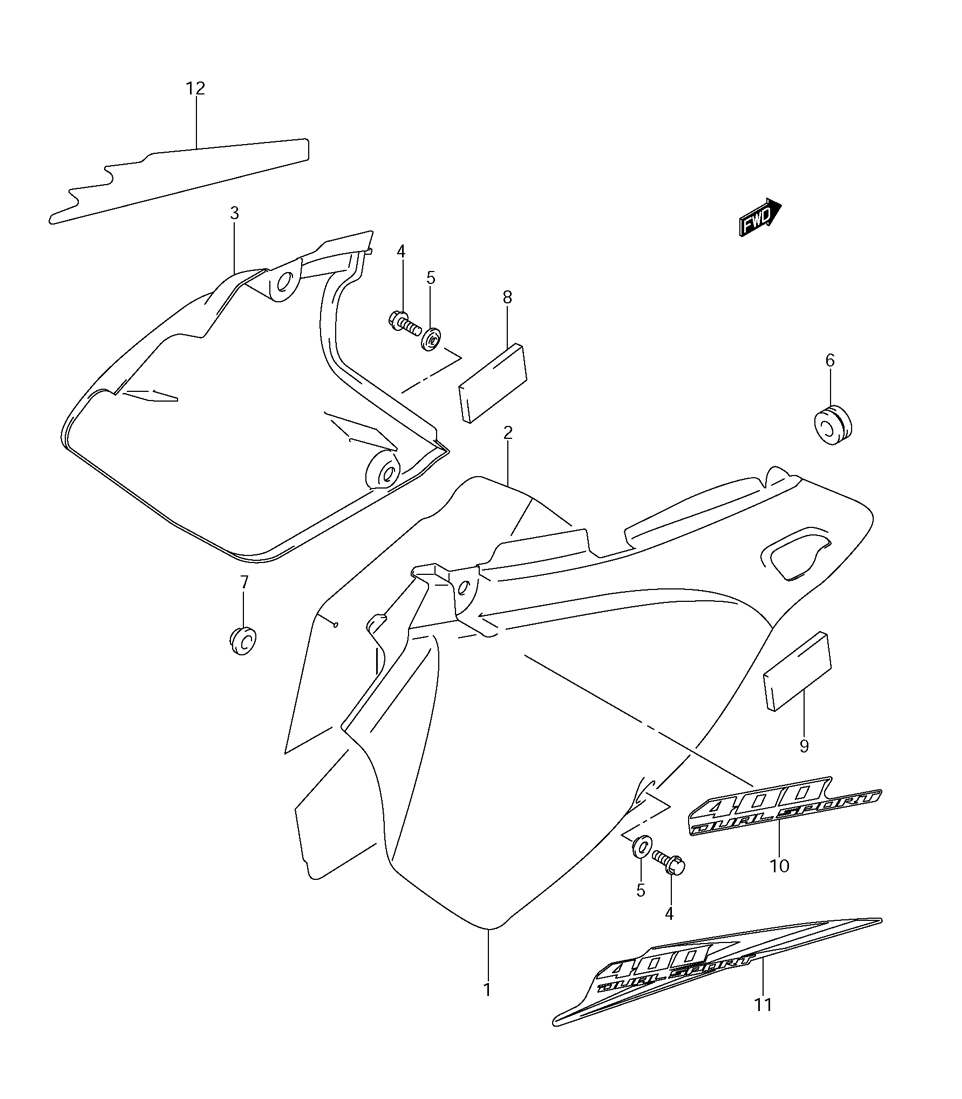

SIDE COVER для Suzuki DR-Z400SK7 - 2007 года выпуска
-
№АртикулНазвание
-
147111-29FC0-30H COVER, FRAME RIGHT HAND (WHITE) (30H)COVER, FRAME RIGHT HAND (WHITE) (30H)
-
247166-29F00 SHIELD, FRAME COVER RIGHT HANDSHIELD, FRAME COVER RIGHT HAND
-
347211-29FA0-30H COVER, FRAME LEFT HAND (WHITE) (30H) (EXCEPT CALF.)COVER, FRAME LEFT HAND (WHITE) (30H) (EXCEPT CALF.)
-
347211-29FC0-30H COVER, FRAME LEFT HAND (WHITE) (30H) (FOR CALF. ONLY)COVER, FRAME LEFT HAND (WHITE) (30H) (FOR CALF. ONLY)
-
409103-06273 BOLTBOLT
-
509169-06028 WASHERWASHER
-
609320-06504 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
709321-10018 CUSHION, MUFFLERCUSHION, MUFFLER
-
847161-29F00 CUSHION, LEFT HAND COVER FRONTCUSHION, LEFT HAND COVER FRONT
-
971762-65G10 CUSHION, RIGHT HAND COVER FRONTCUSHION, RIGHT HAND COVER FRONT
-
1068131-29F20-DVN EMBLEM (DVN)EMBLEM (DVN)
