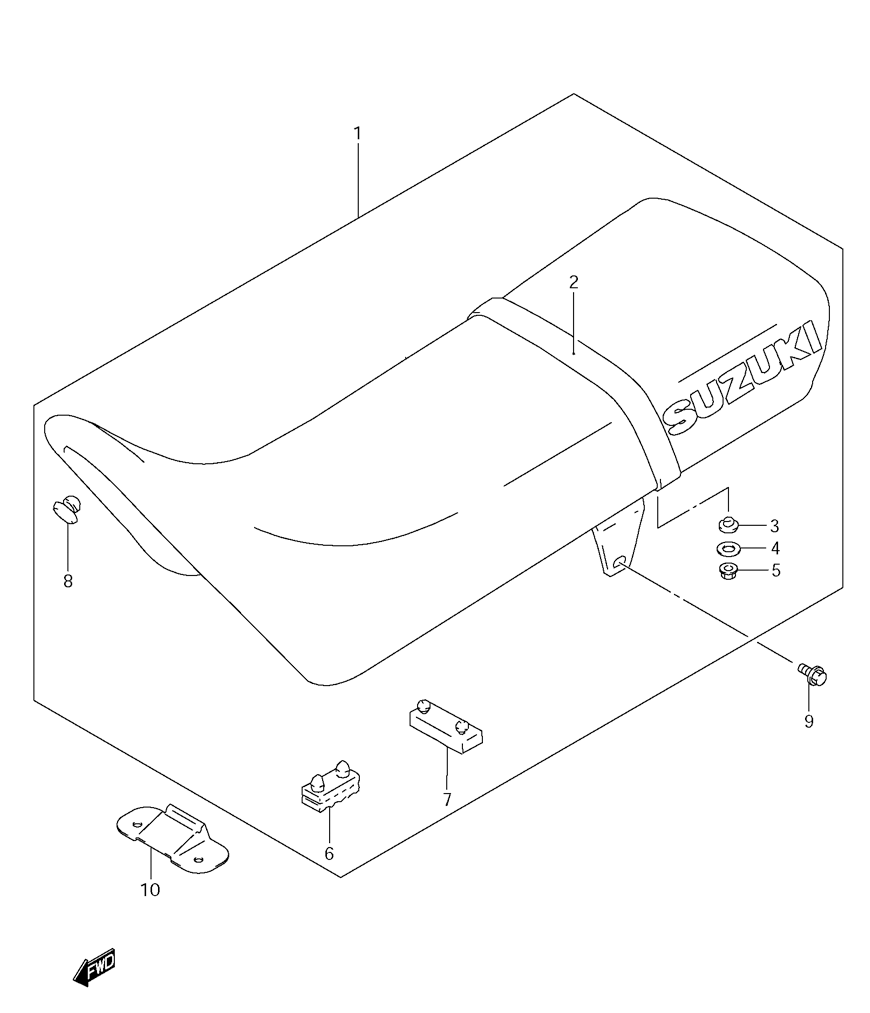

SEAT для Suzuki DR200SEK7 - 2007 года выпуска
-
№АртикулНазвание
-
145100-42AP0-CEP SEAT SET (CEP FOR YU1)SEAT SET (CEP FOR YU1)
-
145100-42AP0-BDL SEAT SET (BDL FOR N9J)SEAT SET (BDL FOR N9J)
-
145100-42AP0-DTU SEAT SET (DTU FOR YU1)SEAT SET (DTU FOR YU1)
-
145100-42AP0-DUY SEAT SET (DUY FOR N9J)SEAT SET (DUY FOR N9J)
-
145100-42AP0-DUZ SEAT SET (DUZ FOR YKY)SEAT SET (DUZ FOR YKY)
-
145100-42AP0-FCB SEAT SET (FCB FOR 019)SEAT SET (FCB FOR 019)
-
245180-42AA0-P21 ...BAND, SEAT (BLACK) (P21)...BAND, SEAT (BLACK) (P21)
-
309169-06071 ...WASHER...WASHER
-
408212-06201 ...THRUST WASHER...THRUST WASHER
-
508316-2006A ...NUT...NUT
-
645149-31300 ...CUSHION...CUSHION
-
745149-43500 ...CUSHION...CUSHION
-
809329-10001 ...CUSHION...CUSHION
-
901550-0812B BOLTBOLT
-
1045119-42A00 PLATE, SEAT FRONT HOOKPLATE, SEAT FRONT HOOK
