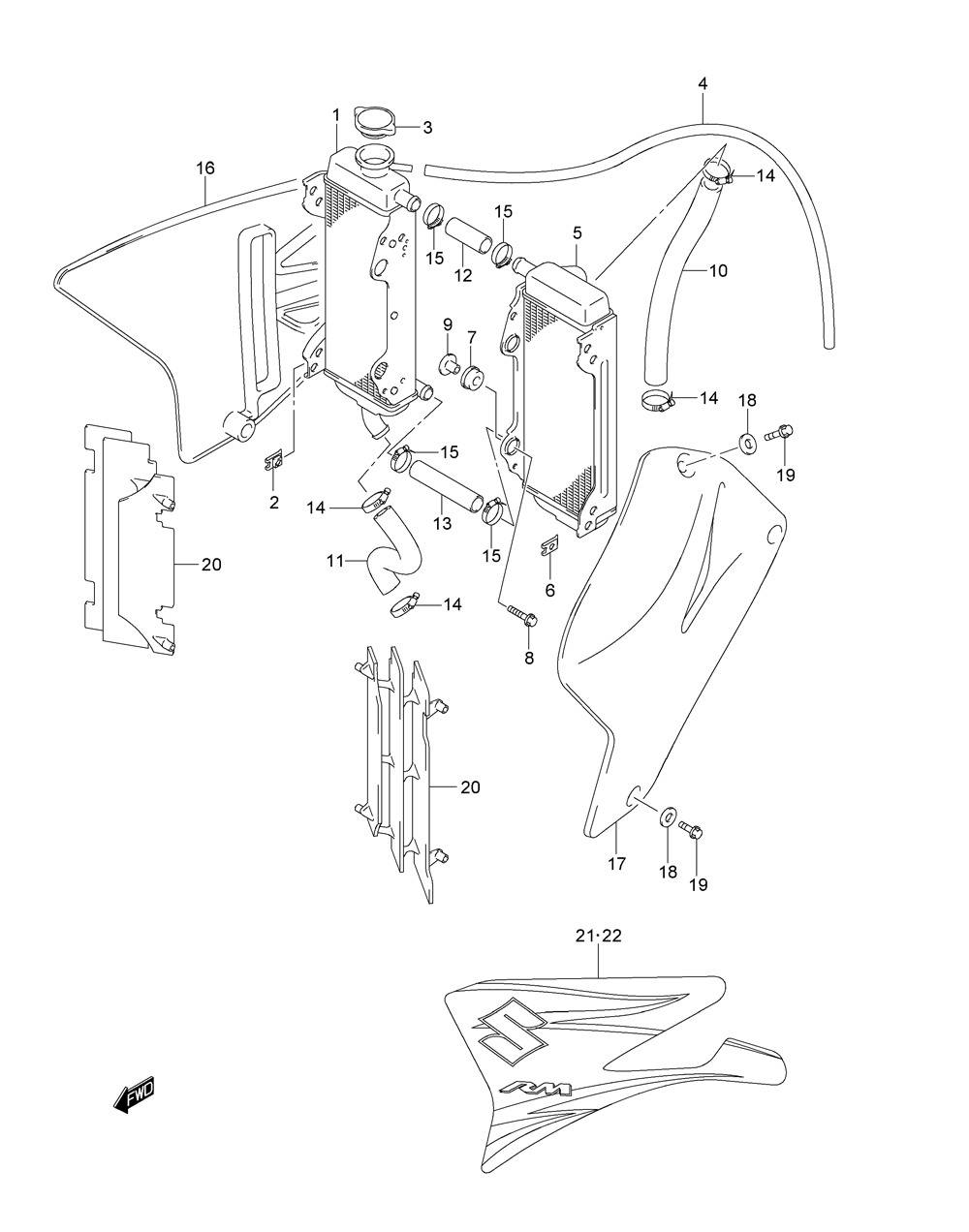

RADIATOR для Suzuki RM-125K7 - 2007 года выпуска
-
№АртикулНазвание
-
117710-36F11 RADIATOR, RIGHT HAND (INCL. 2)RADIATOR, RIGHT HAND (INCL. 2)
-
209148-06015 NUTNUT
-
317730-12C20 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
409351-50803-00A HOSE, OVER FLOWHOSE, OVER FLOW
-
517720-36F11 RADIATOR, LEFT HAND (INCL. 2)RADIATOR, LEFT HAND (INCL. 2)
-
609148-06015 NUTNUT
-
717787-19A00 CUSHION, SUPPORTCUSHION, SUPPORT
-
809116-06186 BOLTBOLT
-
909180-06243 SPACERSPACER
-
1017851-36F00 HOSE, INLETHOSE, INLET
-
1117852-36F00 HOSE, OUTLETHOSE, OUTLET
-
1217853-36F00 HOSE, JOINT NO.1HOSE, JOINT NO.1
-
1317853-29E00 HOSE, JOINT NO.2HOSE, JOINT NO.2
-
1409402-28513 CLAMPCLAMP
-
1509402-22512 CLAMPCLAMP
-
1617761-37F10-YU1 COVER, RADIATOR RIGHT HAND (YELLOW) (YU1)COVER, RADIATOR RIGHT HAND (YELLOW) (YU1)
-
1717762-37F10-YU1 COVER, RADIATOR LEFT HAND (YELLOW) (YU1)COVER, RADIATOR LEFT HAND (YELLOW) (YU1)
-
1869232-37F00 WASHER, RADIATOR COVERWASHER, RADIATOR COVER
-
1909103-06233 BOLTBOLT
-
2017831-37E11 LOUVER, RADIATORLOUVER, RADIATOR
-
2368660-37F70-EMA TAPE, RADIATOR COVER RIGHT HAND (EMA)TAPE, RADIATOR COVER RIGHT HAND (EMA)
-
2468670-37F70-EMA TAPE, RADIATOR COVER LEFT HAND (EMA)TAPE, RADIATOR COVER LEFT HAND (EMA)
