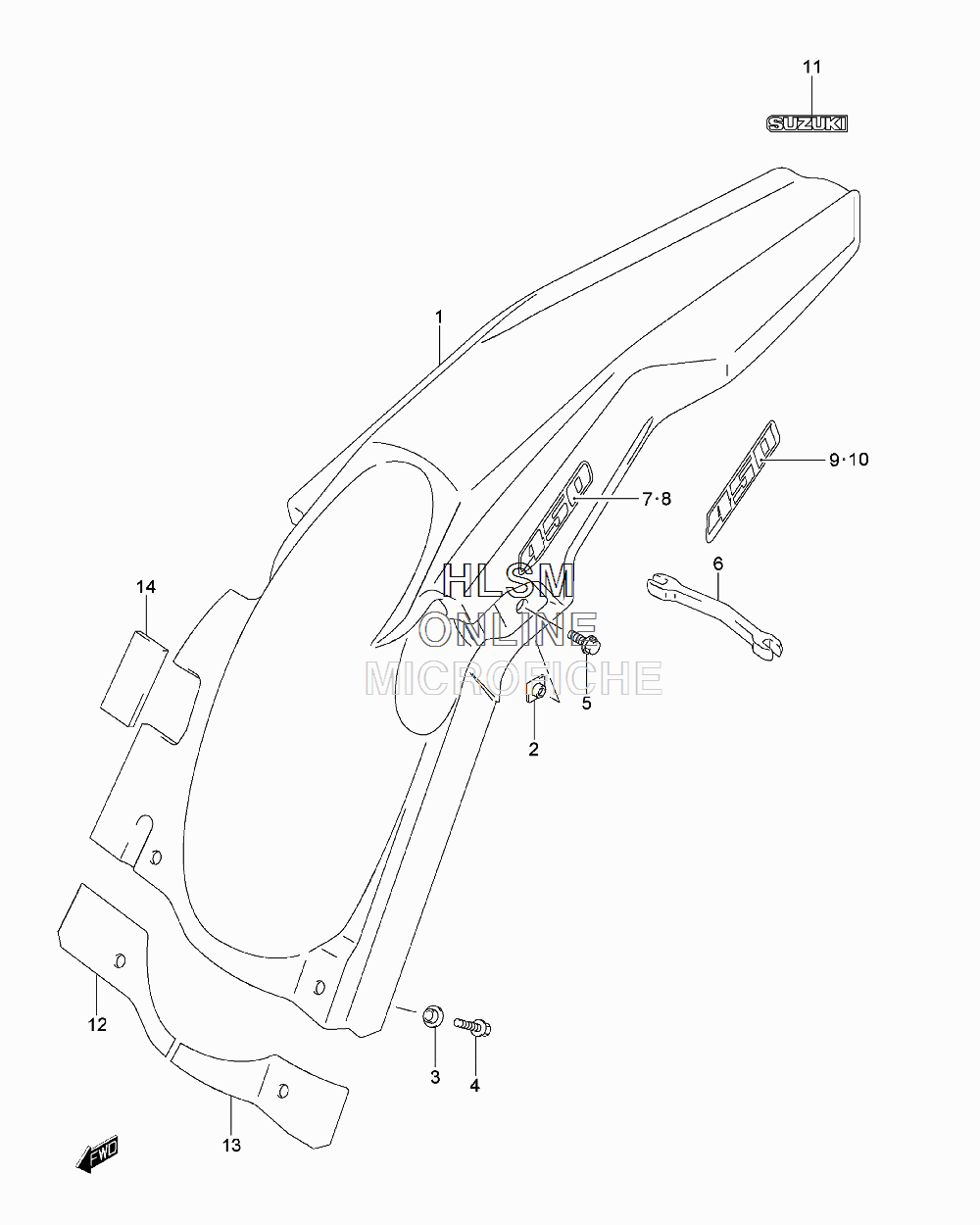

FENDER - REAR для Suzuki RM-Z450K7 - 2007 года выпуска
-
№АртикулНазвание
-
163111-35G10-YU1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
209152-06024 NUTNUT
-
369232-37F00 WASHERWASHER
-
409103-06235 BOLT, FRONTBOLT, FRONT
-
509103-06234 BOLT, REARBOLT, REAR
-
609813-00134 OPEN SPANNER (6.4X6.8)OPEN SPANNER (6.4X6.8)
-
968175-35G10-GY8 TAPE, RIGHT HANDTAPE, RIGHT HAND
-
1068176-35G10-GY8 TAPE, LEFT HANDTAPE, LEFT HAND
-
1168721-35G00-GY8 EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
-
1263114-35G00 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
1363114-35G10 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1463115-35G00 CUSHION, FRONTCUSHION, FRONT
