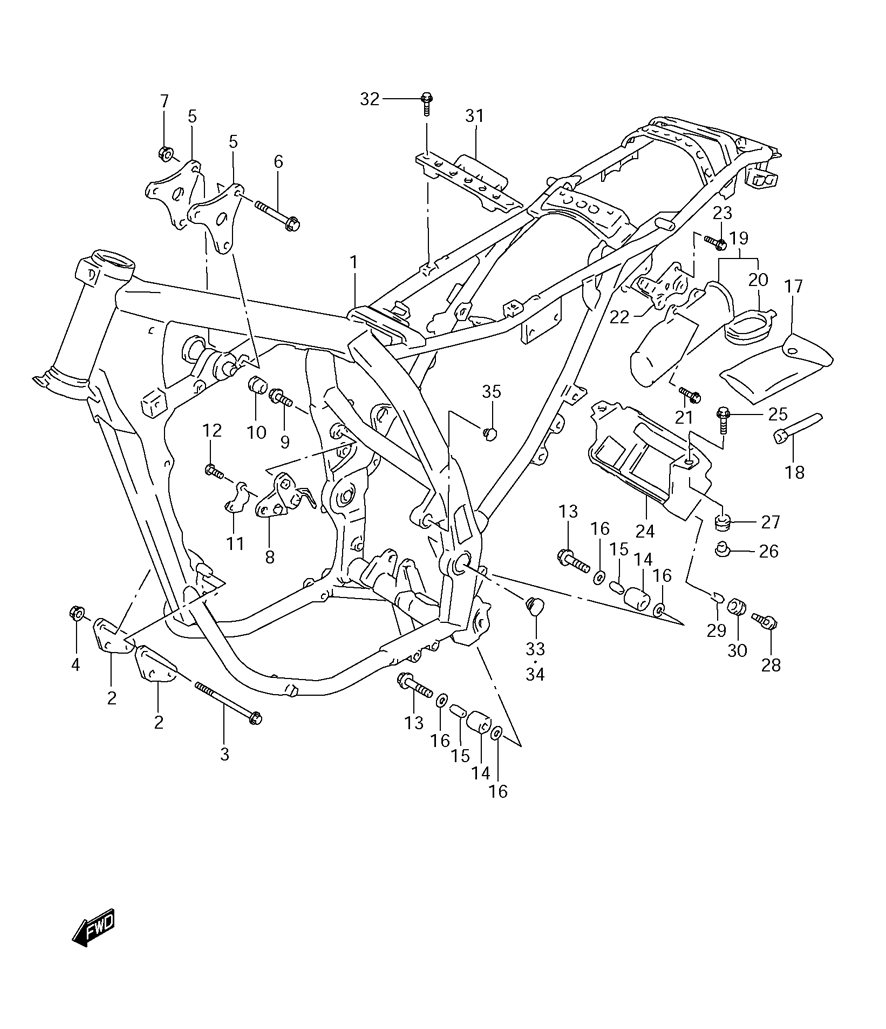

FRAME для Suzuki DR-650SMK8 - 2008 года выпуска
-
№АртикулНазвание
-
141100-32E30-YU8 FRAME (GRAY) (EXCEPT CALF.) (YU8)FRAME (GRAY) (EXCEPT CALF.) (YU8)
-
141100-32E20-YU8 FRAME (GRAY) (FOR CALF. ONLY) (YU8)FRAME (GRAY) (FOR CALF. ONLY) (YU8)
-
241911-32E00 PLATE, FRONT RIGHT HANDPLATE, FRONT RIGHT HAND
-
309103-08139 BOLT, FRONTBOLT, FRONT
-
408319-3108A NUTNUT
-
541991-32E00 PLATE, UPPERPLATE, UPPER
-
609103-08339 BOLT, UPPERBOLT, UPPER
-
708319-3108A NUTNUT
-
841930-32E00-019 PLATE, REAR RIGHT HAND (BLACK) (019)PLATE, REAR RIGHT HAND (BLACK) (019)
-
901550-0820B BOLT, REARBOLT, REAR
-
1009250-20012 CAPCAP
-
1143251-32E00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1202162-0616B BOLTBOLT
-
1309103-08178 BOLTBOLT
-
1443911-13E00 ROLLER, CHAINROLLER, CHAIN
-
1509180-08119 SPACERSPACER
-
1608211-08201 WASHERWASHER
-
1709800-21034 TOOL ASSEMBLYTOOL ASSEMBLY
-
1809816-00100 BOX SPANNER 16BOX SPANNER 16
-
1941550-32E00 HOLDER, TOOLHOLDER, TOOL
-
2041552-37210 ...CAP...CAP
-
2109116-06006 BOLTBOLT
-
2247440-32E00 BRACKET, TOOL HOLDER (FOR CALF. ONLY)BRACKET, TOOL HOLDER (FOR CALF. ONLY)
-
2301550-0616B BOLT (FOR CALF. ONLY)BOLT (FOR CALF. ONLY)
-
2441540-32E00 HOLDER, BATTERYHOLDER, BATTERY
-
2509116-06167 BOLT, UPPERBOLT, UPPER
-
2609169-06065 SPACERSPACER
-
2709320-08021 CUSHIONCUSHION
-
2809116-06213 BOLT, SIDEBOLT, SIDE
-
2909180-06038 SPACERSPACER
-
3009320-08021 CUSHIONCUSHION
-
3141561-32E00 PLATE, FITTINGPLATE, FITTING
-
3201550-0610B BOLTBOLT
-
3343585-32E00 PLUG, FRAME PIVOT RIGHT HANDPLUG, FRAME PIVOT RIGHT HAND
-
3443595-32E00 PLUG, FRAME PIVOT LEFT HANDPLUG, FRAME PIVOT LEFT HAND
-
3543586-32E00 PLUG, FRAME BOSSPLUG, FRAME BOSS
