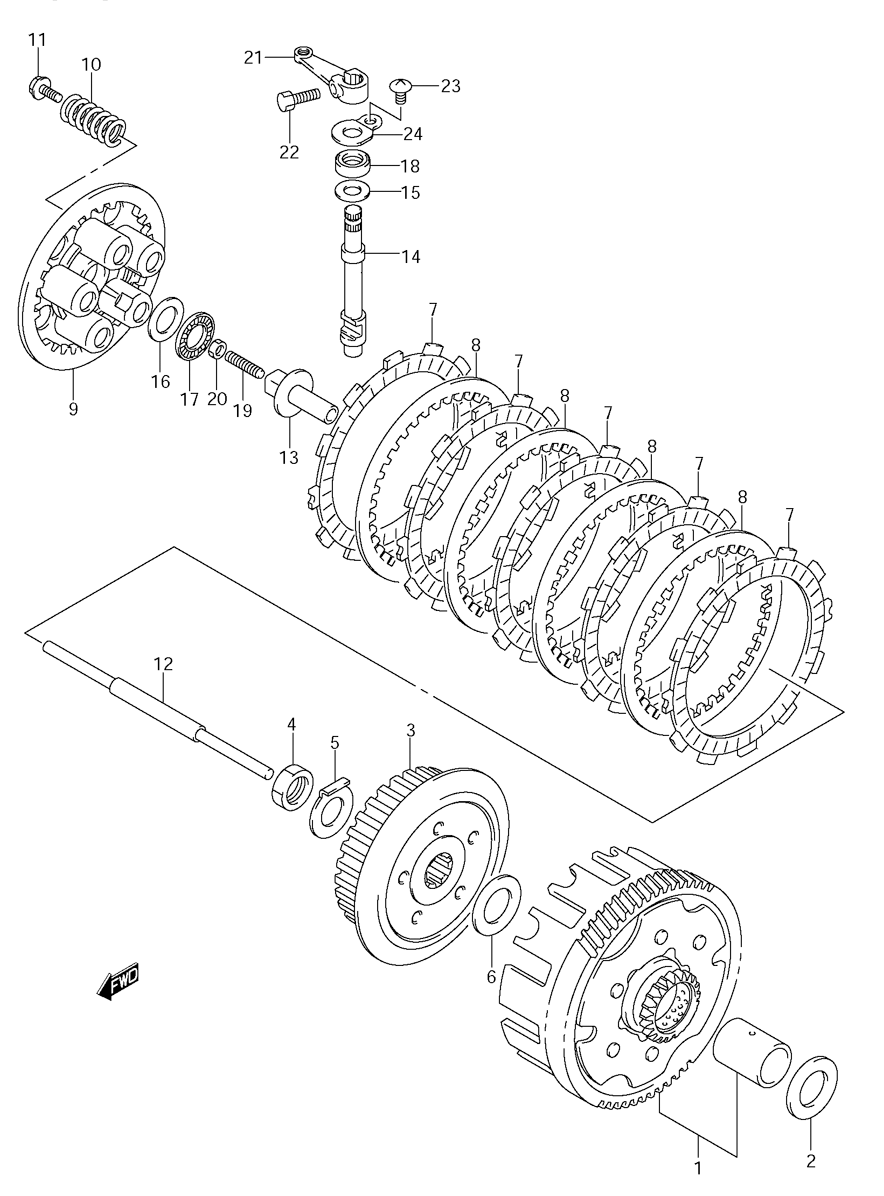

CLUTCH для Suzuki DR-Z125K8 - 2008 года выпуска
-
№АртикулНазвание
-
121200-44812 GEAR ASSEMBLY, PRIMARY (NO. OF TEETH: 59/20)GEAR ASSEMBLY, PRIMARY (NO. OF TEETH: 59/20)
-
208211-20353 THRUST WASHERTHRUST WASHER
-
321411-05200 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
409140-16001 NUTNUT
-
509169-16003 WASHERWASHER
-
608211-20352 THRUST WASHERTHRUST WASHER
-
721441-25C01 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
821451-19A00 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
921462-14103 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1009440-15021 SPRINGSPRING
-
1109116-05020 BOLT (5X16)BOLT (5X16)
-
1223110-05203 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1323121-38201 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1423122-05200 CAM SHAFT, CLUTCH RELEASECAM SHAFT, CLUTCH RELEASE
-
1509181-10195 THRUST WASHER (10X20X1.0)THRUST WASHER (10X20X1.0)
-
1609160-15045 WASHER (15.5X28X1.0)WASHER (15.5X28X1.0)
-
1709263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
1809282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
1909134-06010 SCREW (6X25)SCREW (6X25)
-
2009140-06023 NUT (6X3.6)NUT (6X3.6)
-
2123271-46010 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2201500-0616A BOLTBOLT
-
2302142-0610A SCREWSCREW
-
2423117-05200 RETAINER, OIL SEALRETAINER, OIL SEAL
