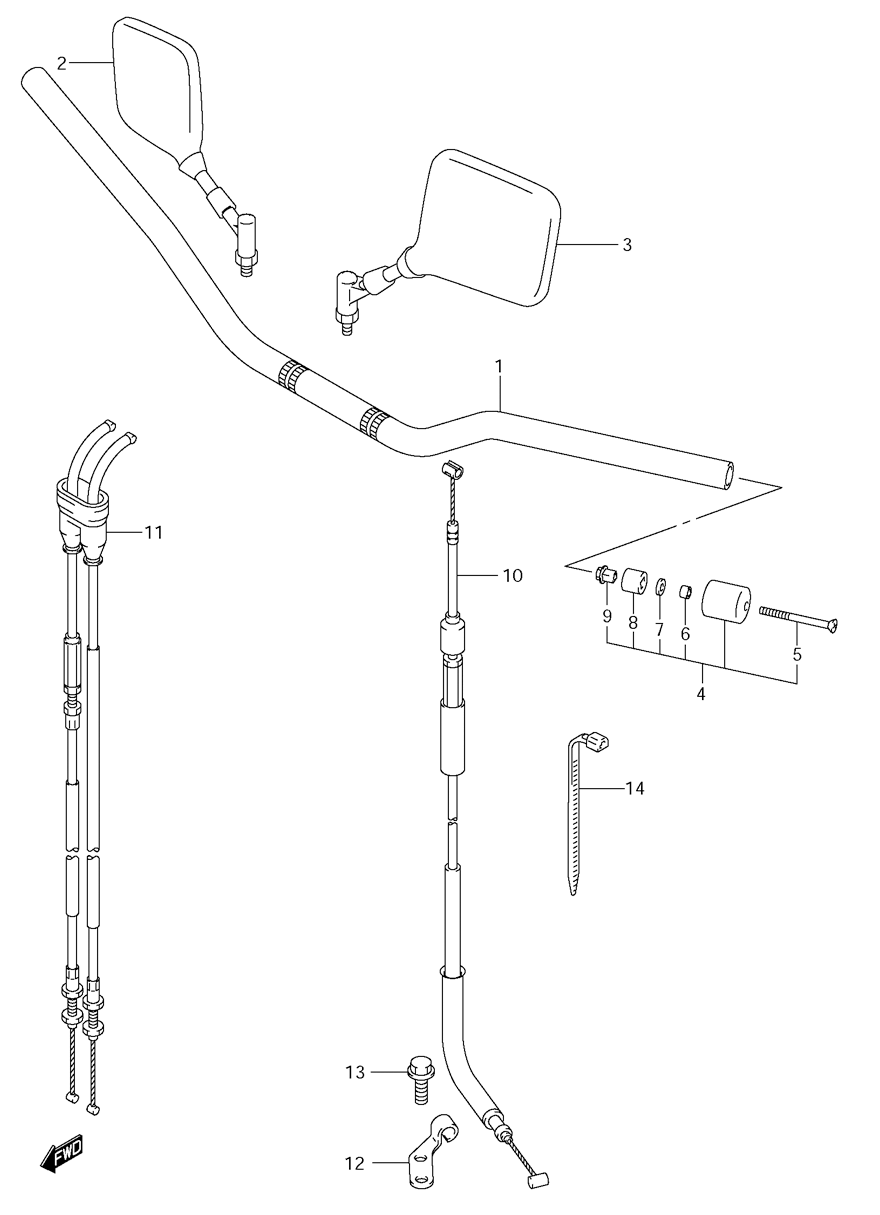

HANDLEBAR для Suzuki DR-Z400SMK8 - 2008 года выпуска
-
№АртикулНазвание
-
156111-29F40 HANDLEBARHANDLEBAR
-
256500-06G30 MIRROR ASSEMBLY, REAR VIEW RIGHT HANDMIRROR ASSEMBLY, REAR VIEW RIGHT HAND
-
356600-06G30 MIRROR ASSEMBLY, REAR VIEW LEFT HANDMIRROR ASSEMBLY, REAR VIEW LEFT HAND
-
456200-29841 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
502122-0645B ...SCREW...SCREW
-
609180-06246 ...SPACER...SPACER
-
708322-0106B ...WASHER...WASHER
-
856272-29F00 ...EXPANDER...EXPANDER
-
956273-29F01 ...NUT...NUT
-
1058200-29F10 CABLE, CLUTCHCABLE, CLUTCH
-
1158301-29F10 CABLE ASSEMBLY, THROTTLECABLE ASSEMBLY, THROTTLE
-
1258634-29F00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1301550-0612B BOLT, STOPPERBOLT, STOPPER
-
1409407-10404 CLAMPCLAMP
-
1409407-25401 CLAMPCLAMP
