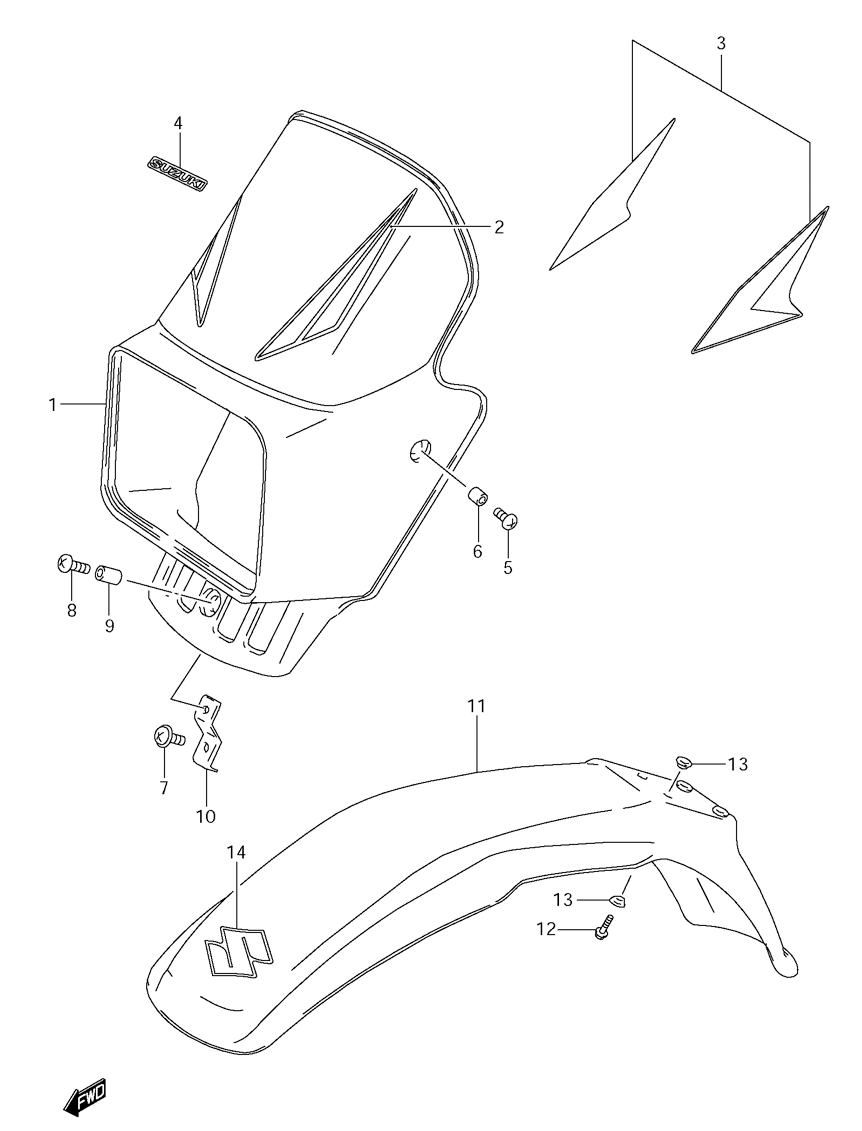

HEADLAMP COVER для Suzuki DR200SEK8 - 2008 года выпуска
-
№АртикулНазвание
-
151811-14A30-019 COVER, HEADLAMP (BLACK) (019)COVER, HEADLAMP (BLACK) (019)
-
151811-14A30-YLW COVER, HEADLAMP (BLUE) (YLW)COVER, HEADLAMP (BLUE) (YLW)
-
268720-42A00-CNS TAPE SET, COVER (CNS FOR 019)TAPE SET, COVER (CNS FOR 019)
-
268720-42A00-EVN TAPE SET, COVER (EVN FOR YKY)TAPE SET, COVER (EVN FOR YKY)
-
468721-05D00-YD8 EMBLEM (SILVER) (YD8)EMBLEM (SILVER) (YD8)
-
502142-0612B SCREWSCREW
-
609180-06245 SPACER (6.1X8X3.5)SPACER (6.1X8X3.5)
-
702112-36127 SCREWSCREW
-
802142-0620B SCREWSCREW
-
909180-06249 SPACER (6.1X8X12)SPACER (6.1X8X12)
-
1051814-44A00 BRACE, COVER LOWERBRACE, COVER LOWER
-
1153111-44A20-019 FENDER, FRONT (BLACK) (019)FENDER, FRONT (BLACK) (019)
-
1153111-44A20-YLW FENDER, FRONT (BLUE) (YLW)FENDER, FRONT (BLUE) (YLW)
-
1201550-0616B BOLTBOLT
-
1309169-06053 WASHERWASHER
-
1468151-07G10-YD8 EMBLEM, "S" (SILVER) (YD8)EMBLEM, "S" (SILVER) (YD8)
