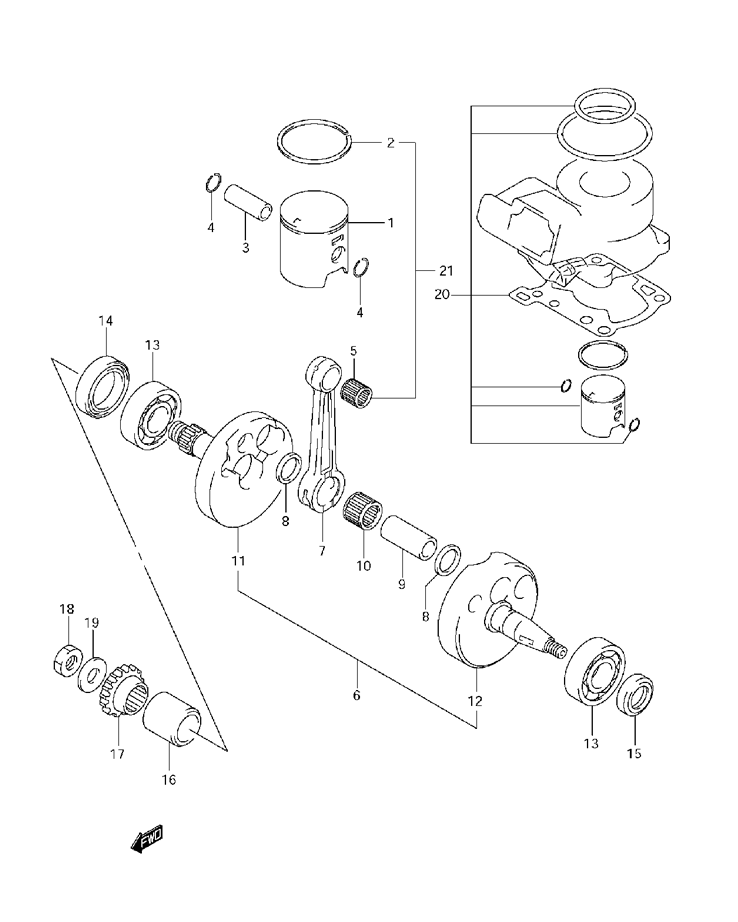

CRANKSHAFT W/ PISTON для Suzuki RM-85K8 - 2008 года выпуска
-
№АртикулНазвание
-
112110-03B20-0F0 PISTONPISTON
-
212141-03B00 RING, PISTONRING, PISTON
-
312151-20910 PIN, PISTONPIN, PISTON
-
409381-14001 CIRCLIPCIRCLIP
-
509263-14016 BEARING, PISTON PINBEARING, PISTON PIN
-
612200-03B20 CRANKSHAFT ASSY (INCL. 7-12)CRANKSHAFT ASSY (INCL. 7-12)
-
712161-03B02 ROD, CONNECTINGROD, CONNECTING
-
809160-20082 WASHERWASHER
-
912211-02B50 PIN, CRANKPIN, CRANK
-
1009263-20088 BEARING (20X26X13.7)BEARING (20X26X13.7)
-
1112221-03B01 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
1212261-03B01 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
1309262-20082 BEARING (20X52X15)BEARING (20X52X15)
-
1409283-30061 OIL SEAL, RIGHT HAND (30X40X7)OIL SEAL, RIGHT HAND (30X40X7)
-
1509283-18007 OIL SEAL, LEFT HAND (18X30X6)OIL SEAL, LEFT HAND (18X30X6)
-
1612359-27C30 SPACER, PRIMARY DRIVE GEARSPACER, PRIMARY DRIVE GEAR
-
1721111-02B41 GEAR, PRIMARY DRIVE (NT:18)GEAR, PRIMARY DRIVE (NT:18)
-
1809140-16019 NUTNUT
-
1909164-16002 WASHERWASHER
-
2012100-03860 TOP END KIT, ENGINE (INCL. 20-20)TOP END KIT, ENGINE (INCL. 20-20)
-
2011147-03B00 O RING, CYLINDER HEAD NO.1 (NOT SHOWN)O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
-
2011148-03B00 O RING, CYLINDER HEAD NO.2 (NOT SHOWN)O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
-
2011241-03B01 GASKET, CYLINDER (NOT SHOWN)GASKET, CYLINDER (NOT SHOWN)
-
2012110-03B20-0F0 PISTON (NOT SHOWN)PISTON (NOT SHOWN)
-
2012141-03B00 RING, PISTON (NOT SHOWN)RING, PISTON (NOT SHOWN)
-
2009381-14001 CIRCLIP, PISTON PIN (NOT SHOWN)CIRCLIP, PISTON PIN (NOT SHOWN)
-
2112100-03850 PISTON KIT (INCL. 21-21)PISTON KIT (INCL. 21-21)
-
2112141-03B00 RING, PISTON (NOT SHOWN)RING, PISTON (NOT SHOWN)
-
2112151-20910 PIN, PISTON (NOT SHOWN)PIN, PISTON (NOT SHOWN)
-
2109263-14016 BEARING (14X18X16) (NOT SHOWN)BEARING (14X18X16) (NOT SHOWN)
-
2109381-14001 CIRCLIP, PISTON PIN (NOT SHOWN)CIRCLIP, PISTON PIN (NOT SHOWN)
