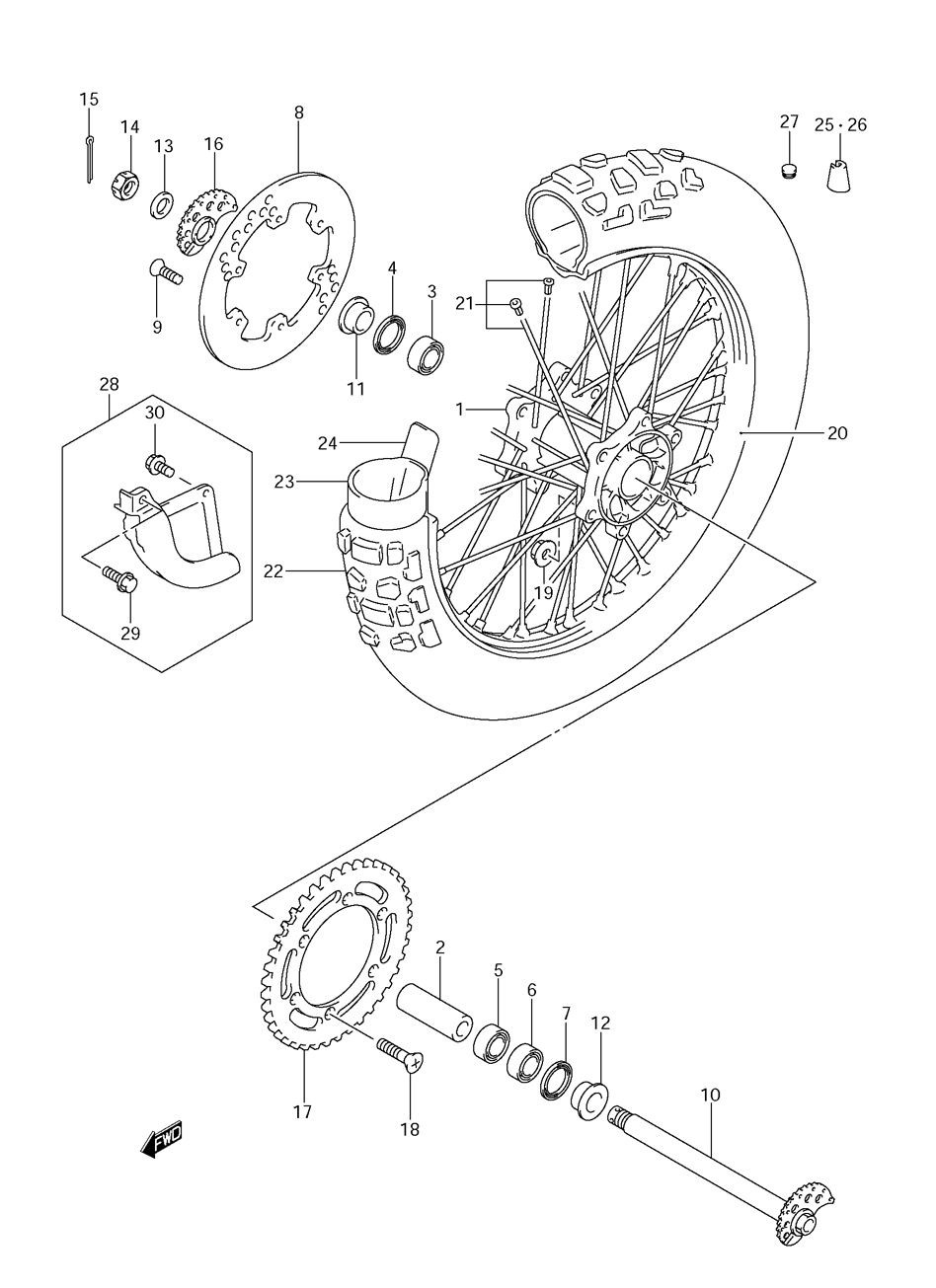

WHEEL - REAR для Suzuki DR-Z400SK9 - 2009 года выпуска
-
№АртикулНазвание
-
164111-29F10 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-29F00 SPACER, BEARINGSPACER, BEARING
-
308133-60047 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
464841-28E00 SEAL, RIGHT HAND (29X42X6)SEAL, RIGHT HAND (29X42X6)
-
508133-60047 BEARING, LEFT HANDBEARING, LEFT HAND
-
608123-62047 BEARING, OUTER LEFT HANDBEARING, OUTER LEFT HAND
-
709283-29006 SEAL, LEFT HAND (29X47X5)SEAL, LEFT HAND (29X47X5)
-
869211-43D00 DISC, REAR BRAKEDISC, REAR BRAKE
-
909120-06014 SCREW (6X17.5)SCREW (6X17.5)
-
1064710-29F00 AXLE, REARAXLE, REAR
-
1164751-28E20 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
1264751-28E20 SPACER, LEFT HANDSPACER, LEFT HAND
-
1309160-19022 WASHERWASHER
-
1408319-2118A NUTNUT
-
1504111-4030A PIN, COTTERPIN, COTTER
-
1661410-29F00 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
1764511-14D80 SPROCKET, REAR (NO. OF TEETH: 44-520)SPROCKET, REAR (NO. OF TEETH: 44-520)
-
1809120-08010 SCREW (8X30.5)SCREW (8X30.5)
-
1908319-3108A NUTNUT
-
2065311-29F00 RIM, REAR WHEEL (2.15X18)RIM, REAR WHEEL (2.15X18)
-
2165320-29F00 SPOKE ASSEMBLY, REAR WHEELSPOKE ASSEMBLY, REAR WHEEL
-
2265110-29F10 TIRE, REAR (120/90-18 64P) (BRIDGESTONE)TIRE, REAR (120/90-18 64P) (BRIDGESTONE)
-
2365200-29E00 TUBE ASSEMBLY, WHEEL INNERTUBE ASSEMBLY, WHEEL INNER
-
2465261-14E00 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2555412-41F00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2655413-41F00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2709250-08013 CAP, BEAD STOPPERCAP, BEAD STOPPER
-
2869200-28C00 COVER, REAR DISCCOVER, REAR DISC
-
2901550-0620B ...BOLT, FRONT...BOLT, FRONT
-
3001550-0612B ...BOLT, REAR...BOLT, REAR
