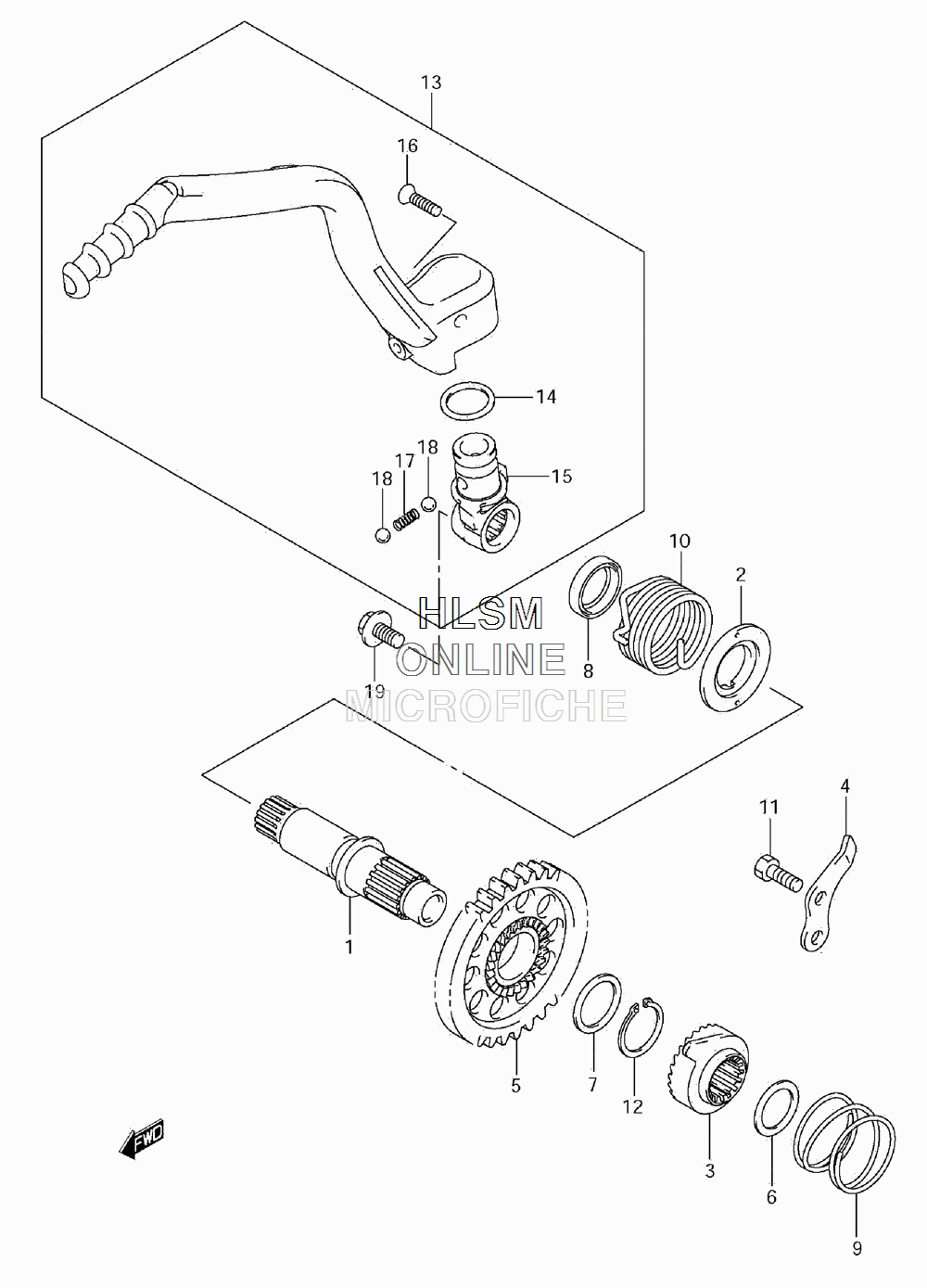

KICK STARTER для Suzuki RM-Z450L0 - 2010 года выпуска
-
№АртикулНазвание
-
126211-28H00 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-35G00 GUIDE, KICK STARTER SFT SPRINGGUIDE, KICK STARTER SFT SPRING
-
326231-28H00 STARTER, KICKSTARTER, KICK
-
426232-28H00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526240-35G00 GEAR, KICK STARTER DRIVEGEAR, KICK STARTER DRIVE
-
609181-17130 WASHER (17X24X0.5)WASHER (17X24X0.5)
-
709181-20139 WASHER (20X26X1)WASHER (20X26X1)
-
809283-20031 SEALSEAL
-
909440-32002 SPRINGSPRING
-
1009448-38007 SPRINGSPRING
-
1101500-0612A BOLTBOLT
-
1208331-3120A CIRCLIP, KICK START DRIVE GEARCIRCLIP, KICK START DRIVE GEAR
-
1326300-28H20 LEVER ASSY, KICK STARTER (INCL. 14-18)LEVER ASSY, KICK STARTER (INCL. 14-18)
-
1426313-28E20 O-RING, KICK STARTER LEVERO-RING, KICK STARTER LEVER
-
1526331-28H20 JOINT, KICK STARTER LEVERJOINT, KICK STARTER LEVER
-
1609127-06016 SCREW (6X27.5)SCREW (6X27.5)
-
1709440-05031 SPRINGSPRING
-
1806111-07004 BALLBALL
-
1909103-08522 BOLT (8X14)BOLT (8X14)
