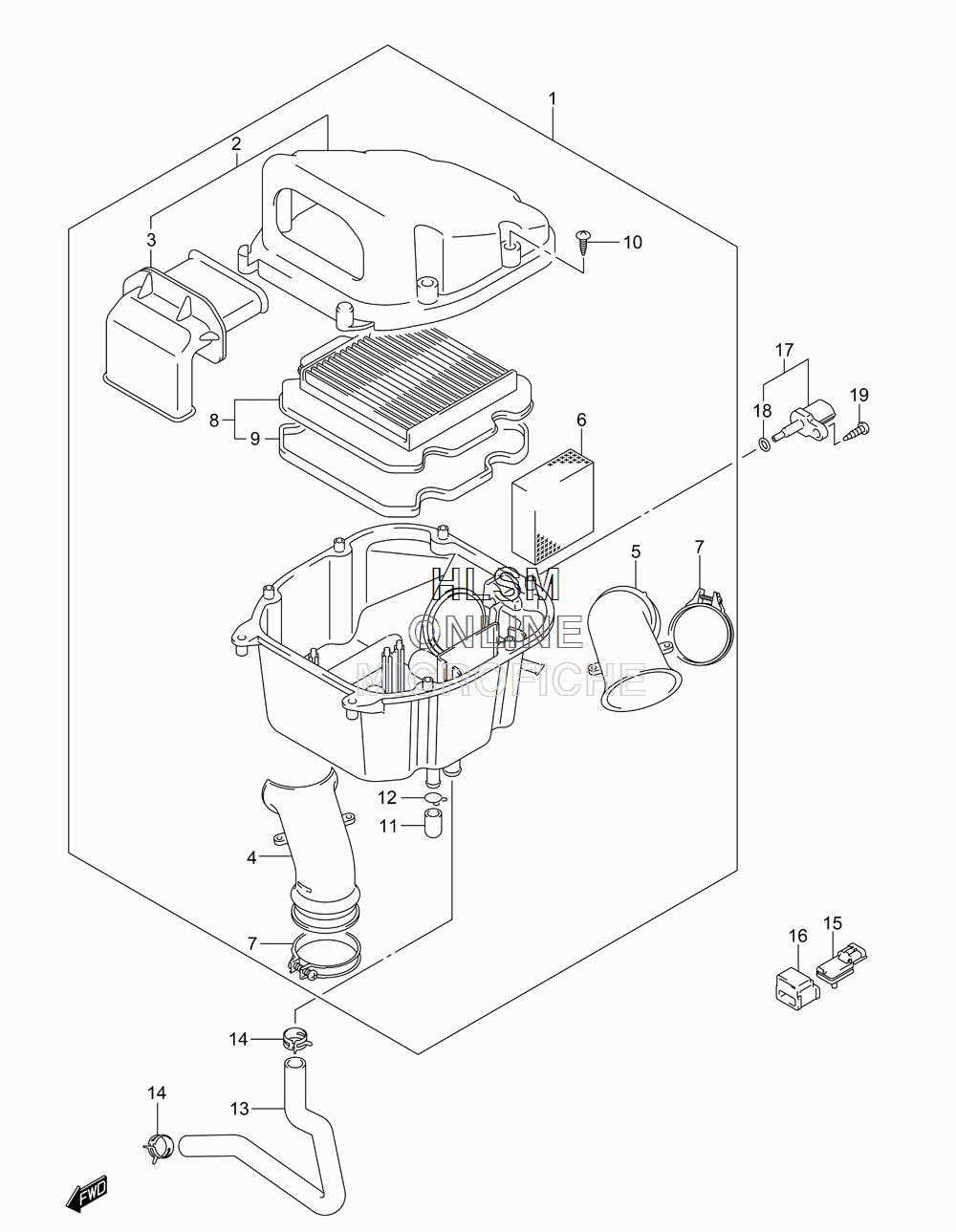

AIR CLEANER для Suzuki DL-650AL3 V-Storm 650 ABS - 2013 года выпуска
-
№АртикулНазвание
-
113700-11J01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-11J01 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
313891-27G01 ......TUBE, INLET......TUBE, INLET
-
413881-27G10 ...TUBE, OUTLET...TUBE, OUTLET
-
513882-27G10 ...TUBE, OUTLET...TUBE, OUTLET
-
613788-11J00 ...FILTER, BREATHER...FILTER, BREATHER
-
713826-44H01 ...CLAMP, OUTLET TUBE REAR...CLAMP, OUTLET TUBE REAR
-
813780-27G10 ...FILTER, AIR CLEANER...FILTER, AIR CLEANER
-
913746-06G00 ......GASKET......GASKET
-
1003141-0516A ...SCREW...SCREW
-
1113878-10G00 ...PLUG, DRAIN...PLUG, DRAIN
-
1209401-14301 ...CLIP...CLIP
-
1313850-11J00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1409401-20405 CLIPCLIP
-
1518591-41F00 SENSOR, PRESSURESENSOR, PRESSURE
-
1618595-41F00 HOLDERHOLDER
-
1713650-41F10 SENSOR AIR TEMPSENSOR AIR TEMP
-
1813655-41F10 ...O RING...O RING
-
1903511-0516A SCREWSCREW
