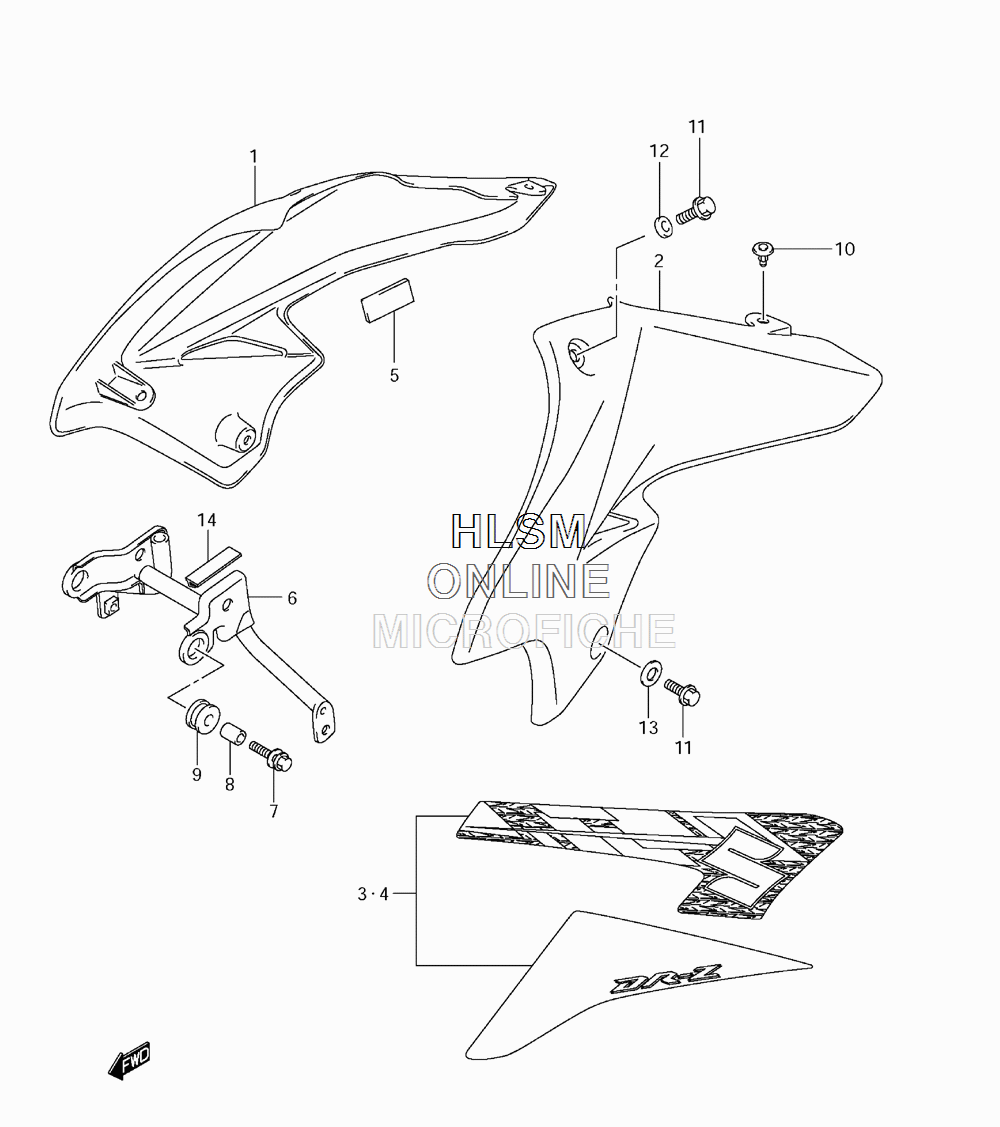

FUEL TANK COVER для Suzuki DR-Z100L3 - 2013 года выпуска
-
№АртикулНазвание
-
144271-08GA0-YU1 COVER, FUEL TANK RIGHT (YU1 - YELLOW)COVER, FUEL TANK RIGHT (YU1 - YELLOW)
-
244281-08GA0-YU1 COVER, FUEL TANK LEFT (YU1 - YELLOW)COVER, FUEL TANK LEFT (YU1 - YELLOW)
-
368110-08G90-AGB TAPE SET, FUEL TANK COVER, RIGHT (AGB - BLACK)TAPE SET, FUEL TANK COVER, RIGHT (AGB - BLACK)
-
468120-08G90-AGB TAPE SET, FUEL TANK COVER, LEFT (AGB - BLACK)TAPE SET, FUEL TANK COVER, LEFT (AGB - BLACK)
-
544294-14H00 CUSHIONCUSHION
-
644160-08GA0 BRACKET, FRONTBRACKET, FRONT
-
709116-06186 BOLT (6X25)BOLT (6X25)
-
809180-06268 SPACER (6.5X9X13.5)SPACER (6.5X9X13.5)
-
944512-04F00 CUSHIONCUSHION
-
1009409-08308-5ES CLIP (5ES - BLACK)CLIP (5ES - BLACK)
-
1101547-0616A BOLTBOLT
-
1209169-06081 WSHERWSHER
-
1309169-06053 WSHERWSHER
-
1468241-04X50-300 MOLDING, FUEL TANK BRACKETMOLDING, FUEL TANK BRACKET
