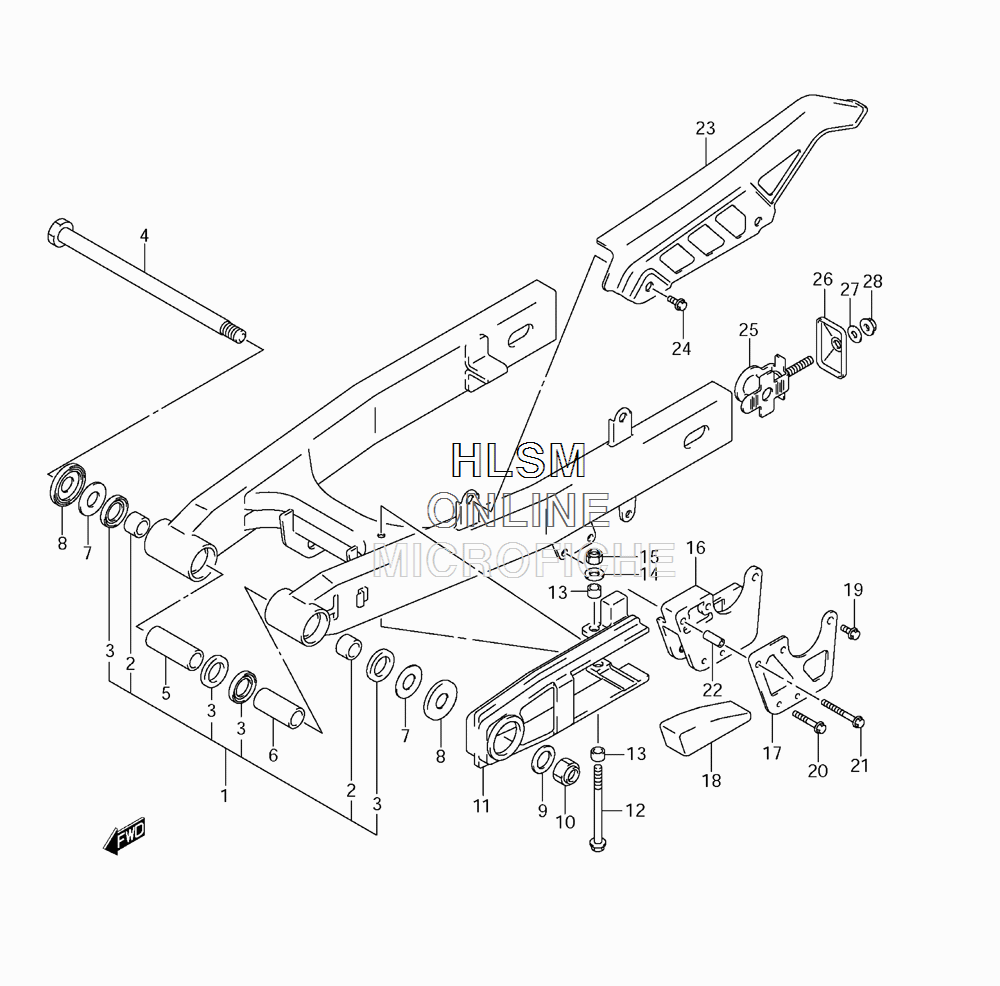

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki DR-Z125L3 - 2013 года выпуска
-
№АртикулНазвание
-
161000-08G10-13L SWINGING ARM ASSY, REAR (13L - SILVER)SWINGING ARM ASSY, REAR (13L - SILVER)
-
261261-13700 ...BUSHING...BUSHING
-
309283-20031 ...OIL SEAL (20X27X5)...OIL SEAL (20X27X5)
-
461211-44A11 SHAFT, PIVOTSHAFT, PIVOT
-
561251-08G00 SPACER, PIVOT RIGHTSPACER, PIVOT RIGHT
-
661251-42A00 SPACER, PIVOT LEFTSPACER, PIVOT LEFT
-
708211-14321 THRUST WASHERTHRUST WASHER
-
861262-40400 SEAL, PIVOTSEAL, PIVOT
-
909160-14057 WASHER (14.5X24X2.3)WASHER (14.5X24X2.3)
-
1009159-14019 NUT 14MMNUT 14MM
-
1161273-08G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1201560-0665B BOLTBOLT
-
1309180-06257 SPACER (6.5X9X6.5)SPACER (6.5X9X6.5)
-
1408322-0106B WASHERWASHER
-
1508319-2106B NUTNUT
-
1661343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1761342-02B40 PLATE, GUIDE CHAIN OUTERPLATE, GUIDE CHAIN OUTER
-
1861348-08G00 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1909103-06234 BOLT, CHAIN GUIDE (6X16)BOLT, CHAIN GUIDE (6X16)
-
2009103-06241 BOLT (6X40)BOLT (6X40)
-
2109103-06251 BOLT (6X30)BOLT (6X30)
-
2209180-06333 SPACER (6.5X10X23.5)SPACER (6.5X10X23.5)
-
2361311-01A03 CASE, CHAINCASE, CHAIN
-
2409116-06096 SCREW, CHAIN CASE (6X10)SCREW, CHAIN CASE (6X10)
-
2561410-08G00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2661421-38200 PLATE, CHAIN ADJUSTER GUIDEPLATE, CHAIN ADJUSTER GUIDE
-
2709160-12085 WASHER (12.5X26X2.3)WASHER (12.5X26X2.3)
-
2808319-3108A NUTNUT
