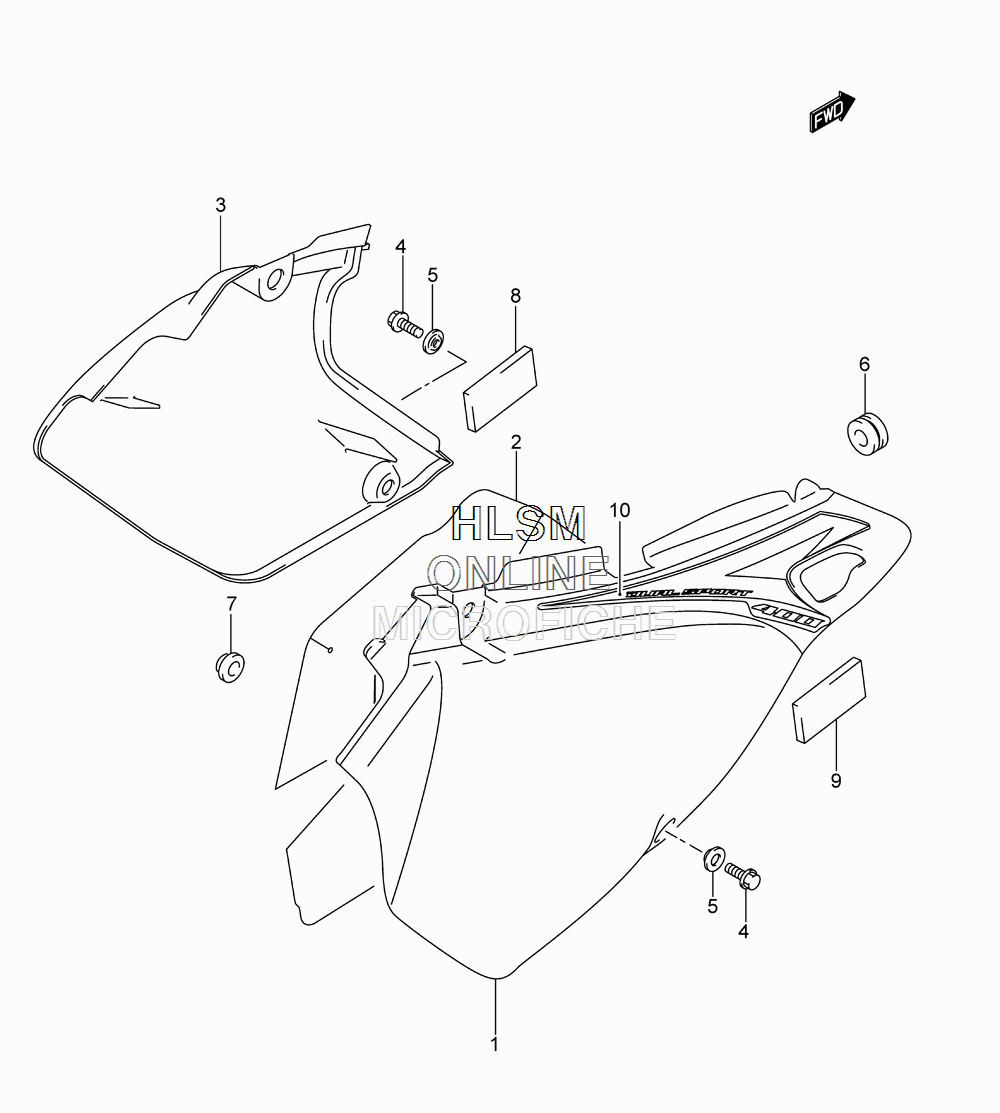

SIDE COVER (CANADA ONLY) для Suzuki DR-Z400 - 2013 года выпуска
-
№АртикулНазвание
-
147111-29FC0-019 COVER, FRAME RIGHT (019 - BLACK)COVER, FRAME RIGHT (019 - BLACK)
-
147111-29FC0-30H COVER, FRAME RIGHT (30H - WHITE)COVER, FRAME RIGHT (30H - WHITE)
-
247166-29F00 SHIELD, FRAME COVER RIGHTSHIELD, FRAME COVER RIGHT
-
347211-29FA0-019 COVER, FRAME LEFT (019 - BLACK)COVER, FRAME LEFT (019 - BLACK)
-
347211-29FA0-30H COVER, FRAME LEFT (30H - WHITE)COVER, FRAME LEFT (30H - WHITE)
-
409103-06273 BOLT (6X12)BOLT (6X12)
-
509169-06031 WASHERWASHER
-
609320-06504 CUSHIONCUSHION
-
709321-10018 CUSHIONCUSHION
-
847161-29F00 CUSHION, FRAME COVER LEFTCUSHION, FRAME COVER LEFT
-
971762-65G10 CUSHION, FRAME COVER RIGHT FRONTCUSHION, FRAME COVER RIGHT FRONT
-
1068135-29FD0-HMC TAPE, FRAME COVER RIGHT (SILVER/BLACK FOR 019)TAPE, FRAME COVER RIGHT (SILVER/BLACK FOR 019)
-
1068135-29FD0-HMD TAPE, FRAME COVER RIGHT (BLUE/WHITE FOR 30H)TAPE, FRAME COVER RIGHT (BLUE/WHITE FOR 30H)
