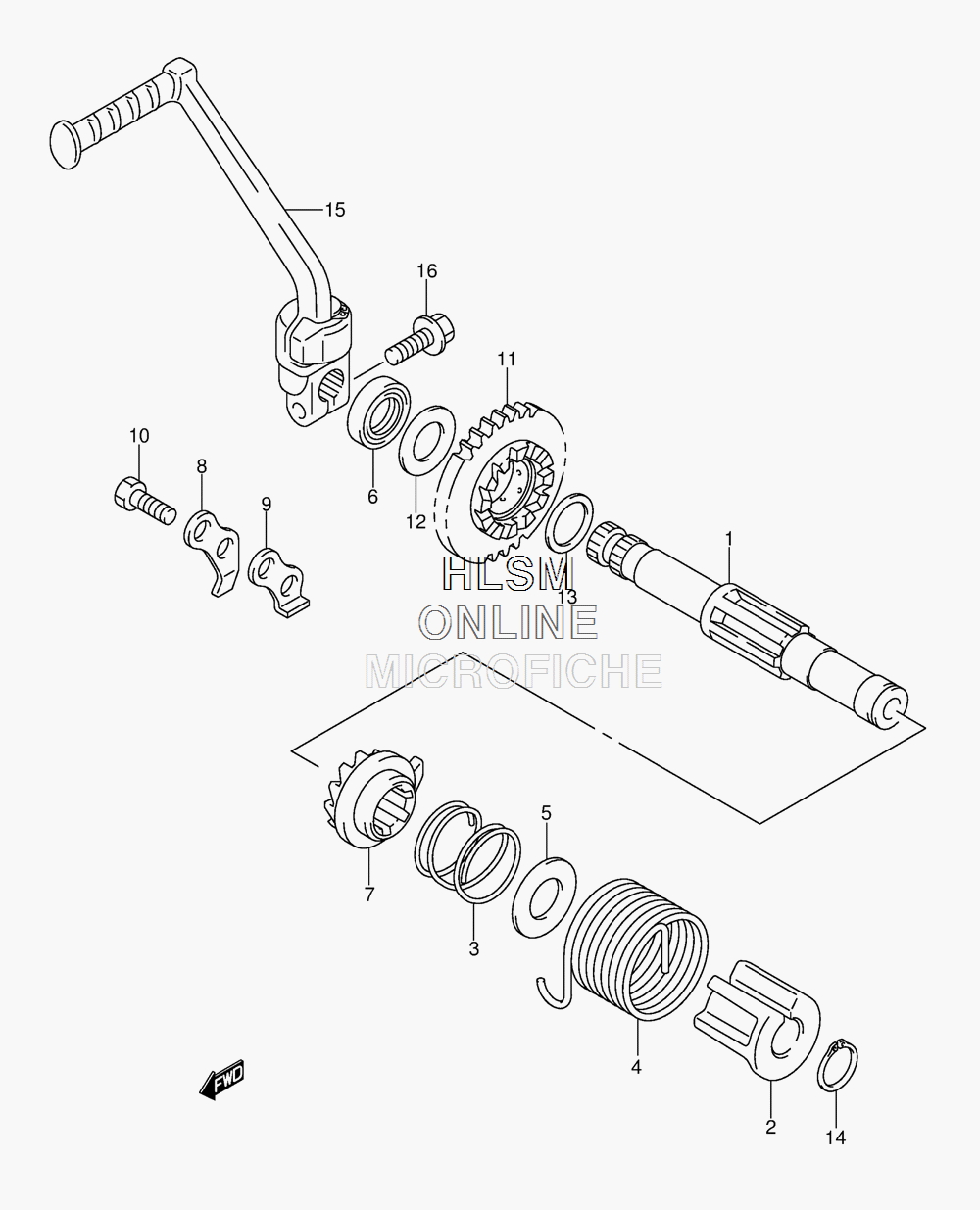

KICK STARTER SPINDLE для Suzuki DR-Z125L4 - 2014 года выпуска
-
№АртикулНазвание
-
126211-05220 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-05200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
309440-32006 SPRINGSPRING
-
409448-45003 SPRINGSPRING
-
508211-17341 WASHERWASHER
-
609285-16003 OIL SEAL (16X24X5)OIL SEAL (16X24X5)
-
726231-38202 STARTER, KICKSTARTER, KICK
-
826232-38200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
926233-32400 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
1009100-08240 BOLT (8X20)BOLT (8X20)
-
1126240-05202 GEAR, KICK STARTER DRIVEGEAR, KICK STARTER DRIVE
-
1209160-16003 WASHER (16X30X1)WASHER (16X30X1)
-
1309181-20139 WASHER (20X26X1.0)WASHER (20X26X1.0)
-
1408331-31179 CIRCLIPCIRCLIP
-
1526300-42A20 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1601500-0825B BOLTBOLT
