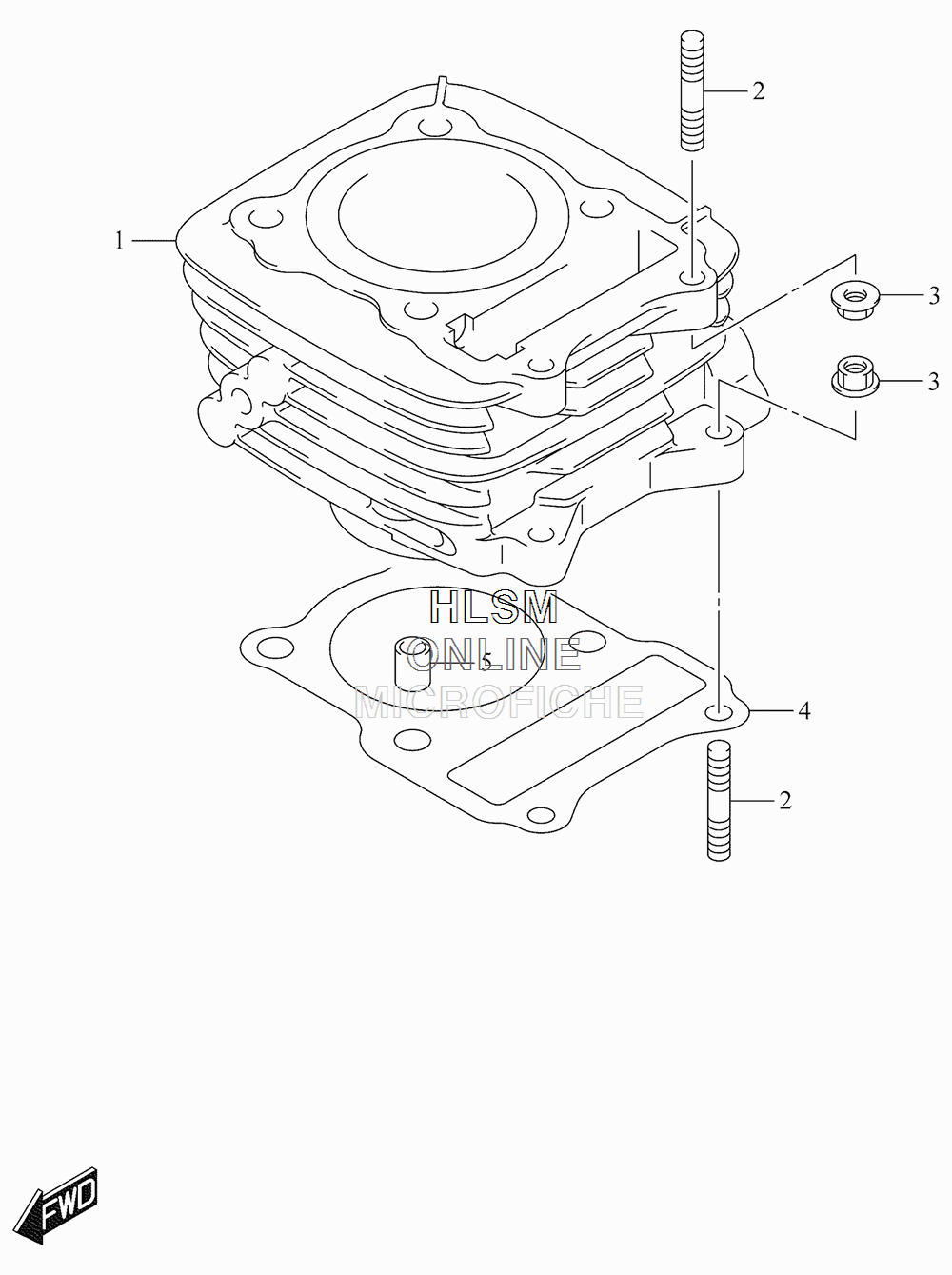

CYLINDER для Suzuki DR-Z125L [DRZ125LL5] - 2015 года выпуска
-
№АртикулНазвание
-
111210-44A11-0F0 CYLINDERCYLINDER
-
201421-0625A STUD BOLTSTUD BOLT
-
308316-1006A NUTNUT
-
411241-05311 GASKET, CYLINDERGASKET, CYLINDER
-
504211-11149 KNOCK PINKNOCK PIN
