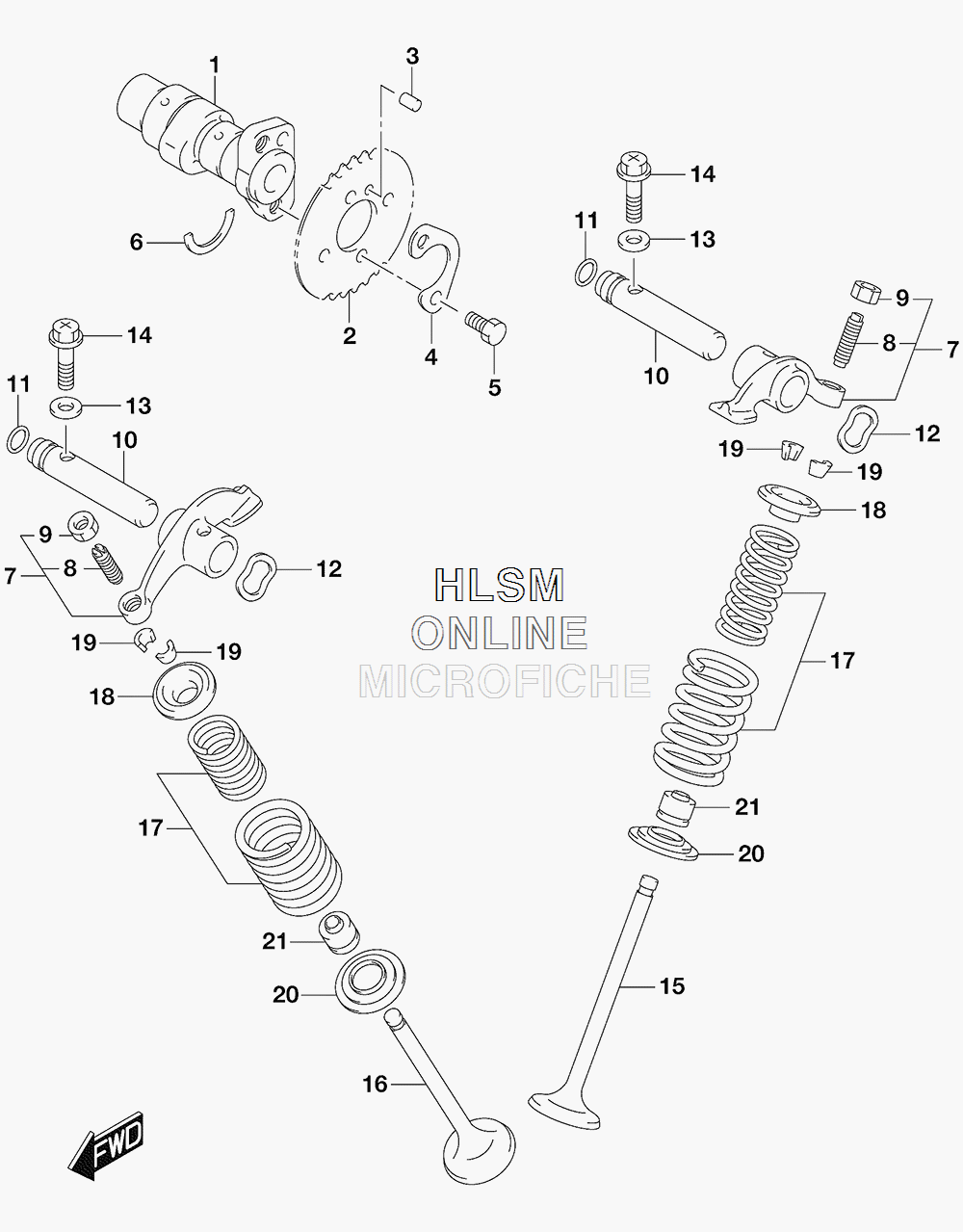

CAMSHAFT W/ VALVES для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
112711-42A10 CAM SHAFTCAM SHAFT
-
212741-05201 SPROCKET, CAM SHAFT (NT:32)SPROCKET, CAM SHAFT (NT:32)
-
309261-05005 PIN (5X8)PIN (5X8)
-
412747-05202 WASHER, SPROCKETWASHER, SPROCKET
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-25C10 ARM, VALVE ROCKERARM, VALVE ROCKER
-
812842-32411 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
912843-32400 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
1012861-05201 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209164-12021 WASHER (37.3X52X1)WASHER (37.3X52X1)
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1402162-0625A SCREWSCREW
-
1512911-42A00 VALVE, INTAKEVALVE, INTAKE
-
1612912-42A00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712920-05210 SPRING SET, VALVESPRING SET, VALVE
-
1812931-49201 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1912932-24400 COTTER, VALVECOTTER, VALVE
-
2012933-49201 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
2109289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
