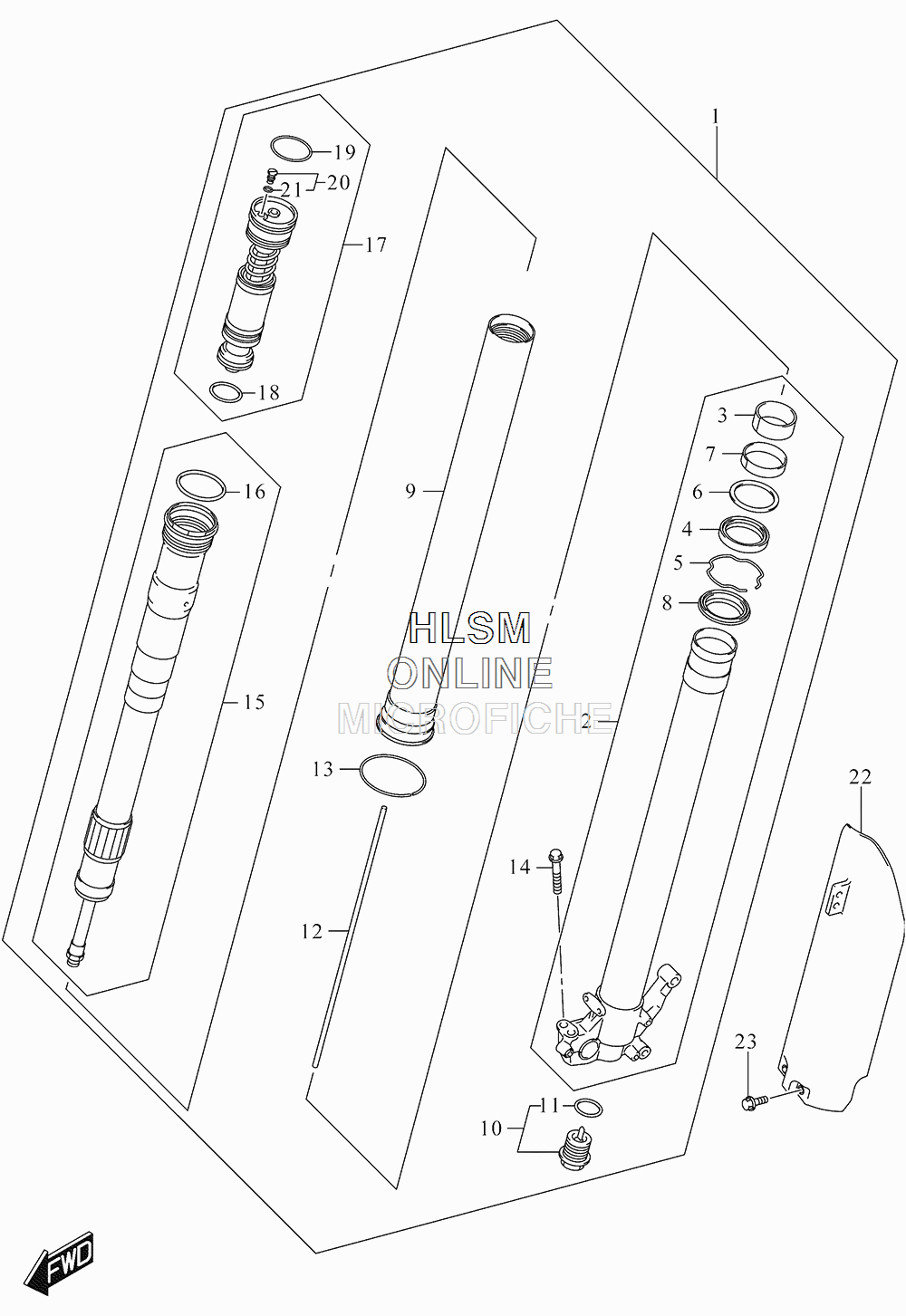

LH FRONT FORK DAMPER для Suzuki RM-Z450 [RMZ450L5] - 2015 года выпуска
-
№АртикулНазвание
-
151104-28H40 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
251120-28H40 TUBE, INNER (LH)TUBE, INNER (LH)
-
351127-28H40 BUSH, SLIDEBUSH, SLIDE
-
451153-36E00 SEAL, OILSEAL, OIL
-
551156-36E00 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
651158-36E00 SPACER, SEALSPACER, SEAL
-
751167-28H40 BUSH, GUIDEBUSH, GUIDE
-
851173-28H40 SEAL, DUSTSEAL, DUST
-
951140-28H40 TUBE, OUTERTUBE, OUTER
-
1051170-28H40 BOLT, CENTERBOLT, CENTER
-
1151122-28H40 O RINGO RING
-
1251191-28H30 ROD, PUSHROD, PUSH
-
1351211-28H40 STOPPER RINGSTOPPER RING
-
1451328-37F80 BOLTBOLT
-
1551190-28H40 DAMPERDAMPER
-
1651118-28H30 O RINGO RING
-
1751350-28H40 BOLT, FORKBOLT, FORK
-
1851175-28H40 O RINGO RING
-
1951187-47H00 O RINGO RING
-
2051357-36F20 BOLT, PLUGBOLT, PLUG
-
2151358-28E30 O RINGO RING
-
2251510-28H70 PROTECTOR, FRONT FORK (LH)PROTECTOR, FRONT FORK (LH)
-
2309111-06098 BOLT (6X10)BOLT (6X10)
