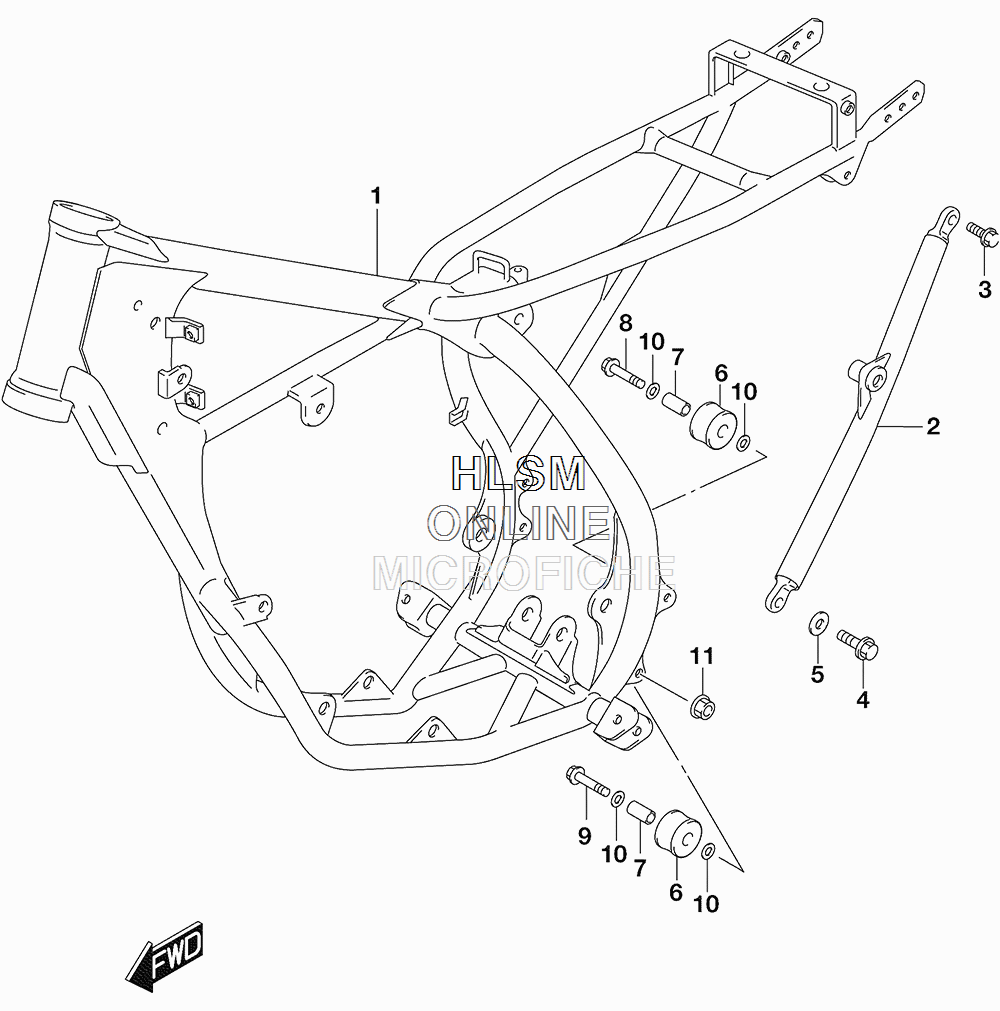

FRAME для Suzuki RM85L [RM85LL5] - 2015 года выпуска
-
№АртикулНазвание
-
141100-03BB1-YU8 FRAME (GRAY)FRAME (GRAY)
-
241670-02B30-YU8 TUBE, FRAME SIDE LEFT HAND (GRAY)TUBE, FRAME SIDE LEFT HAND (GRAY)
-
309100-08274 BOLT (8X22) (UPPER)BOLT (8X22) (UPPER)
-
409100-08284 BOLT (8X16) (LOWER)BOLT (8X16) (LOWER)
-
509160-08120 WASHER (8.5X18X2) (LOWER)WASHER (8.5X18X2) (LOWER)
-
643911-35B00 ROLLER, CHAIN CONTROLROLLER, CHAIN CONTROL
-
709180-08214 SPACER (8.6X12.2X25.5)SPACER (8.6X12.2X25.5)
-
809103-08178 BOLT (8X38) (UPPER)BOLT (8X38) (UPPER)
-
909103-08339 BOLT (8X55) (LOWER)BOLT (8X55) (LOWER)
-
1009181-08167 SHIM (8X16X1)SHIM (8X16X1)
-
1108319-3108A NUTNUT
