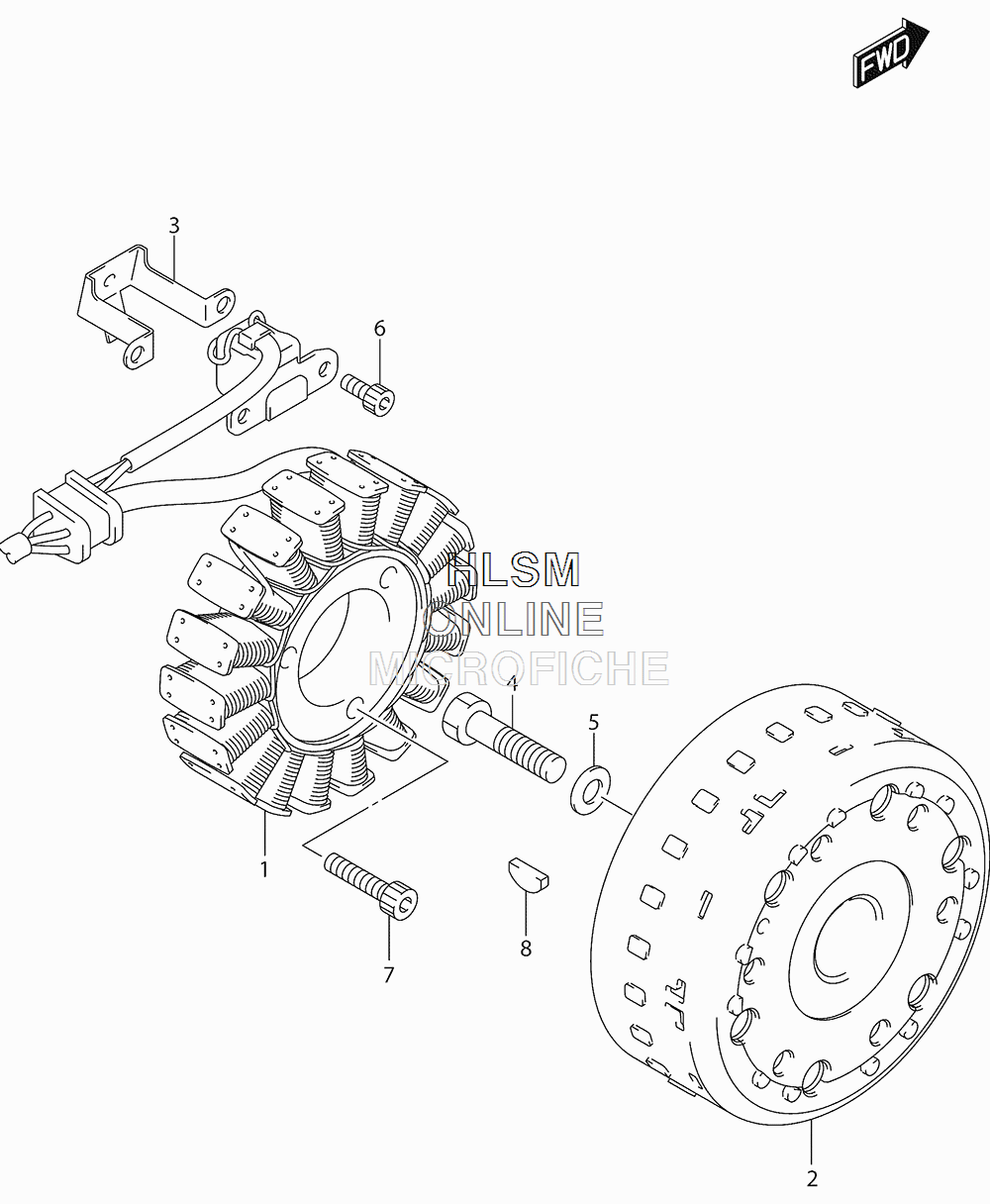

MAGNETO для Suzuki V-STROM 650 ADVENTURE ABS - 2016 года выпуска
-
№АртикулНазвание
-
132101-17G11 STATOR ASSYSTATOR ASSY
-
232102-17G10 ROTOR ASSYROTOR ASSY
-
332371-19F10 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
409103-12004 BOLT (12X40)BOLT (12X40)
-
509160-12036 WASHER (12X30X3)WASHER (12X30X3)
-
607130-0512A BOLTBOLT
-
707130-0635A BOLTBOLT
-
809420-04008 KEYKEY
