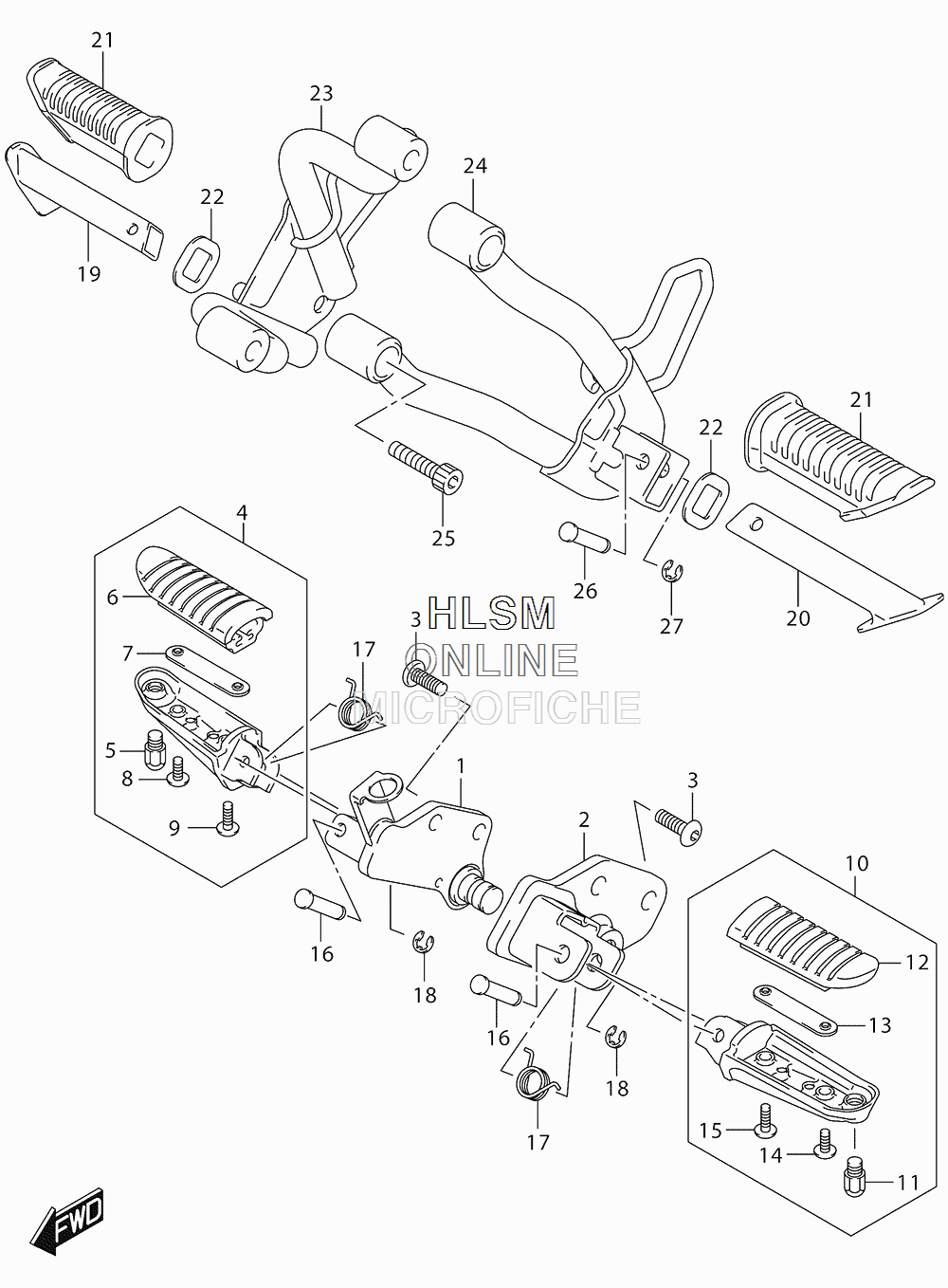

FOOTREST для Suzuki V-STROM 650X EXP ABS - 2016 года выпуска
-
№АртикулНазвание
-
143510-11J00-YAP BRACKET, FRONT RH (BLACK)BRACKET, FRONT RH (BLACK)
-
243520-11J00-YAP BRACKET, FRONT LH (BLACK)BRACKET, FRONT LH (BLACK)
-
309106-08150 BOLT (8X23)BOLT (8X23)
-
443501-06G01 FOOTREST ASSY, FRONT RHFOOTREST ASSY, FRONT RH
-
543576-07D01 ...SENSOR, FOOTREST...SENSOR, FOOTREST
-
643551-06G00 ...RUBBER...RUBBER
-
743552-06G00 ...PLATE...PLATE
-
802142-0516B ...SCREW (OUTER)...SCREW (OUTER)
-
902142-0520B ...SCREW (INNER)...SCREW (INNER)
-
1043502-06G01 FOOTREST ASSY, FRONT LHFOOTREST ASSY, FRONT LH
-
1143576-07D01 ...SENSOR, FOOTREST...SENSOR, FOOTREST
-
1243551-06G00 ...RUBBER...RUBBER
-
1343552-06G00 ...PLATE...PLATE
-
1402142-0516B ...SCREW (OUTER)...SCREW (OUTER)
-
1502142-0520B ...SCREW (INNER)...SCREW (INNER)
-
1609208-08010 PIN (8X33.2)PIN (8X33.2)
-
1709448-18022 SPRINGSPRING
-
1808332-1106B E RINGE RING
-
1943610-34A00 BAR, PILLION FOOTREST RHBAR, PILLION FOOTREST RH
-
2043710-34A00 BAR, PILLION FOOTREST LHBAR, PILLION FOOTREST LH
-
2143612-33G01 RUBBER, PILLION FOOTRESTRUBBER, PILLION FOOTREST
-
2243631-34A01 WASHER, FOOTREST RUBBERWASHER, FOOTREST RUBBER
-
2343810-27G10-YAP BRACKET, PILLION RH (BLACK)BRACKET, PILLION RH (BLACK)
-
2443820-27G01-YAP BRACKET, PILLION LH (BLACK)BRACKET, PILLION LH (BLACK)
-
2509106-08074 BOLT (8X40)BOLT (8X40)
-
2609208-06008 PIN (6X29.5)PIN (6X29.5)
-
2708332-1104A E RINGE RING
