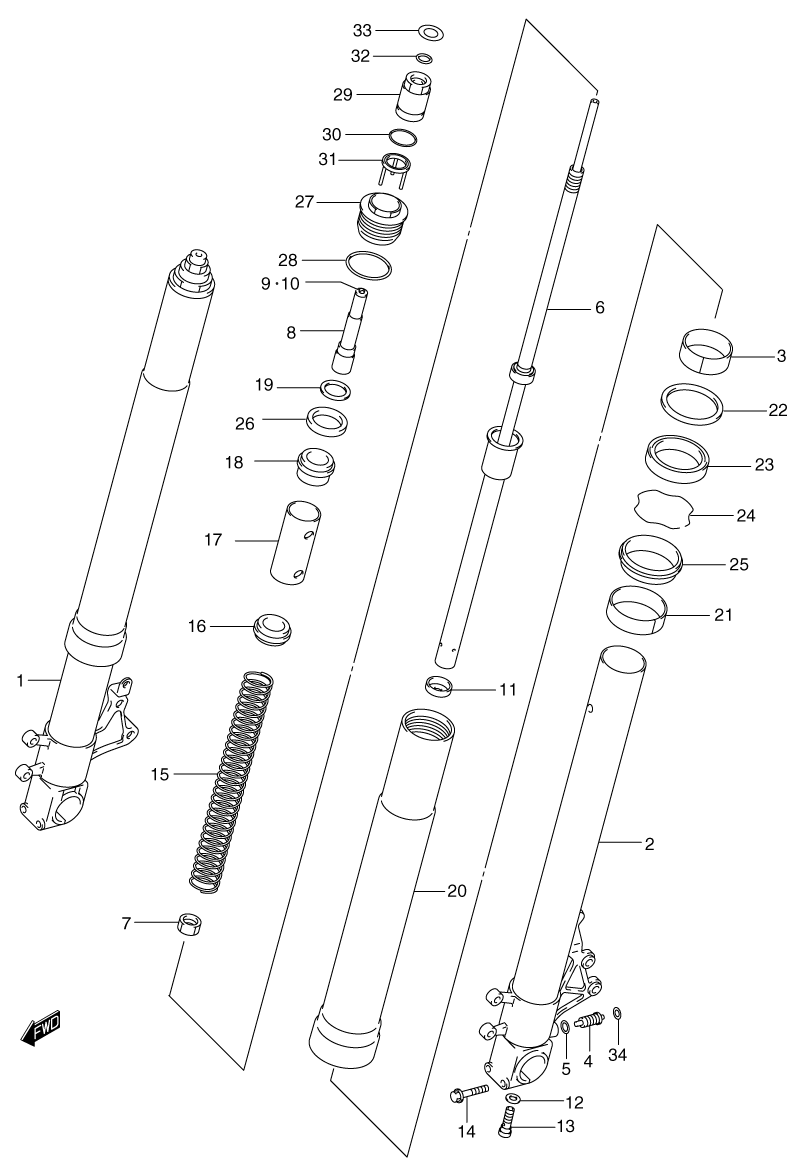

SUSPENSION - FRONT FORK для Suzuki GSX-R750 Y - 2000 года выпуска
-
№АртикулНазвание
-
1A51103-35F10 DAMPER ASSY., FORK (FRONT) (RIGHT)DAMPER ASSY., FORK (FRONT) (RIGHT)
-
1A51104-35F10 DAMPER ASSY., FORK (FRONT) (LEFT)DAMPER ASSY., FORK (FRONT) (LEFT)
-
151110-35F00 ...TUBE (INNER) (RIGHT)...TUBE (INNER) (RIGHT)
-
251120-35F00 ...TUBE (INNER) (LEFT)...TUBE (INNER) (LEFT)
-
351121-13E00 ...BUSH, SLIDE...BUSH, SLIDE
-
451830-33E00 ...PIECE, ADJUSTER (LOWER)...PIECE, ADJUSTER (LOWER)
-
509280-14011 ...O-RING...O-RING
-
652110-35F00 ...ROD, DAMPER...ROD, DAMPER
-
751827-33E00 ......NUT......NUT
-
851829-33E20 ......CASE, ADJUST......CASE, ADJUST
-
951821-33E00 ......PIECE, ADJUST......PIECE, ADJUST
-
1009280-03002 ......O-RING......O-RING
-
1151815-33E00 ...PLATE, CENTERING...PLATE, CENTERING
-
1209161-10009 ...GASKET...GASKET
-
1351147-17C00 ...BOLT...BOLT
-
1451166-35F00 ...BOLT, AXLE HOLDLER...BOLT, AXLE HOLDLER
-
1551171-35F00 ...SPRING...SPRING
-
1651172-17E00 ...JOINT, SPRING (LOWER)...JOINT, SPRING (LOWER)
-
1751176-33E00 ...SPACER, SPRING...SPACER, SPRING
-
1851175-22D00 ...JOINT, SPRING (UPPER)...JOINT, SPRING (UPPER)
-
1951172-34370 ...WASHER, JOINT...WASHER, JOINT
-
2051131-35F00 ...TUBE (OUTER)...TUBE (OUTER)
-
2151152-13E00 ...BUSH, GUIDE...BUSH, GUIDE
-
2251168-17C00 ...SPACER, SEAL...SPACER, SEAL
-
2351153-14D00 ...SEAL, OIL...SEAL, OIL
-
2451556-38B00 ...RING, STOPPER...RING, STOPPER
-
2551173-29E00 ...SEAL, DUST...SEAL, DUST
-
2651193-17D00 ...RUBBER, SEAT...RUBBER, SEAT
-
2751189-35F00 ...BOLT, FORK...BOLT, FORK
-
2851187-08D00 ...O-RING, FORK BOLT...O-RING, FORK BOLT
-
2951828-35F00 ...ADJUSTER, SPRING...ADJUSTER, SPRING
-
3051199-17D00 ...O-RING, ADJUSTER (OUTER)...O-RING, ADJUSTER (OUTER)
-
3151823-22D30 ...PLATE, SPRING ADJUSTER...PLATE, SPRING ADJUSTER
-
3251837-17D00 ...RING, STOPPER...RING, STOPPER
-
3351149-42E00 ...LABEL, ADJUST PIECE (UPPER)...LABEL, ADJUST PIECE (UPPER)
-
3451169-42E00 ...LABEL, ADJUST PIECE (LOWER)...LABEL, ADJUST PIECE (LOWER)
