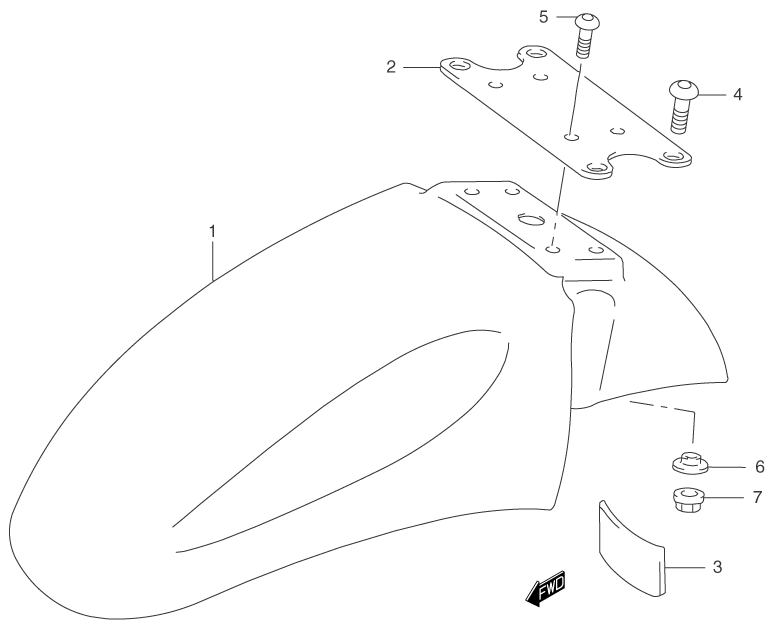

FENDER - FRONT для Suzuki GSX750F Y - 2000 года выпуска
-
№АртикулНазвание
-
1-153111-08F00-22U FENDER (FRONT) (22U - MAROON)FENDER (FRONT) (22U - MAROON)
-
1-253111-08F00-Y9E FENDER (FRONT) (Y9E - GRAY)FENDER (FRONT) (Y9E - GRAY)
-
253114-26D00 BRACE, FENDER (FRONT)BRACE, FENDER (FRONT)
-
353146-20C00 CUSHION, FENDER (UNDER)CUSHION, FENDER (UNDER)
-
409139-06027 SCREW, FENDERSCREW, FENDER
-
509139-05032 SCREW, BRACESCREW, BRACE
-
609169-05010 WASHERWASHER
-
7-209159-05043 NUTNUT
