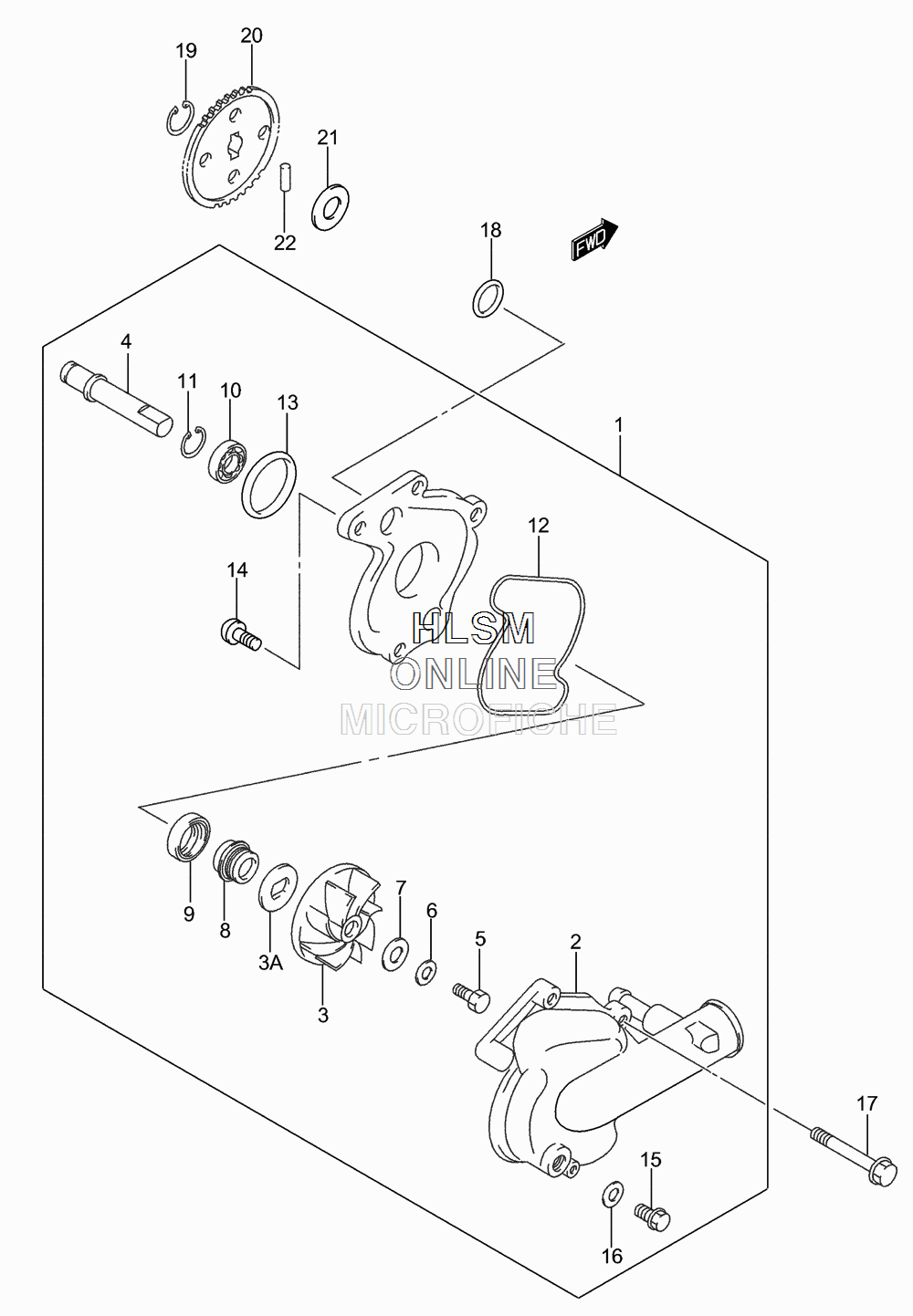

WATER PUMP для Suzuki SV650 Y - 2000 года выпуска
-
№АртикулНазвание
-
117400-19F02 PUMP ASSY, WATERPUMP ASSY, WATER
-
217411-19F00 CASE, WATER PUMPCASE, WATER PUMP
-
317491-19F01 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3A17533-02F00 WASHER, IMPELLERWASHER, IMPELLER
-
417511-19F00 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
509100-06162 BOLT (6X13)BOLT (6X13)
-
509100-06162 BOLT (6X13)BOLT (6X13)
-
609164-06006 LOCK WASHERLOCK WASHER
-
709168-06025 GASKET (6X15X2.2)GASKET (6X15X2.2)
-
817470-02F10 SEAL, MECHANICALSEAL, MECHANICAL
-
909283-10004 OIL SEAL (10X21X5)OIL SEAL (10X21X5)
-
1009262-10014 BEARING (10X26X8)BEARING (10X26X8)
-
1108332-11086 E RINGE RING
-
1217418-19F00 O RINGO RING
-
1317435-33400 O RINGO RING
-
1402112-06163 SCREWSCREW
-
1517415-14300 BOLT, DRAINBOLT, DRAIN
-
1609168-08008 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1709103-06206 BOLTBOLT
-
1809280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
1908331-31106 CIRCLIPCIRCLIP
-
2017461-19F00 GEAR, WATER PUMP DRIVENGEAR, WATER PUMP DRIVEN
-
2109181-10158 SHIMSHIM
-
2209261-04002 ROLLERROLLER
