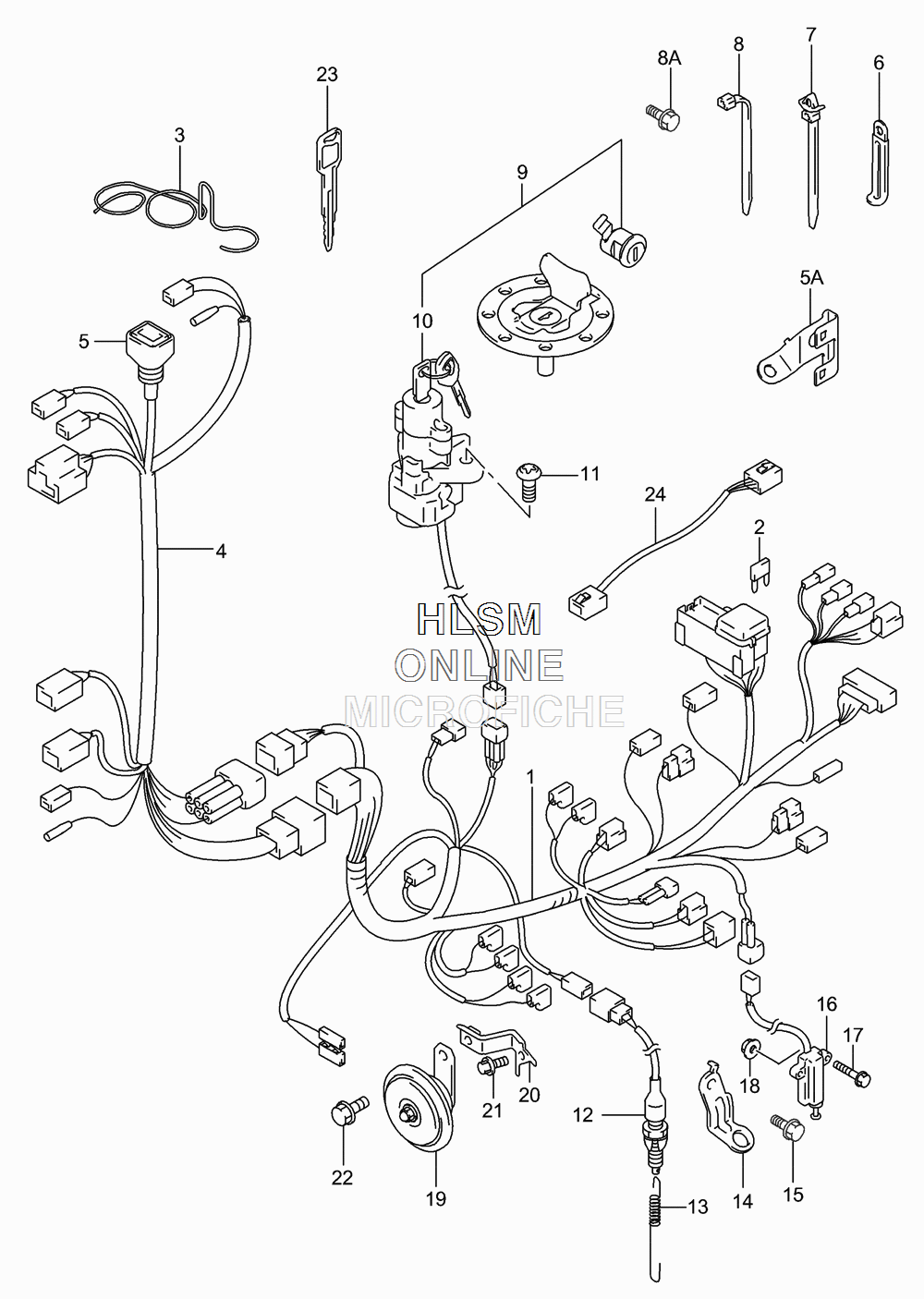

ELECTRICAL - WIRING HARNESS для Suzuki SV650S Y - 2000 года выпуска
-
№АртикулНазвание
-
136610-19F00 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
209481-15501 FUSE (15A)FUSE (15A)
-
336619-33E00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
436620-19F10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536618-33E00 COVER, SPEEDOMETER COUPLERCOVER, SPEEDOMETER COUPLER
-
609404-06432 CLAMP (L:80)CLAMP (L:80)
-
609404-06435 CLAMP (L:135)CLAMP (L:135)
-
709407-11402 CLAMP (L:90)CLAMP (L:90)
-
709407-17401 CLAMP (L:150)CLAMP (L:150)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
8A01550-06123 BOLT, WIRING HARNESS (CALIF. ONLY)BOLT, WIRING HARNESS (CALIF. ONLY)
-
937101-19830 LOCK SET (ALL EXCEPT CALIF.)LOCK SET (ALL EXCEPT CALIF.)
-
937101-19840 LOCK SET (INC. 10) (CALIF. ONLY)LOCK SET (INC. 10) (CALIF. ONLY)
-
1037100-19F00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1109139-08016 BOLT (8X20)BOLT (8X20)
-
1237740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1309443-06005 SPRINGSPRING
-
1443251-19F00 BRACKET, STOP LAMP SWITCHBRACKET, STOP LAMP SWITCH
-
1501550-06123 BOLTBOLT
-
1637840-19F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1737849-19F00 BOLTBOLT
-
1808316-10063 NUTNUT
-
1938500-02F60 HORN ASSYHORN ASSY
-
2038590-19F00 BRACKET, HORNBRACKET, HORN
-
2101550-06123 BOLTBOLT
-
2201550-08123 BOLTBOLT
-
2337146-33E00 KEY,.BLANKKEY,.BLANK
-
2436854-19F00 WIRE, STARTER CONTROLWIRE, STARTER CONTROL
