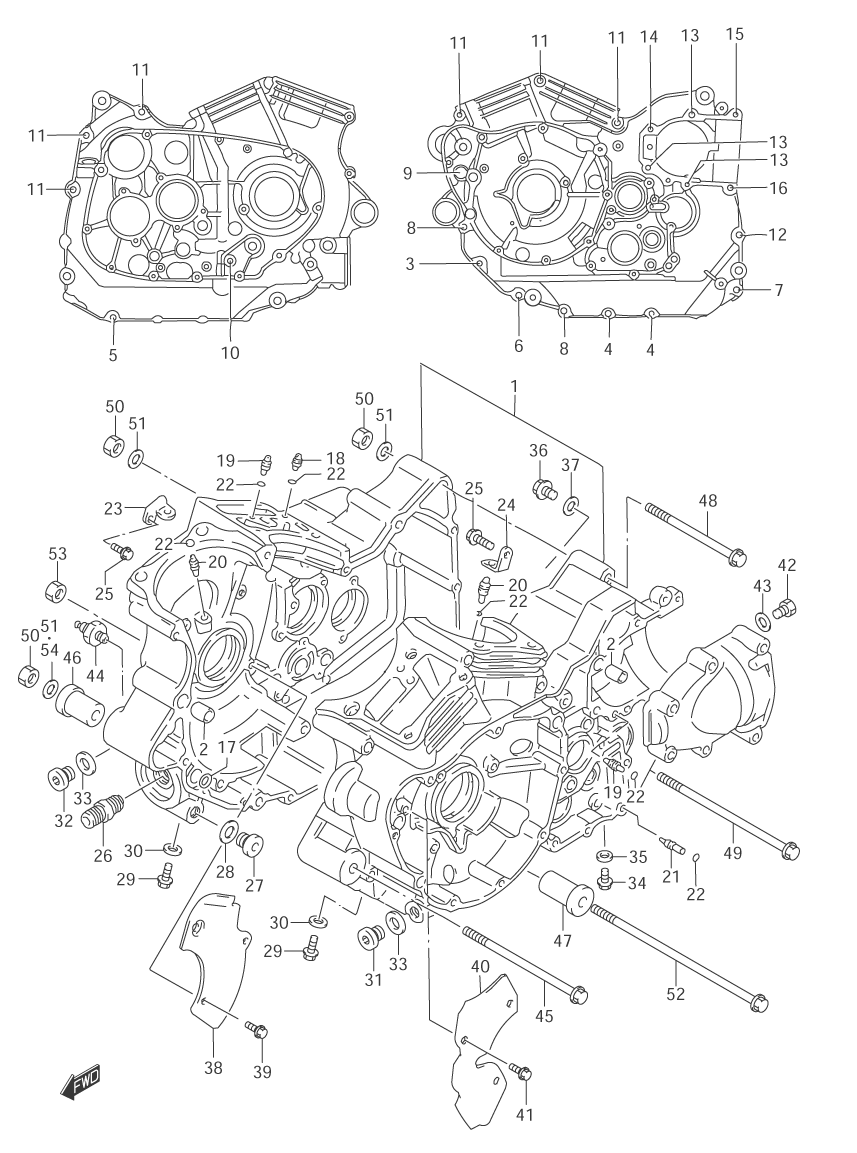

CRANKCASE для Suzuki VL1500 Y - 2000 года выпуска
-
№АртикулНазвание
-
111300-10870 CRANKCASE SETCRANKCASE SET
-
209206-11017 ...PIN...PIN
-
301550-06553 ...BOLT...BOLT
-
401550-06653 ...BOLT...BOLT
-
501550-06853 ...BOLT...BOLT
-
601550-08553 ...BOLT...BOLT
-
701550-08653 ...BOLT...BOLT
-
801550-08703 ...BOLT (8X70)...BOLT (8X70)
-
901550-08903 ...BOLT...BOLT
-
1009103-08098 ...BOLT (8X115)...BOLT (8X115)
-
1109103-08164 ...BOLT (8X95)...BOLT (8X95)
-
1201550-08803 ...BOLT (8X80)...BOLT (8X80)
-
1301550-08403 ...BOLT...BOLT
-
1401550-08503 ...BOLT...BOLT
-
1501550-08553 ...BOLT...BOLT
-
1601550-08653 ...BOLT...BOLT
-
1709280-12009 ...O RING (D:1.9,ID:12.6)...O RING (D:1.9,ID:12.6)
-
1809493-44002 ...JET, HEAD COOLING...JET, HEAD COOLING
-
1909493-28010 ...JET, HEAD/SECONDARY...JET, HEAD/SECONDARY
-
2009493-80009 ...JET, PISTON COOLING...JET, PISTON COOLING
-
2109493-24011 ...JET, MISSION...JET, MISSION
-
2209280-04004 ...O RING, JET (D:1.2,ID:4.0)...O RING, JET (D:1.2,ID:4.0)
-
2316438-38B00 ...PLATE, PISTON JET, FRONT...PLATE, PISTON JET, FRONT
-
2416439-38B00 ...PLATE, PISTON JET, REAR...PLATE, PISTON JET, REAR
-
2501550-06123 ...BOLT...BOLT
-
2616591-06B00 ...UNION, OIL FILTER STAND...UNION, OIL FILTER STAND
-
2709248-16012 PLUG, CONTROL PLUNGER (16X8)PLUG, CONTROL PLUNGER (16X8)
-
2809168-16002 GASKETGASKET
-
2901550-08123 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3009168-08015 GASKETGASKET
-
3109248-14005 PLUG, MAIN GALLERYPLUG, MAIN GALLERY
-
3209247-14027 PLUG, MAIN GALLERY NO.2PLUG, MAIN GALLERY NO.2
-
3309168-14002 GASKETGASKET
-
3401550-06103 PLUG, MISSION GALLERYPLUG, MISSION GALLERY
-
3509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3609247-12006 PLUG, MAIN GALLERY ENDPLUG, MAIN GALLERY END
-
3709168-12002 GASKETGASKET
-
3811521-38B01 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
3909125-06110 BOLTBOLT
-
4011522-10F00 PLATE, OIL SEPARATOR FRONTPLATE, OIL SEPARATOR FRONT
-
4101547-06123 BOLTBOLT
-
4209247-12106 PLUG, OIL DRAINPLUG, OIL DRAIN
-
4309168-12002 GASKETGASKET
-
4437820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
4509103-10145 BOLT (10X205)BOLT (10X205)
-
46-211621-10F10 SPACERSPACER
-
4711610-20C00 SPACER (L:27)SPACER (L:27)
-
4809103-10119 BOLT (10X140)BOLT (10X140)
-
4909103-10278 BOLT (10X160)BOLT (10X160)
-
5008319-31103 NUTNUT
-
5209103-10226 BOLT (10X260)BOLT (10X260)
-
5309159-10047 NUTNUT
-
5409160-10502 WASHER, FRONT LOWWASHER, FRONT LOW
