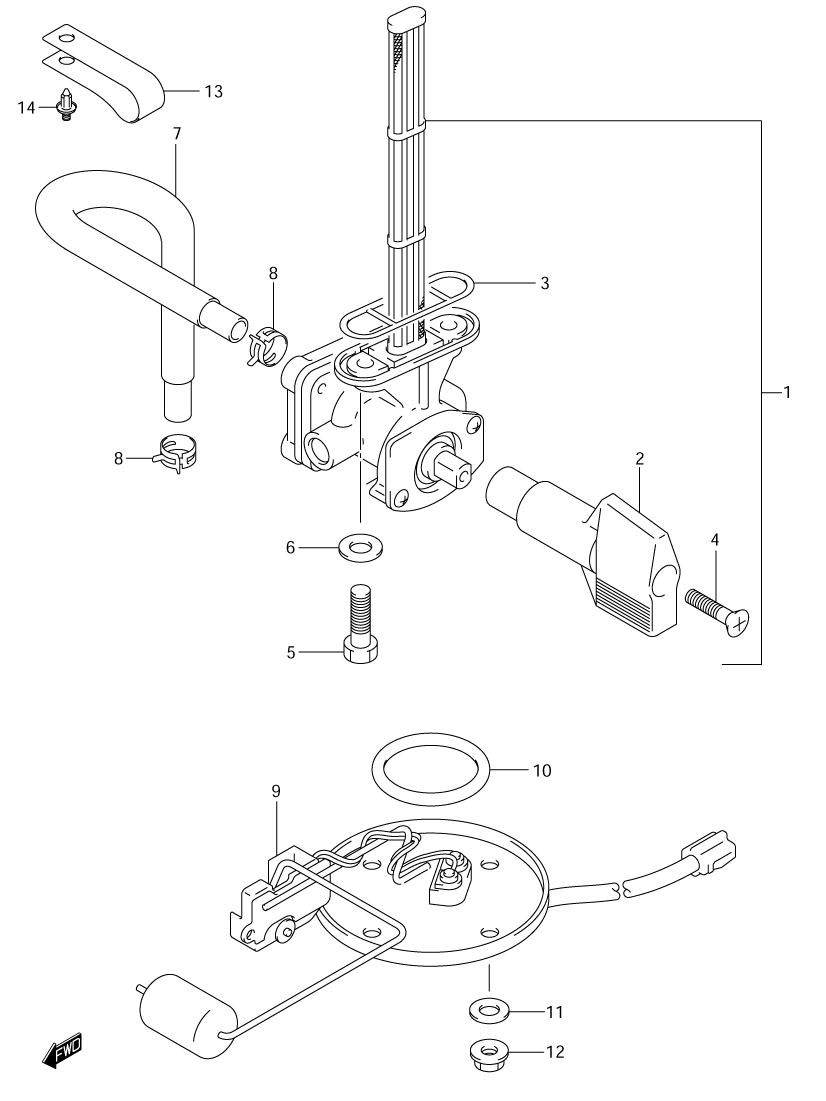

FUEL COCK ASSY. для Suzuki GSF1200 K1 - 2001 года выпуска
-
№АртикулНазвание
-
144300-32F00 COCK ASSY., FUELCOCK ASSY., FUEL
-
244306-26E00 ...LEVER, FUEL COCK...LEVER, FUEL COCK
-
344348-87420 ...GASKET, JOINT...GASKET, JOINT
-
402122-04203 ...SCREW...SCREW
-
534826-03F00 BOLT, FUELBOLT, FUEL
-
609168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
744430-32F00 HOSE, FUELHOSE, FUEL
-
809401-13417 CLIPCLIP
-
934810-31F00 GAUGE ASSY., FUEL LEVELGAUGE ASSY., FUEL LEVEL
-
1034825-31F00 O-RINGO-RING
-
1109160-06128 WASHER (6.5X15X1.6)WASHER (6.5X15X1.6)
-
1208319-21063 NUTNUT
-
1344462-32F00 CLAMP, FUEL HOSECLAMP, FUEL HOSE
-
1409409-08308-5ES CLIP (BLACK)CLIP (BLACK)
