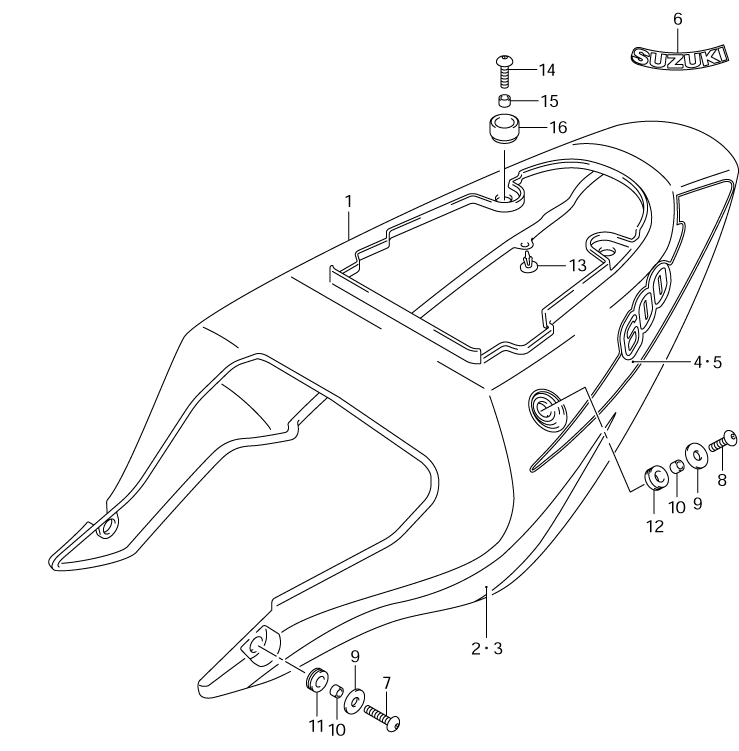

SIDE COVER для Suzuki GSX-R600 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-147100-39F00-0JW COVER, FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)COVER, FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)
-
1-247100-39F00-Y9H COVER, FRAME (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)COVER, FRAME (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
-
2-168135-35F30-1LE ...TAPE (FRONT) (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)...TAPE (FRONT) (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
-
2-268135-35F30-Y7L ...TAPE (FRONT) (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)...TAPE (FRONT) (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
-
3-168145-35F30-1LE ...TAPE (FRONT) (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)...TAPE (FRONT) (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
-
3-268145-35F30-Y7L ...TAPE (FRONT) (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)...TAPE (FRONT) (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
-
4-168135-39F00-K8S ...TAPE (REAR) (RIGHT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)...TAPE (REAR) (RIGHT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
-
4-268135-39F00-FM6 ...TAPE (REAR) (RIGHT) (FOR BP9 - YELLOW/BLACK)...TAPE (REAR) (RIGHT) (FOR BP9 - YELLOW/BLACK)
-
5-168145-39F00-K8S ...TAPE (REAR) (LEFT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)...TAPE (REAR) (LEFT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
-
5-268145-39F00-FM6 ...TAPE (REAR) (FM6 - BLACK/RED/YELLOW) (FOR BP9 - YELLOW/BLACK)...TAPE (REAR) (FM6 - BLACK/RED/YELLOW) (FOR BP9 - YELLOW/BLACK)
-
6-168131-39F00-019 ...EMBLEM (REAR) (019 - BLACK) (FOR L99 - WHITE/BLUE)...EMBLEM (REAR) (019 - BLACK) (FOR L99 - WHITE/BLUE)
-
6-268131-39F00-Y7L ...EMBLEM (REAR) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)...EMBLEM (REAR) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
-
709139-06042 SCREW (FRONT) SIDESCREW (FRONT) SIDE
-
809139-06029 SCREW (REAR) SIDESCREW (REAR) SIDE
-
909160-06047 WASHERWASHER
-
1009180-06283 SPACERSPACER
-
1147161-35F00 CUSHION (FRONT)CUSHION (FRONT)
-
1247161-35F10 CUSHION, (SIDE)CUSHION, (SIDE)
-
1309409-06314-5PK CLIP (LOWER) (BLACK)CLIP (LOWER) (BLACK)
-
1409139-06029 SCREW (UPPER)SCREW (UPPER)
-
1509180-06286 SPACERSPACER
-
1609320-10045 CUSHIONCUSHION
