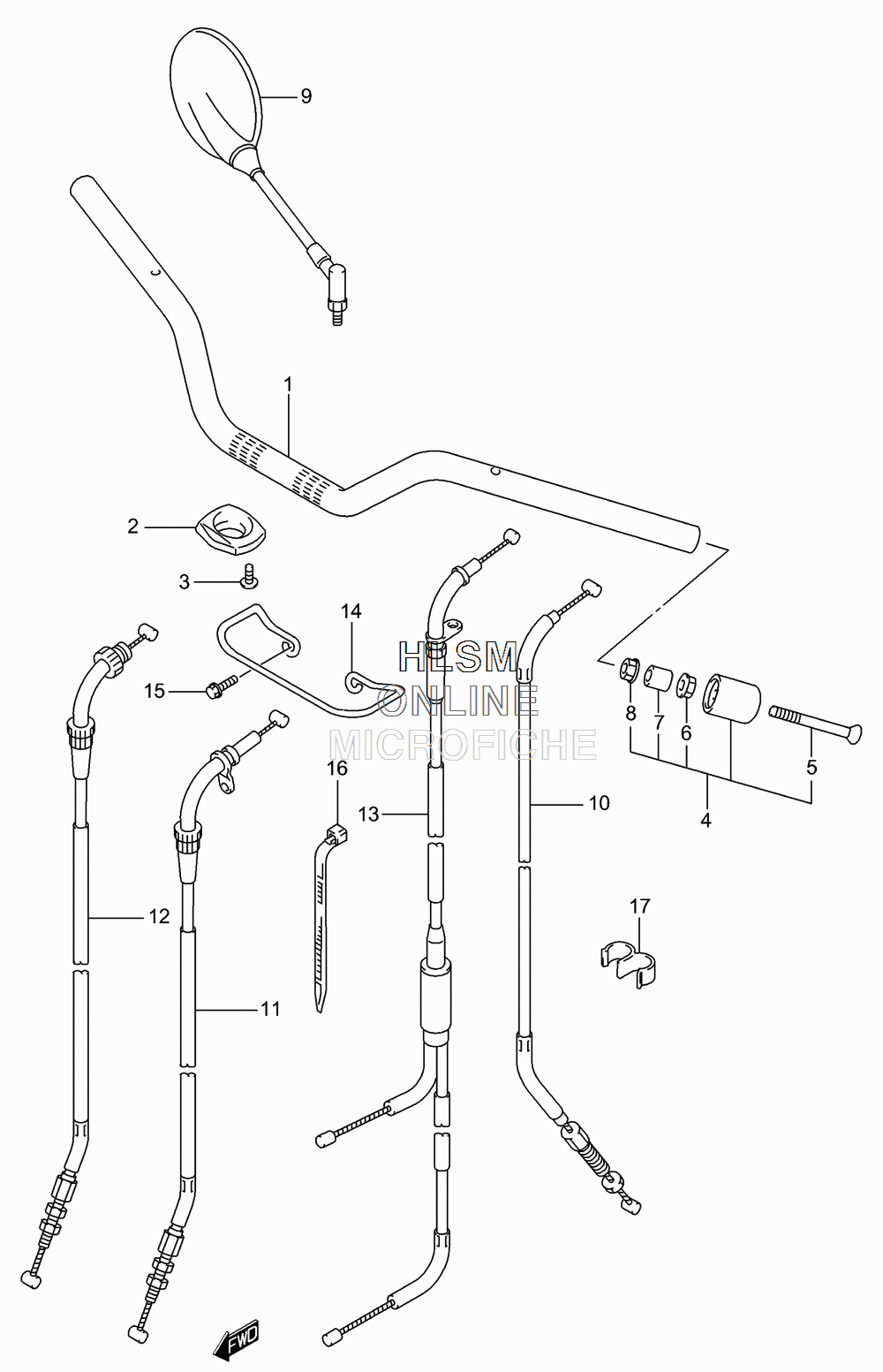

HANDLEBAR для Suzuki SV650 K1 - 2001 года выпуска
-
№АртикулНазвание
-
156111-19F30 HANDLE BARHANDLE BAR
-
256170-19F00 COVER, IGNITION SWITCHCOVER, IGNITION SWITCH
-
302142-04123 SCREWSCREW
-
456200-32821 BALANCER SET, HANDLE BAR (INC. 5-8)BALANCER SET, HANDLE BAR (INC. 5-8)
-
502122-06803 SCREWSCREW
-
608316-10083 NUTNUT
-
756272-44500 EXPANDER, HANDLE BALANCEREXPANDER, HANDLE BALANCER
-
809159-06024 NUTNUT
-
956500-09020 MIRROR ASSY, REAR VIEWMIRROR ASSY, REAR VIEW
-
1058200-20F00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1158300-20F20 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1258300-20F30 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1358410-20F00 CABLE, STARTERCABLE, STARTER
-
1458621-19F10 GUIDE, CABLEGUIDE, CABLE
-
1501550-06123 BOLTBOLT
-
1609407-14407 CLAMPCLAMP
-
1709408-00033 CLIPCLIP
