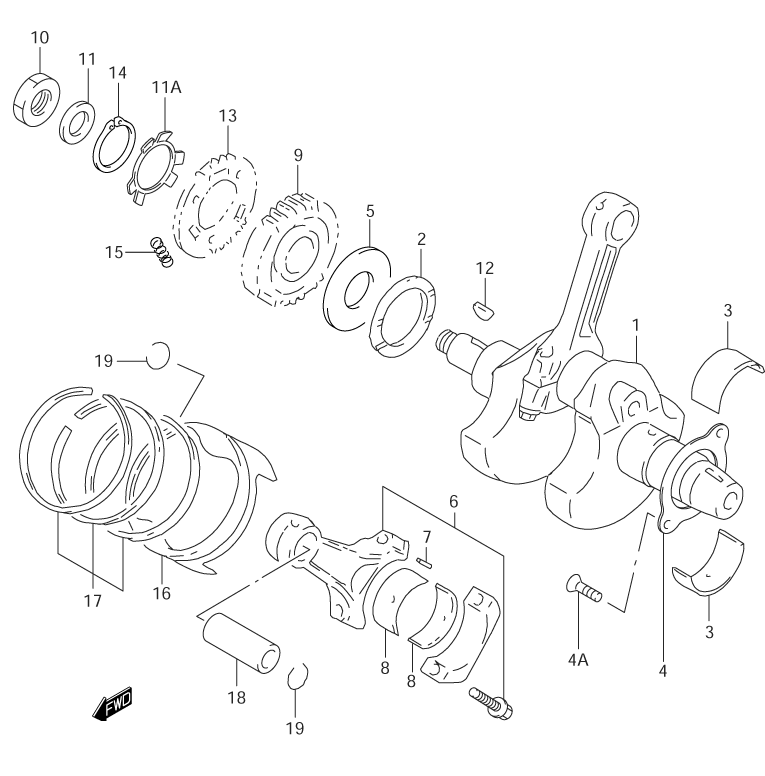

CRANKSHAFT W/ PISTON для Suzuki TL-1000R K1 - 2001 года выпуска
-
№АртикулНазвание
-
112000-02821 CRANKSHAFT SETCRANKSHAFT SET
-
2-109160-48001 ...WASHER, CRANK THRUST (T:1.94...WASHER, CRANK THRUST (T:1.94
-
2-209160-48002 ...WASHER, CRANK THRUST (T:1.96...WASHER, CRANK THRUST (T:1.96
-
2-309160-48003 ...WASHER, CRANK THRUST (T:1.99...WASHER, CRANK THRUST (T:1.99
-
2-409160-48004 ...WASHER, CRANK THRUST (T:2.01...WASHER, CRANK THRUST (T:2.01
-
2-509160-48005 ...WASHER, CRANK THRUST (T:2.04...WASHER, CRANK THRUST (T:2.04
-
2-609160-48006 ...WASHER, CRANK THRUST (T:2.06...WASHER, CRANK THRUST (T:2.06
-
2-709160-48007 ...WASHER, CRANK THRUST (T:2.09...WASHER, CRANK THRUST (T:2.09
-
2-809160-48008 ...WASHER, CRANK THRUST (T:2.11...WASHER, CRANK THRUST (T:2.11
-
2-909160-48009 ...WASHER, CRANK THRUST (T:2.14...WASHER, CRANK THRUST (T:2.14
-
2-1009160-48010 ...WASHER, CRANK THRUST (T:2.16...WASHER, CRANK THRUST (T:2.16
-
3-112229-02F21-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
3-212229-02F21-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
3-312229-02F21-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412541-02F10 RETAINER, CRANKSHAFT BEARING (LEFT)RETAINER, CRANKSHAFT BEARING (LEFT)
-
4A09126-06011 SCREW, BEARING RETAINERSCREW, BEARING RETAINER
-
512652-02F00 WASHERWASHER
-
612160-02F12 CONNECTING ROD ASSY.CONNECTING ROD ASSY.
-
712165-27A50 ...PIN...PIN
-
8-112164-02F11-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
8-212164-02F11-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
8-312164-02F11-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
8-412164-02F11-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
9-221111-02F11 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
1009140-22012 NUTNUT
-
1109164-22007 WASHERWASHER
-
11A21114-02F00 WASHER, WAVEWASHER, WAVE
-
1209420-06001 KEYKEY
-
1321112-02F00 GEAR, PRIMARY DRIVE SCISSORSGEAR, PRIMARY DRIVE SCISSORS
-
1408331-31406 CIRCLIPCIRCLIP
-
1509440-07001 SPRINGSPRING
-
1612111-02F11-0F0 PISTONPISTON
-
1712140-02F42 RING SET, PISTONRING SET, PISTON
-
1812151-02F00 PIN, PISTONPIN, PISTON
-
1909381-22002 CIRCLIPCIRCLIP
