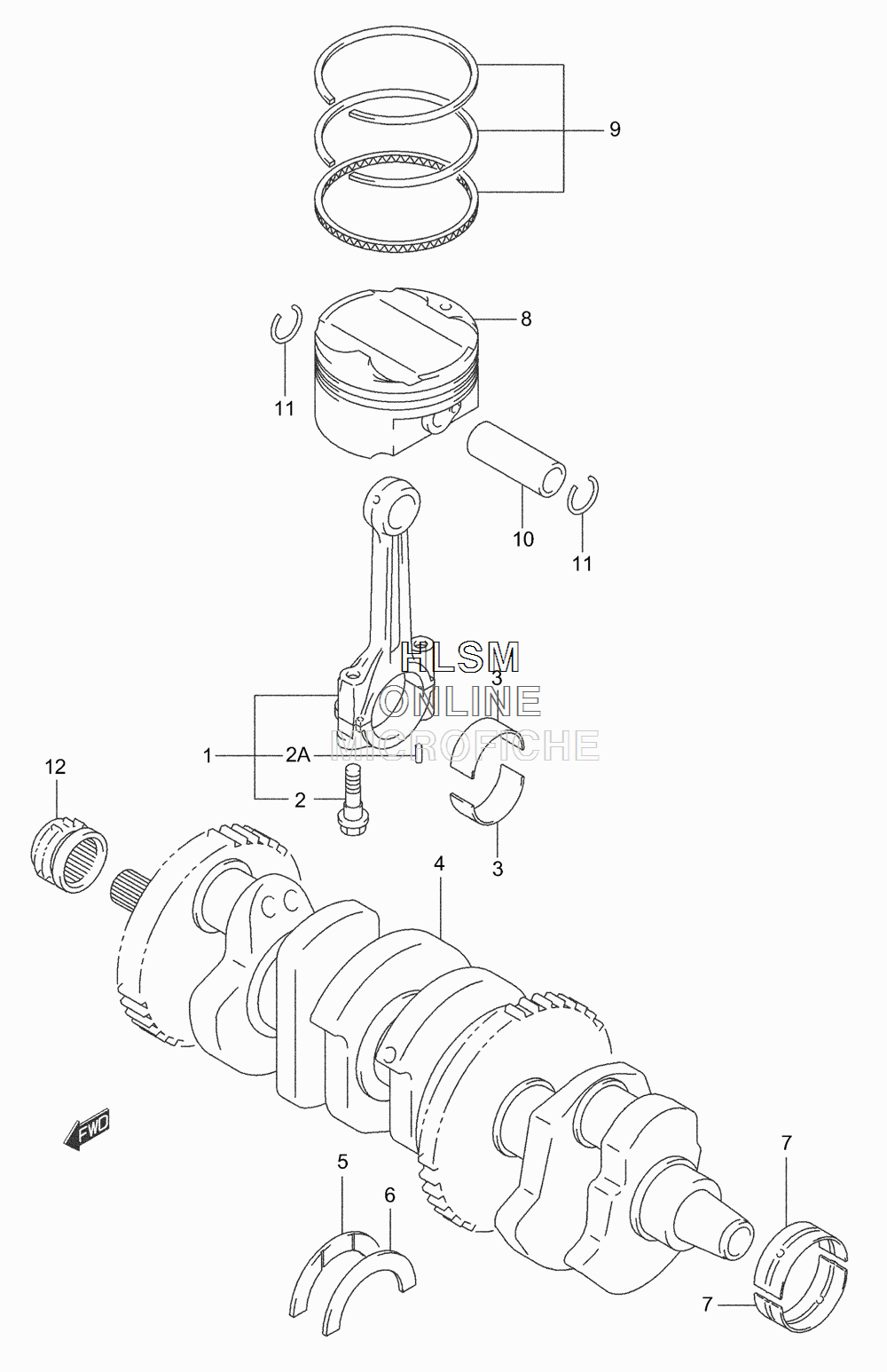

CRANKSHAFT W/ PISTON для Suzuki GSX-1300R K2 - 2002 года выпуска
-
№АртикулНазвание
-
112160-24F02 ROD ASSY, CONNECTING (INCL. 2-2A)ROD ASSY, CONNECTING (INCL. 2-2A)
-
212163-24F00 BOLTBOLT
-
2A12165-27A50 PIN, CONNRODPIN, CONNROD
-
312164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
312164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
312164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
312164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
412000-24820 CRANKSHAFT SET (INCL. 5-6)CRANKSHAFT SET (INCL. 5-6)
-
512228-24F00-0D0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
612228-24F00-0A0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
612228-24F00-0B0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
612228-24F00-0C0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
612228-24F00-0D0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
612228-24F00-0E0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
612228-24F00-0F0 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
712229-24F00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
712229-24F00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
712229-24F00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
712229-24F00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
812111-24F11-0F0 PISTONPISTON
-
912140-24F10 RING SET, PISTONRING SET, PISTON
-
1012151-24F10 PIN, PISTONPIN, PISTON
-
1109381-20004 CIRCLIPCIRCLIP
-
1212731-24F00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
